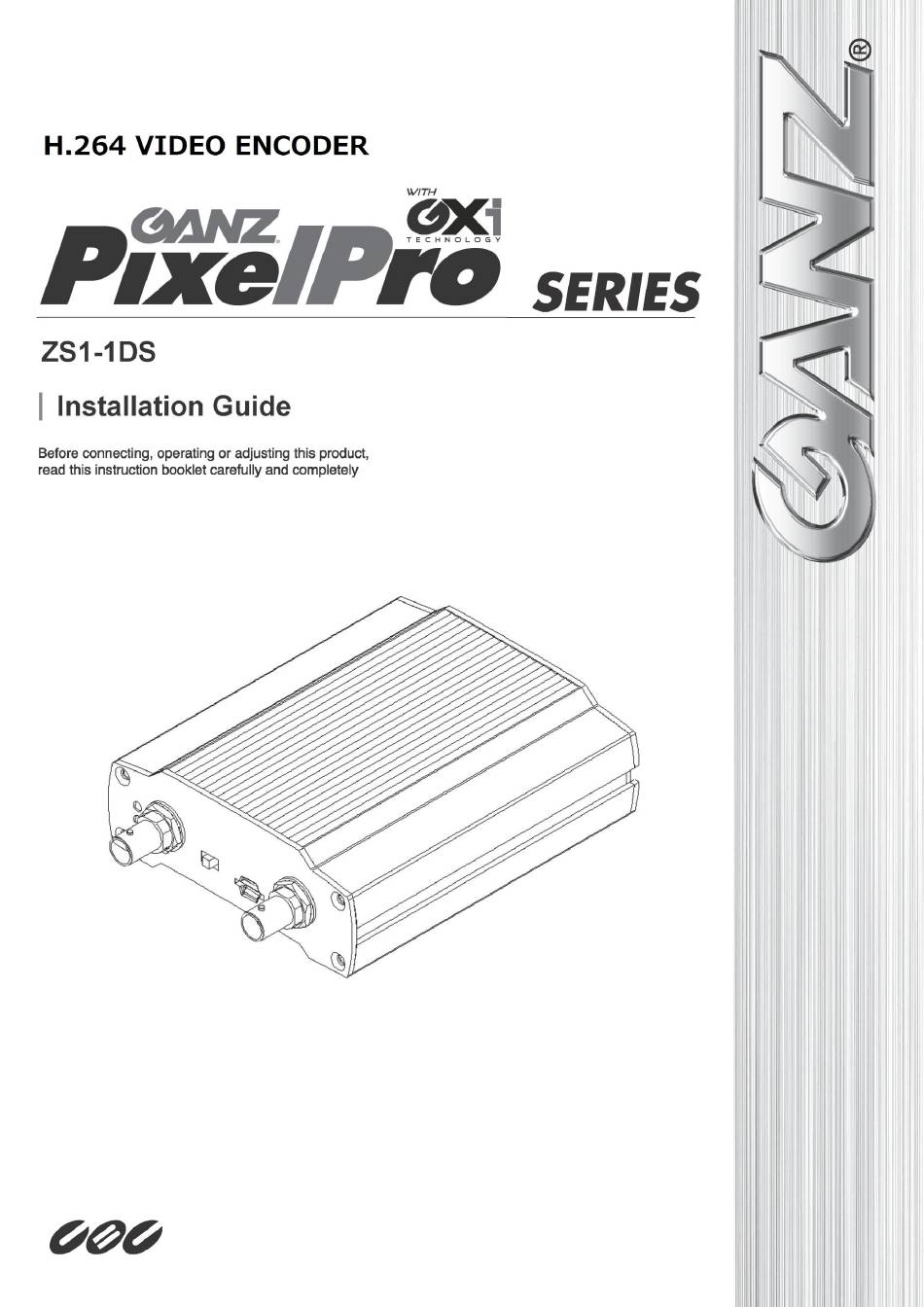

- Page 1 PixelPro GXi Series ZS1-1DS Installation Guide 03-2014-A...
-
Page 2: Precaution
PixelPro GXi Series ZS1-1DS Installation Guide Precaution Please read this manual carefully before installing the unit. Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit. Do not operate the encoder in environments beyond the specified temperature. -
Page 3: Table Of Contents
PixelPro GXi Series ZS1-1DS Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 3.1. Front Panel ......................... 6 3.2. Back Panel .......................... 7 4. INSTALLATION ...................... 8 5. CONNECTIONS ...................... 9 6. -
Page 4: Features
PixelPro GXi Series ZS1-1DS Installation Guide 1. FEATURES Streaming Dual streaming mode (such as different codec/resolution/bit rate and so on.) De-interlacing on DSP Burnt-in text supported Unicast/Multicast supported Video/Audio Video compression: H.264/MJPEG, 25/30FPS@D1(PAL/NTSC) Audio compression: G.711(µLaw) ... -
Page 5: Package Contents
PixelPro GXi Series ZS1-1DS Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Encoder DC power adaptor Mounting brackets 8 Pin terminal blocks Screws and anchor blocks Quick Installation Guide Hex wrench driver Jumper Cap The above contents are subject to change without prior notice. -
Page 6: Part Names
PixelPro GXi Series ZS1-1DS Installation Guide 3. PART NAMES 3.1. Front Panel ○ ○ ○ ⑤ ○ ① System Status LEDs They indicate certain system information. Status: The LED turns on in orange when the encoder is powered on. Data: The LED turns on in green when the video signal comes in with a proper connection. -
Page 7: Back Panel
PixelPro GXi Series ZS1-1DS Installation Guide 3.2. Back Panel ⑩ ⑦ ⑧ ⑨ ⑥ ⑪ ⑥ LAN connector Use the RJ45 LAN connector for 10/100 Base-T Ethernet. (PoE supported) ⑦ DI/DO The encoder supports two channels for each of DI and DO. Refer to the section “エラー! 参照... -
Page 8: Installation
PixelPro GXi Series ZS1-1DS Installation Guide 4. INSTALLATION To wall-mount the encoder, follow this instruction: The encoder has one mounting hole on each side. Mount the device using the included screws and anchor blocks. Refer to the image below. 03-2014-A... -
Page 9: Connections
PixelPro GXi Series ZS1-1DS Installation Guide 5. CONNECTIONS Video connection Connect the camera to the Video input BNC connector on the back panel using 75 ohm video coaxial cable with a BNC connector. Video channel input can be looped to other equipment as CRT monitor through Loop out BNC connector. - Page 10 There are two sensor interface types – Voltage Type and Relay Type. The interface type can be controlled by web user interface. Refer to the provided “PixelPro GXi series Web Page User's Manual” for more details. Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Before connecting sensors, check driving voltage and output signal type of the sensor.
- Page 11 PixelPro GXi Series ZS1-1DS Installation Guide Alarm Output (DO) Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating. Caution Internal Device DO 1 Device DO 2 Relay Type RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image.
-
Page 12: Configuration
PixelPro GXi Series ZS1-1DS Installation Guide 6. CONFIGURATION 6.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 13: Custom Ip Environment
PixelPro GXi Series ZS1-1DS Installation Guide 6.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 14: View Video On Web Page
PixelPro GXi Series ZS1-1DS Installation Guide 6.2. View video on web page Type the proper IP address to view the live streaming images through a web browser. The default username and password is root / pass. 6.2.1. ActiveX Installation When the browser asks to install the AxUMF software, click “Install” to proceed. -
Page 15: Access Through Ipadmin Tool
PixelPro GXi Series ZS1-1DS Installation Guide 6.2.2. Access through IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 16: Reset
PixelPro GXi Series ZS1-1DS Installation Guide 6.3. Reset While the device is in use, press the Reset button. Wait for the system to reboot. Please do not hold for more than 2 seconds. Otherwise, the camera may be switched to its Factory Default settings. -
Page 17: Safe Mode
PixelPro GXi Series ZS1-1DS Installation Guide 6.5. Safe Mode What is Safe Mode? Your IP camera or encoder could encounter an unexpected occasion such as broken firmware file or uncompleted loading of firmware file during system booting. To restore the device from the occasions, the device provides the emergency firmware as a factory default. - Page 18 PixelPro GXi Series ZS1-1DS Installation Guide There is another method to update firmware, which is using IPAdminTool. Please refer to ‘IPAdminTool User’s Manual.pdf’ for the detailed procedure. Note If your device is still at safe mode after trying to update firmware, please contact your local agency to get further assistance.
-
Page 19: Appendix (A): Specifications
PixelPro GXi Series ZS1-1DS Installation Guide APPENDIX (A): SPECIFICATIONS Summary Video Input 1 channel Output 1 channel (Loop Out, BNC connector) Compression Format H.264, MJPEG Selectable per Stream Number of Streams Dual Stream, Configurable Resolution D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA... -
Page 20: Environment Condition
PixelPro GXi Series ZS1-1DS Installation Guide Environment Condition Operating Temperature 0 ºC ~ 50 ºC ( 32ºF ~ 122 ºF) Operating Humidity Up to 85% RH Mechanical Condition Dimension 103.4(W)mm x 37.7(H) mmx 140.7(D) mm Weight (Approx) 430g * The specifications above are subject to change without any prior notice. -
Page 21: Appendix (B): Power Over Ethernet
PixelPro GXi Series ZS1-1DS Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. IEEE 802.3af allows for two power options for Category 5 cables. -
Page 22: Appendix (C): Dimensions
PixelPro GXi Series ZS1-1DS Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 03-2014-A... -
Page 23: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZS1-1DS Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec... -
Page 24: Revision History
PixelPro GXi Series ZS1-1DS Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 11/12/2013 Created. 03-2014-A 03/31/2014 Correct explanation for PoE 03-2014-A...
