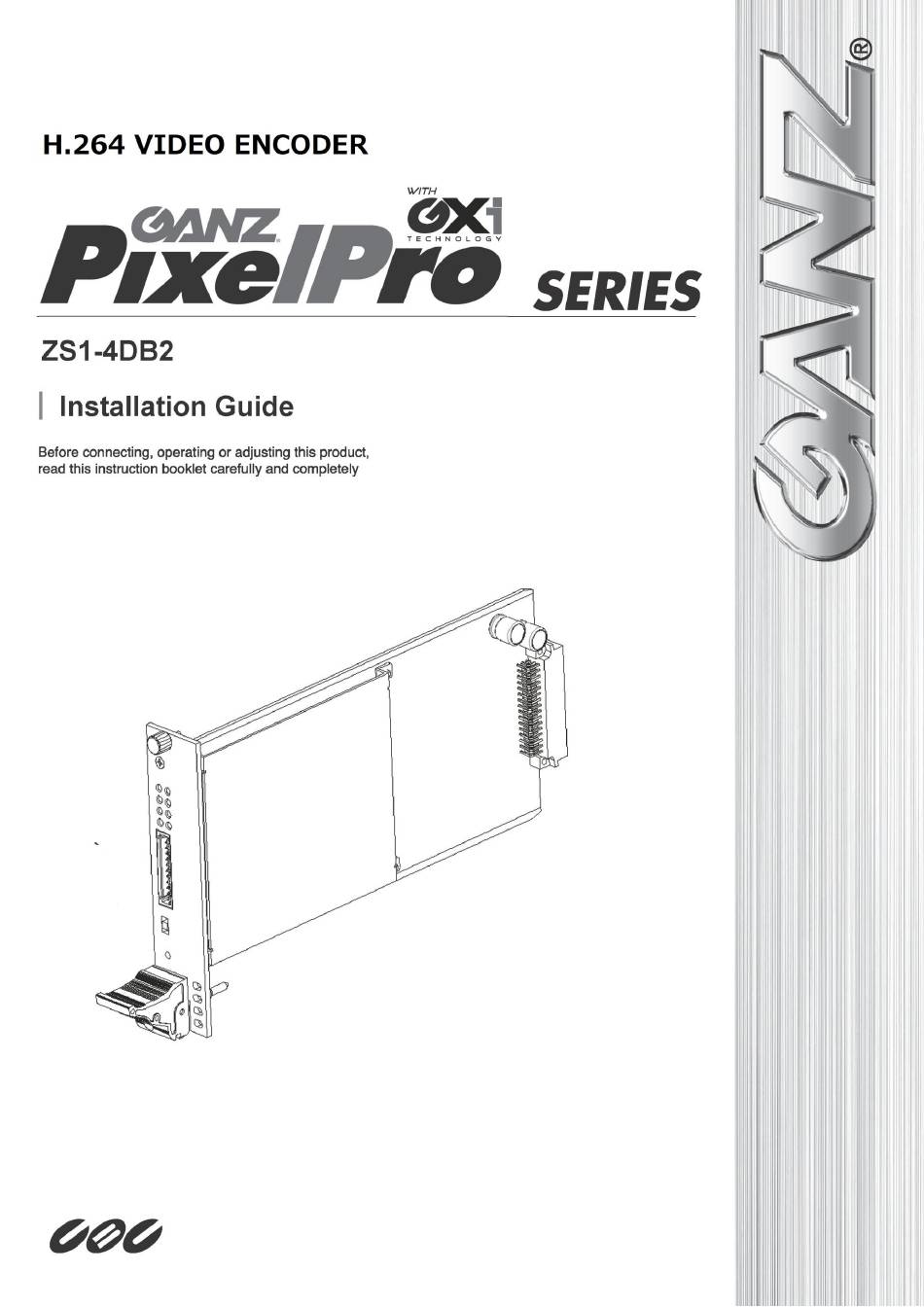

Ganz PixelPro GXi Series Installation Manual
Hide thumbs
Also See for PixelPro GXi Series:
- User manual (110 pages) ,
- Installation manual (24 pages) ,
- User manual (96 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Ganz PixelPro GXi Series
Summary of Contents for Ganz PixelPro GXi Series
-
Page 2: Precaution
Precaution Please read this manual carefully before installing the unit. Never disassemble the blade. Unauthorized disassembly may cause equipment failure or damage to the unit. Please do not install the blade and the rack in a place exposed to an excessive heat source. -
Page 3: Table Of Contents
PixelPro GXi Series ZS1-4DB2 Installation Guide Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 3.1. Blade ........................... 6 3.2. Sub-rack ..........................7 4. INSTALLATION ...................... 8 4.1.Connectors .......................... 8 4.2.Ejecting and inserting blades .................... -
Page 4: Features
PixelPro GXi Series ZS1-4DB2 Installation Guide 1. FEATURES Main Feature Compatible with 19’’/4U Aluminum Sub-Rack chassis, which supports up to 10 units of 4 channel encoder blades Identification of each sub-rack, each blade card, and each module unit (for easy and... -
Page 5: Package Contents
PixelPro GXi Series ZS1-4DB2 Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Encoder Blade 8 Pin terminal block 10 Pin terminal block 12 Pin terminal block Jumper Cap x 4ea The above contents are subject to change without prior notice. -
Page 6: Part Names
PixelPro GXi Series ZS1-4DB2 Installation Guide 3. PART NAMES 3.1. Blade ① ② ③ ○ ○ * Models herein and their appearance are subject to change without any prior ○ notice. ① Screw This is used to fasten the blade to the rack chassis. -
Page 7: Sub-Rack
PixelPro GXi Series ZS1-4DB2 Installation Guide ⑤ Reset Reboot the device system or reset the device to its Factory default settings. Refer to the section “5.3 Reset” and ”5.4 Factory Default” for more specific information. ⑥ Inject/Eject Handle This is used for removing the blade from the rack. -
Page 8: Installation
PixelPro GXi Series ZS1-4DB2 Installation Guide 4. INSTALLATION 4.1.Connectors Video connection Connect the camera to the video input connectors on the back panel using 75 ohm video coaxial cables with a BNC connector. Each of the connected video input channel can be looped to other equipments (e.g. - Page 9 PixelPro GXi Series ZS1-4DB2 Installation Guide Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Signal Description Connect (-) cable of electronic power source for sensors to this port as shown in the circuit above. D1~D4 Connect output of sensors for each port as shown in the circuit above.
- Page 10 PixelPro GXi Series ZS1-4DB2 Installation Guide Device Internal DO 1 Module Device DO 2 Module Device DO 3 Module Device DO 4 Module Relay Type 09-2014-A...
-
Page 11: Ejecting And Inserting Blades
PixelPro GXi Series ZS1-4DB2 Installation Guide RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image. 485 Device RS-485 Connection 4.2.Ejecting and inserting blades 4.2.1. Ejecting a blade screw screw 1. Unscrew the screws. 2. Grasp the inject/eject handle of the blade and push it down as shown in above figure. -
Page 12: Configuration
PixelPro GXi Series ZS1-4DB2 Installation Guide 5. CONFIGURATION 5.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device. -
Page 13: Custom Ip Environment
PixelPro GXi Series ZS1-4DB2 Installation Guide 5.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. -
Page 14: View Video On Web Page
PixelPro GXi Series ZS1-4DB2 Installation Guide 5.2. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. -
Page 15: Access Through Ipadmin Tool
PixelPro GXi Series ZS1-4DB2 Installation Guide 5.2.1. Access through IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. -
Page 16: Reset
PixelPro GXi Series ZS1-4DB2 Installation Guide 5.3. Reset While the device is in use, press the Reset button. Wait for the system to reboot. 5.4. Factory Default 1. Press reset button and hold. 2. Release the Reset button after 5 seconds until LED blinks. -
Page 17: Appendix (A): Specifications
PixelPro GXi Series ZS1-4DB2 Installation Guide APPENDIX (A): SPECIFICATIONS Summary Video Input 4 channel Output Compression Format H.264, MJPEG Selectable per Stream Number of Streams Dual Stream for each channel, Configurable Resolution D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA Compression FPS... -
Page 18: Environment Condition
PixelPro GXi Series ZS1-4DB2 Installation Guide Environment Condition Operating Temperature 0 ºC ~ 50 ºC ( 32ºF ~ 122 ºF) Operating Humidity Up to 85% RH Mechanical Condition Dimension 268(W) x 128(H) mm Weight (Approx) 240g 09-2014-A... -
Page 19: Appendix (B): Dimensions
PixelPro GXi Series ZS1-4DB2 Installation Guide APPENDIX (B): DIMENSIONS (Unit: mm) 09-2014-A... -
Page 20: Appendix (D): Hexadecimal-Decimal Conversion Table
PixelPro GXi Series ZS1-4DB2 Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec... -
Page 21: Revision History
PixelPro GXi Series ZS1-4DB2 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 07/12/2013 Created 03-2014-A 03/26/2013 Minor modification 09-2014-A 09/04/2013 Correct explanation for VCA license 09-2014-A...
