Ganz PixelPro GXi Series Installation Manual

H.264 video encoder
Hide thumbs Also See for PixelPro GXi Series:
Table of Contents

Advertisement

Quick Links

Download this manual
10-2013-A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PixelPro GXi Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ganz PixelPro GXi Series

Summary of Contents for Ganz PixelPro GXi Series

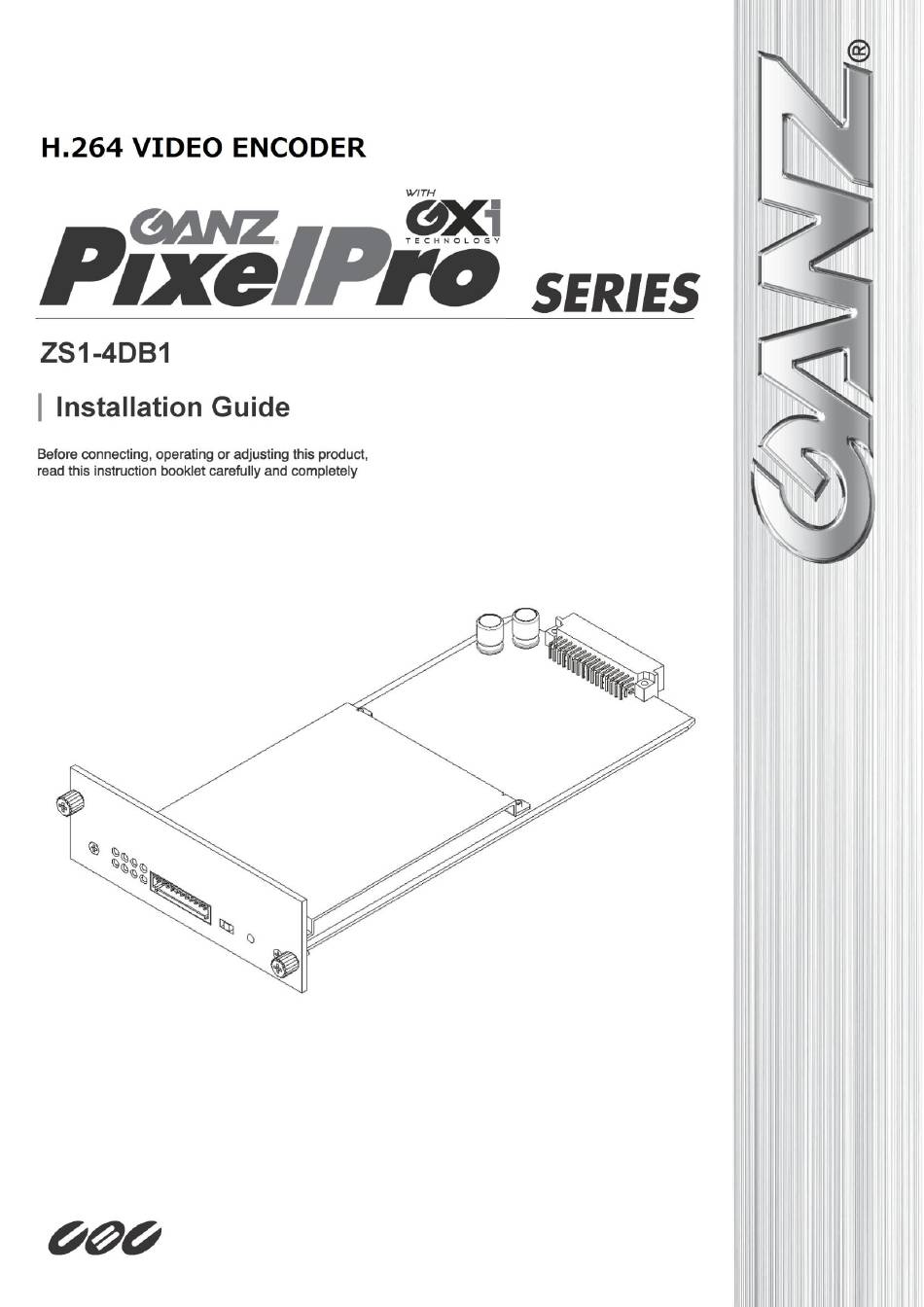

  • Page 1 10-2013-A...

  • Page 2: Precaution

    Precaution  Please read this manual carefully before installing the unit.  Never disassemble the blade. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the blade and the rack in a place exposed to an excessive heat source.

  • Page 3: Table Of Contents

    Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 3.1. Blade ........................... 6 3.2. Sub-rack ..........................7 4. INSTALLATION ...................... 8 4.1.Connectors .......................... 8 4.2.Inserting and ejecting a blade ................... 10 4.2.1.

  • Page 4: Features

    PixelPro GXi Series ZS1-4DB1 Installation Guide 1. FEATURES Main Feature  Compatible with 19’’/1U Aluminum Sub-Rack chassis, which supports up to 3 units of 4 channel encoder blades  Identification of each sub-rack, each blade card, and each module unit (for easy...

  • Page 5: Package Contents

    PixelPro GXi Series ZS1-4DB1 Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Encoder Blade 8 Pin terminal block 10 Pin terminal block 12 Pin terminal block Jumper Cap x 4 ea The above contents are subject to change without prior notice.

  • Page 6: Part Names

    PixelPro GXi Series ZS1-4DB1 Installation Guide 3. PART NAMES 3.1. Blade ① ② ③ ○ ○ * Models herein and their appearance are subject to change without any prior notice. ① Screw This is used to fasten the blade to the rack chassis.

  • Page 7: Sub-Rack

    ⑤ Reset Reboot the device system or reset the device to its Factory default settings. Refer to the section “5.3. Reset” for more specific information. 3.2. Sub-rack The blade is designed for mounting in the sub rack chassis, which provides power and network connectivity.

  • Page 8: Installation

    PixelPro GXi Series ZS1-4DB1 Installation Guide 4. INSTALLATION 4.1.Connectors Video connection Connect the camera to the video input connectors on the back panel using 75 ohm video coaxial cables with a BNC connector. Each of the connected video input channel can be looped to other equipment (e.g.
  • Page 9 PixelPro GXi Series ZS1-4DB1 Installation Guide Input voltage range: 0VDC minimum to 5VDC maximum, Max 50mA Signal Description Connect (-) cable of electronic power source for sensors to this port as shown in the circuit above. D1~D4 Connect output of sensors for each port as shown in the circuit above.

  • Page 10: Inserting And Ejecting A Blade

    PixelPro GXi Series ZS1-4DB1 Installation Guide 4.2.Inserting and ejecting a blade Lock Unlock Lock Unlock Ejecting a blade Inserting a blade 4.2.1. Inserting a blade *Remove a cover plate from the slot in which a blade will be mounted. This is done by unfastening the screws with a screw driver on each side of the cover.

  • Page 11: Configuration

    PixelPro GXi Series ZS1-4DB1 Installation Guide 5. CONFIGURATION 5.1. Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. You can find the available IP address from the MAC address of your device. Please make sure the device and your PC are on the same network segment before running the installation.
  • Page 12 PixelPro GXi Series ZS1-4DB1 Installation Guide To use the IPAdminTool and view the live video on a web page: 1. Start IPAdminTool. Names and info of currently activated devices appear as a list. 2. Right-click on the desired device and select Web view.

  • Page 13: View Video Using Ip Address

    PixelPro GXi Series ZS1-4DB1 Installation Guide 5.2.2. View video using IP address View the live video on a web page using your IP device and its IP address. To have the correct IP address ready and use it on a web page: 1.

  • Page 14: Appendix (A): Specifications

    APPENDIX (A): SPECIFICATIONS Summary Video Input 4 channel Output Compression Format H.264, MJPEG Selectable per Stream Number of Streams Dual Stream for each channel, Configurable Resolution D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA Compression FPS 25 / 30 fps@D1 (PAL/NTSC) Deinterlacing Support (DSP) Motion Detection...

  • Page 15: Environment Condition

    PixelPro GXi Series ZS1-4DB1 Installation Guide Environment Condition Operating Temperature 0˚C ~ 50˚C (32˚F ~ 122˚F) Operating Humidity Up to 85% RH Mechanical Condition Dimension 125(W) x 42(H) x 241(D) mm Weight (Approx) 240g 10-2013-A...

  • Page 16: Appendix (B): Dimensions

    PixelPro GXi Series ZS1-4DB1 Installation Guide APPENDIX (B): DIMENSIONS (Unit: mm) 10-2013-A...

  • Page 17: Appendix (C): Hexadecimal-Decimal Conversion Table

    PixelPro GXi Series ZS1-4DB1 Installation Guide APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec...

  • Page 18: Revision History

    PixelPro GXi Series ZS1-4DB1 Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 11-2013-A 11/12/2013 Created. 03-2014-A 03/26/2013 Minor modification 09-2014-A 09/04/2013 Correct explanation for VCA license 10-2013-A...
