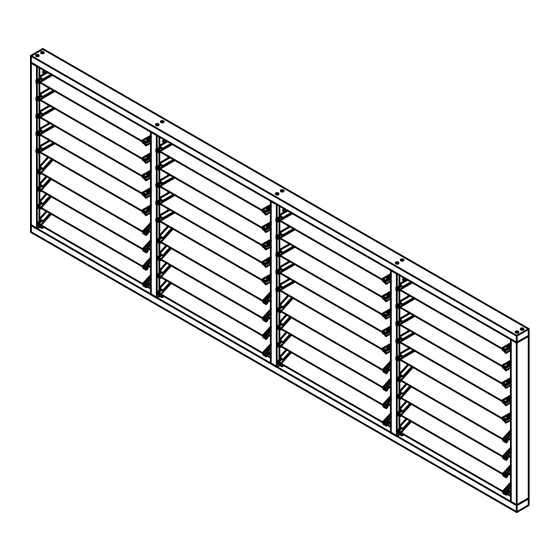

- Page 1 18.05.22 Utopia Louvre Panels Installation Manual 2m Utopia Louvre Panel H4-GS2X2LP 3m Utopia Louvre Panel H4-GS3X3LP Unique Product Reference Number:...
- Page 2 Pack Contents H4-GS2X2LP H4-GS3X3LP 1860 35x70X830.DHSP-PT 35x70X1860.DHSP-PT 2860 35x70X2860.DHSP-PT 35x70X830.DHSP-PT 12x12X845.DHSP-PT 12x12X639.DHSP-PT 8x98x630.DHSP-PT Louvre Slat Profile 8x98x835.DHSP-PT Louvre Slat Profile PARTS LIST - H4-GS2X2LP PART NUMBER THK_mm WIDTH_mm MATERIAL DESCRIPTION LNG_mm GAZ-LOUVER RAIL PAIR Aluminum_Generic 12x12X845.DHSP-PT DHSP-PT 35x70X1860.DHSP-PT 1860 DHSP-PT 8x98x835.DHSP-PT...
- Page 3 Assembly Steps Assemble frames using 2x 70mm screws for each corner using the spacing below. 70mm Screws 35x70X1860.DHSP-PT 35x70X2860.DHSP-PT 2860 1860 35x70X830.DHSP-PT 35x70X830.DHSP-PT You have been provided with 2 or 4 pairs of louvre mechanisms, depending on your Gazebo. Notice that in each pair there is only one rail with handles.
- Page 4 Assembly Steps Attach louvre panels to the gazebo on top of your bottom solid panel using the same method used to secure the bottom panel. But this time also using 70mm screws going down through the bottom of your louvre panel into the top of your bottom panel.
