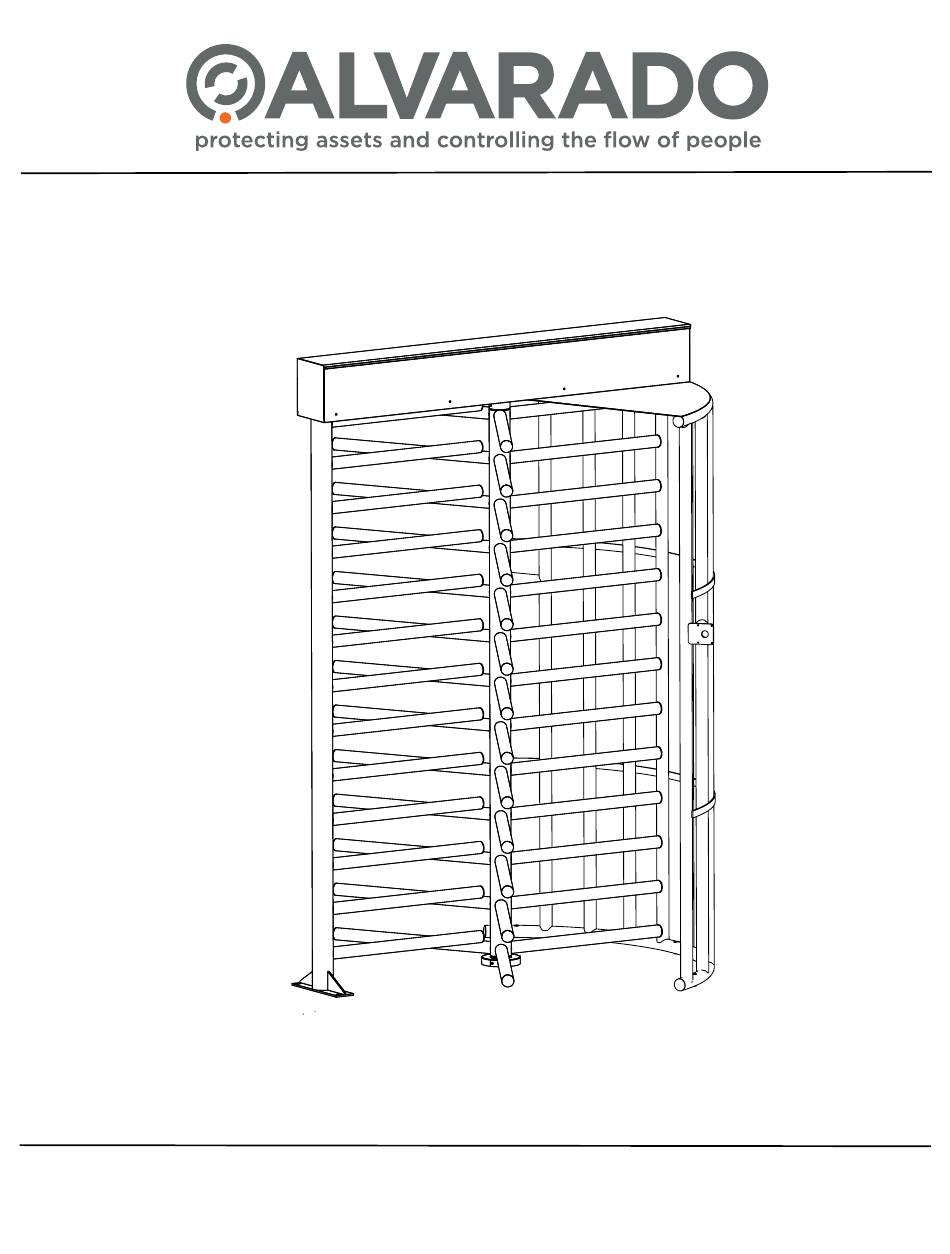

- Page 1 FULL HEIGHT MAXIMUM SECURITY TURNSTILE Installation and Operation Instructions Alvarado Manufacturing Company, Inc. 12660 Colony Street, Chino, CA 91710 Phone: (909) 591-8431 Fax: (909) 628-1403 support@alvaradomfg.com www.alvaradomfg.com PUD1208R6-2...
-
Page 2: Table Of Contents
MST Installation Instructions Contents Contents..................................2 Safety Precautions................................3 Safety Icons..................................3 Compliance and Standards............................. 4 Installation Tools................................4 Parts List..................................5 Before You Begin................................6 Common Terms................................6 Installation Instructions..............................7 Installation Locations. -
Page 3: Safety Precautions
De plus, bien former les nouveaux utilisateurs à leur intégration au système. • NE PAS utiliser des pièces ne provenant pas du Alvarado pour réparer un tourniquet endommagé. • Suivez strictement les instructions de manutention pour déplacer ou soulever le tourniquet lors de l'installation •... -
Page 4: Compliance And Standards
MST Installation Instructions Compliance and Standards This page defines the product labels required for compliance with UL Electrical Testing Laboratory and International CE standards. International CE standards: UL 294, UL 325 Testing Laboratory Standards: a. Label (2) the Fuse Specification. a. -
Page 5: Parts List
Alvarado. Alvarado full height turnstiles share common components across models. The parts list below is NOTE for the MST-3 and MST-6X models only. Reference appendix A-D to see alternate components used on other models. MST Illustrated Parts List... -
Page 6: Before You Begin
Before You Begin This manual focuses on the installation of Alvarado full height turnstiles, using the MST and MSTX as the basis of instruction. Most steps are identical across models. Differences in components or installation process are called out, as applicable. -
Page 7: Installation Instructions
Install the turnstile on a 6' x 6' (min.) level concrete slab. The slab must be a minimum of 4" thickness. The turnstile may only be installed on concrete. Do not install the turnstile on asphalt. DIMENSIONS SHOWN ARE FOR MST-3 and MST-6X MODELS. SEE APPENDIX A-D FOR OTHER MODELS. Installation Locations Fig. -
Page 8: Bottom Bearing Plate Installation
MST Installation Instructions Bottom Bearing Plate Installation Place the bottom bearing plate over the turnstile and roto intersecting lines. Mark the center location of all four anchor holes for the bottom bearing plate (Figure 3). Set aside the Fig. 3 bottom bearing plate. -
Page 9: Yoke Installation
MST Installation Instructions Yoke Installation NOTES Do not use a single yoke as a template when multiple turnstiles are installed, as yoke dimensions may vary slightly from yoke to yoke. Fig. 7 STEPS AND DIMENSIONS SHOWN NOTE Yoke Center ARE FOR MST MODELS. SEE APPENDIX A-D FOR OTHER MODELS. -
Page 10: Ov Installation
MST Installation Instructions OV Installation STEPS AND DIMENSIONS SHOWN NOTE ARE FOR MST MODELS. SEE APPENDIX A-D FOR OTHER MODELS. Reconfirm the centerline location for the OV (Figure 11). While holding the OV in place, use a pencil and mark the Fig. -
Page 11: Top Channel Installation
MST Installation Instructions Roto Installation (Cont) Apply grease, as instructed in the roto Installation note on the previous page. Lower the roto, bottom bearing first, into the bottom bearing plate (Figure 16). Wipe away any excess grease. When complete, refer to Figure 17 for correct orientation. Fig. - Page 12 MST Installation Instructions Top Channel Installation (Cont) With the help of two assistants, lift the top channel up and over roto, yoke and OV (Figure 19). DANGER Be sure that the feeder wire and/or any access Fig. 19 control pad wiring is out of the way and is not caught between the top channel and the yoke, roto or OV, as this may damage the wires.
-
Page 13: Guard Plate Installation
MST Installation Instructions Top Channel Installation (Cont) Fig. 21 ½" Nut and Lock Washer ½" Nut and Lock Washer ½" x 1½" Hex Head Bolt ½" x 1½" Hex Head Bolt The top channel mounting holes are located at each end of the top channel (Figure 21). A. -
Page 14: Bearing Cover Installation
MST Installation Instructions Bearing Cover Installation NOTE For illustration and clarity purposes only, the bearing cover illustrations are shown without the surrounding sections. Fig. 23 Top Bearing Cover Installation Top Bearing Place the two halves of the top bearing cover over Covers the top bearing and align the mounting holes. -
Page 15: Final Mechanical Installation Steps
MST Installation Instructions Final Mechanical Installation Steps NOTE Be sure the guard plate and the yoke are aligned properly and flush before performing the following step(s). Be sure that the turnstile is level before performing the following step(s). If it is not level, use shims as needed. Ensure that all mounting hardware is tightened. -
Page 16: Conduit Instructions
MST Installation Instructions Conduit Instructions For electric models, flex conduit can be run through the vertical tube of the OV. Also, conduit may be attached directly to the top channel cover. After completing primary power and access control wiring, plug all unused holes in the top channel. -
Page 17: Electrical Wiring Instructions
NOTE In the event the transformer needs to be replaced, it must be replaced with Alvarado P/N 10-3008A (110V) or 10-3003F (220V) as specified in UL File BP20972, Projects 4787469780, 4787461699. -
Page 18: Turnstile Control Board Layout
MST Installation Instructions Turnstile Control Board Layout Fig. 29 CCW CW X 5 R G Y X 5 R G Y SW4 Layout Fig. 29A LEGEND Item Name Clockwise Fail Lock Clockwise Fail Safe CCW Test Activation Switch (SW7) Counterclockwise Fail Lock Counterclockwise Fail Safe Access Control Activation - CCW Timer - See Chart to the Right... -
Page 19: Terminal Descriptions
18mA This feature can be used to output a “count” signal to Count an external system such as Alvarado’s GateWatch or to provide feedback to the access control system that a turnstile rotation has taken place. Confirmation signal upon turnstile rotation -... - Page 20 - Clockwise Direction This feature can be used to output a “count” signal to Count an external system such as Alvarado’s GateWatch or to provide feedback to the access control system that a turnstile rotation has taken place. Confirmation signal upon turnstile rotation -...
-
Page 21: Sw4 Dip Switch Descriptions
MST Installation Instructions SW4 DIP Switch Descriptions SW4 Layout (Figure 29A) LEFT / OFF Switch Switch RIGHT / ON Position Position Sets solenoid control for the Clockwise direction in fail lock CWFL Sets solenoid control for the Clockwise direction in fail configuration. -
Page 22: User Activation And Passage Instructions
120° rotation. Taking long steps could cause the trailing arm section to strike your heels. Heel and arm guards are an option that can be purchased from Alvarado. Step completely out of the turnstile. CAUTION... -
Page 23: Post-Installation Checklist
Top channel cover is in place. Finish Stainless Steel (uncoated) – wipe down the entire turnstile with clean water or use the Alvarado recommended commercial products (see Cleaning and Maintenance Section). Stainless Steel (units with optional coating) – wipe down entire turnstile with clean water. -
Page 24: Troubleshooting
The steps contained in this Troubleshooting section are the most common issues that may arise during the operation of the unit. If the provided steps do not resolve the issue, please contact Alvarado Technical Support (909-591-8431). The built-in key locks provide override functionality. Verify that locks are not in the override position before performing any troubleshooting procedures. - Page 25 MST Installation Instructions Troubleshooting (Cont) Fail-safe direction will not unlock Power Issues Cause Solution Reference Green LED is OFF 1. Verify that the power switch is in the ON position and that primary power is Fig. 21A - Power switch provided to the turnstile.
- Page 26 MST Installation Instructions Troubleshooting (Cont) Fail-safe direction will not re-lock (cont) Electronic Issues Cause Solution Reference Optical sensors are dirty Use an alcohol-moistened Q-tip to clean the optical sensor(s) and retest. Fig. 32 (M) Optical sensors misaligned Verify that cam flag passes freely through the optical sensor assembly. Fig.
- Page 27 MST Installation Instructions Troubleshooting (Cont) Fail-lock direction will not re-lock Power Issues Cause Solution Reference Green LED is OFF 1. Verify that the power switch is in the ON position and that primary power is Fig. 21A - Power provided to the turnstile. switch is located on the J-box inside the Top Channel.
- Page 28 MST Installation Instructions Troubleshooting (Cont) Self-Centering Adjustment Fig. 33 4.50”* Centering Shoe Tension Springs 9/16” Wrench Back Plate Tension Spring Lock Bolt Back Plate Lock Nut Lock Nut Lock Bolt 9/16” Socket and Socket Wrench Dimension shown with Roto in the “home” position (no-load on tension springs). Tools: 9/16”...
-
Page 29: Cleaning And Maintenance
MST Installation Instructions Cleaning and Maintenance The frequency of interior maintenance will depend on how often the turnstile is used, the type of personnel using the turnstile and the environment. Installed turnstiles should be inspected once during the first 30 days after installation. Thereafter, follow the maintenance schedule on the following pages. - Page 30 Rusted surfaces and even damaged pitted surfaces can generally be cleaned with the MAAS product but highly damaged areas may require chemical passivation. To chemically passivate stainless steel, Alvarado recommends the use of a citric acid product, CitriSurf2310, available from Stellar Solutions (www.citrisurf.com). This product is especially formulated to clean and passivate stainless steel and can be used in the field.
-
Page 31: Lubrication
DuPont Teflon Non-Stick Dry-Film Lubricant lubricant with a tube Non-Stick extension applicator. Dry-Film NOTE: Use only Alvarado springs and only the springs designated for the Lubricant location and use purpose. Turnstile springs are not interchangeable and should be used in designated locations only. - Page 32 MST Installation Instructions Lubrication (Cont) Fig. 35 Springs (Figure 35) Lubricate spring contact points with DuPont Teflon Non- Stick Dry-Film Lubricant. Place lubricant on spring body by adding 1 drop on contact points. Lock Arm Return Spring Solenoid Spring Fig. 36 Main Cam and Upper Shaft Bearing (Figure 36) Lubricate the grease fitting on the upper shaft bearing using the recommended grease and a grease gun.
-
Page 33: Appendix A - Cpst Installation
CPST Installation Instructions Appendix A - CPST Installation These instructions are for installing the yoke section of the CLST. When complete, please refer back to the "OV Installation" section. CPST Illustrated Parts List Yoke Roto (Qty 1) (Qty 1) (Qty 1) Yoke Mounting Channel Channel Mounting Screws (Qty 8) -
Page 34: Yoke Installation
CPST Installation Instructions Yoke Installation Determine the installation location for the yoke. Identify the threaded aluminum block at the top of each section. (Figure A1). Fig. A2 Push the two sections together (Figure A2). Threaded NOTE Aluminum Block Prior to drilling the anchor bolt holes, use a tape measure and measure the distance from the bottom bearing plate center to the outer mounting holes on the two yoke sections (Figure A1). - Page 35 CPST Installation Instructions Yoke Installation (Cont) Yoke Installation (Cont) Using a ⅝" concrete drill bit, drill an anchor hole 3" in Using a " concrete drill bit, drill an anchor hole 3" in depth (Figure A6). Repeat this step for the remaining depth (Figure A6).
-
Page 36: Appendix B - Clst Installation
CLST Installation Instructions Appendix B - CLST Installation These instructions are for installing the yoke section of the CLST. When complete, please refer back to the "OV Installation" section. CLST Illustrated Parts List Yoke Roto (Qty 1) (Qty 1) (Qty 1) Yoke Mounting Channel Channel Mounting Screws (Qty 4) -
Page 37: Appendix C - Fmst Installation
FMST Installation Instructions Appendix C - FMST Installation These instructions are for installing the yoke section of the FMST. When complete, please refer back to the "OV Installation" section. FMST Illustrated Parts List Yoke Roto (Qty 1) (Qty 1) (Qty 1) Determine where the turnstile will be installed. -
Page 38: Appendix D - Mst47 Installation
MST47 Installation Instructions Appendix D - MST47 Installation These instructions are for installing the Yoke section of the MST47. When complete, please refer back to the "OV Installation" section. MST47 Illustrated Parts List Yoke Roto (Qty 1) (Qty 1) (Qty 1) Determine where the turnstile will be installed. -
Page 39: Appendix E - Fail-Lock / Fail-Safe Spring And Solenoid Configurations
MST Installation Instructions Appendix E - Fail-lock / Fail-safe Spring and Solenoid Configurations Clockwise Fail-lock / Fail-safe Spring and Solenoid Configurations - Adjustable Solenoid For use with turnstiles that utilize adjustable solenoid mounting positions. NOTE Fail-safe Fail-lock CW Lock CW Lock (Silver) Fail-safe Solenoid... -
Page 40: Counterclockwise
MST Installation Instructions Appendix E - Fail-lock / Fail-safe Spring and Solenoid Configurations (Cont) Counterclockwise Fail-lock / Fail-safe Spring and Solenoid Configurations - Adjustable Solenoid For use with turnstiles that utilize adjustable solenoid mounting positions. NOTE Fail-safe Fail-lock Lock Arm (Red) Lock Arm (Silver) -
Page 41: Appendix E - Fail-Lock / Fail-Safe Spring And Solenoid Configurations (Cont)
MST Installation Instructions Appendix E - Fail-lock / Fail-safe Spring and Solenoid Configurations (Cont) Clockwise Fail-lock / Fail-safe Spring and Solenoid Configurations - Fixed Solenoid For use with turnstiles that utilize fixed solenoid mounting positions. NOTE Fail-safe Fail-lock CW Lock CW Lock (Silver) Fail-safe... -
Page 42: Clockwise
MST Installation Instructions Appendix E - Fail-lock / Fail-safe Spring and Solenoid Configurations (Cont) Clockwise Fail-lock / Fail-safe Spring and Solenoid Configurations - Fixed Solenoid For use with turnstiles that utilize fixed solenoid mounting positions. NOTE Fail-safe Fail-lock Lock Arm (Red) Lock Arm (Silver) -
Page 43: Appendix F - Key Override Adjustable Cam Installation
MST Installation Instructions Appendix F - Key Override Adjustable Cam Installation Clockwise Removal / Installation Fig. 1 Fig. 2 Non-Override Non-Override Slotted KO Non-slotted KO Cam KO Cam KO Cam Mounting Screw Mounting Screw Rotate the key lock to the non-override position; Install slotted KO cam. -
Page 44: Counterclockwise
MST Installation Instructions Appendix F - Key Override Adjustable Cam Installation (Cont) Counterclockwise Removal / Installation Fig. 1 Fig. 2 Non-Override Non-Override Slotted Non-slotted KO Cam KO Cam KO Cam Mounting Screw KO Cam Mounting Screw Rotate the key lock to the non-override position; Install slotted KO cam. -
Page 45: Revision History
MST Installation Instructions Revision History Revision Date Author Description 10/16/2014 A. Flores Added fire alarm system connection to turnstile control board section. 11/6/2015 A. Flores SW4 DIP switch 8 configures OPN inputs as either normally open (N.O.) or normally closed (N.C.). Replaced Tri-Flow Lubricant with DuPont Teflon Non-Stick Dry- Film Lubricant. - Page 46 12660 Colony Street, Chino, CA 91710 Toll Free: (800) 423-4143 Fax: (909) 628-1403 information@alvaradomfg.com www.alvaradomfg.com © 2014 Alvarado Manufacturing Company, Inc. This work may not be reproduced, published or redistributed, in whole or in part, without the express prior written permission of Alvarado.
