Dismantle call push-button module cover
For cleaning or replacement, the call push-button
module cover can be dismantled from the front.
„ Lever up the interlocking cover strips (16) at
the top and bottom using the screwdriver and
remove (Figure 15).

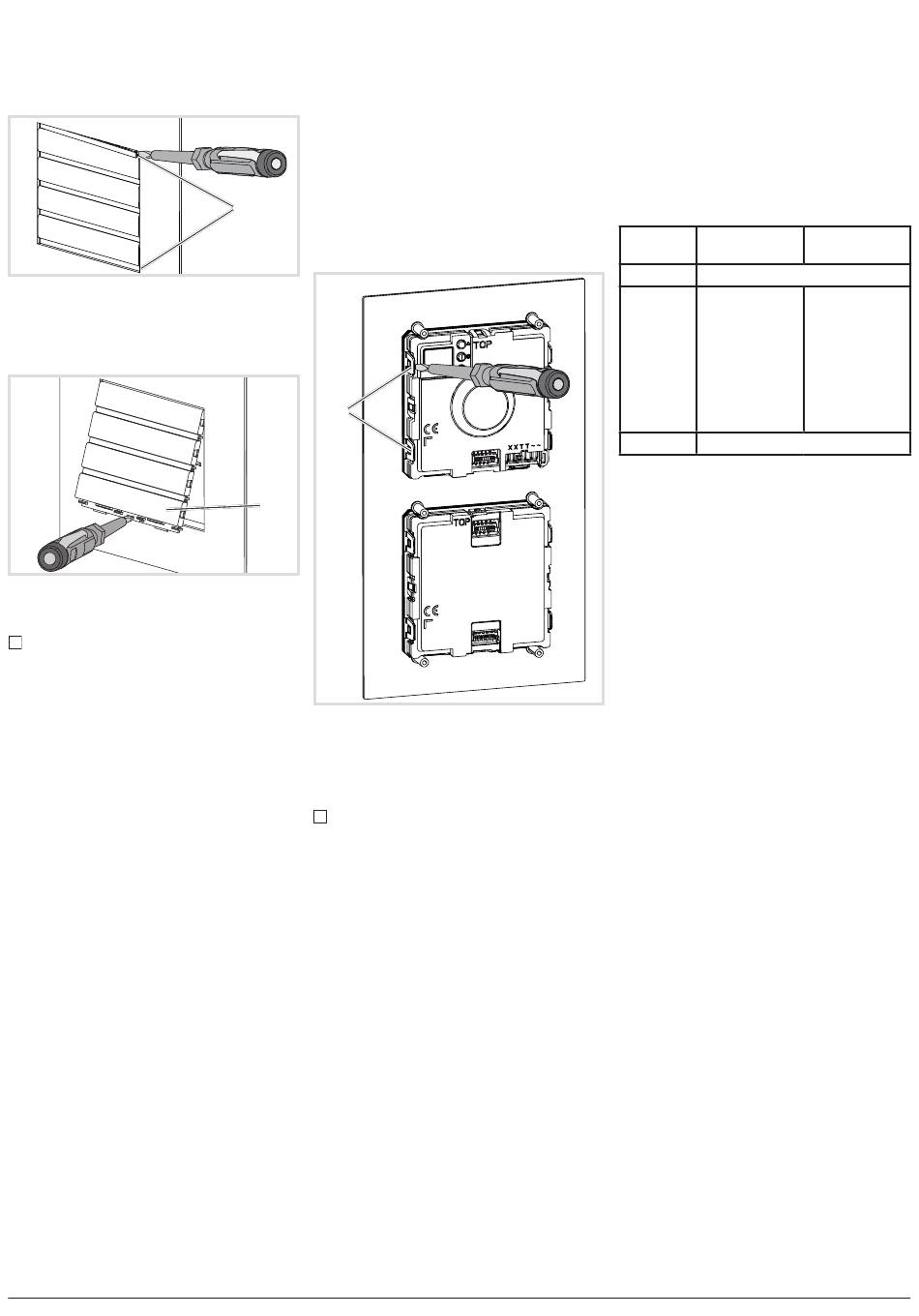

Figure 15: Removing the cover strips
(16) Cover stripes
„ Lift the call push-button module upper part
in the bottom lever opening slightly with the
screwdriver and guide it forwards (16).
Figure 16: Dismantling the call push-button module
cover
(17) Call push-button module cover
i
Defective covers can only be replaced by cov-
ers with the same number of push-buttons.
„ Remove the module to be replaced and install
the new module in reverse order.
5 Elcom Kommunikation GmbH - Gottfried-Leibniz-Str.1 - D-74172 Neckarsulm - www.elcom.de -
Exchange module/insert
Door station is open and activated.
„ Pull off connection terminal block (13) on the
device.
„ Remove the connection cables' connectors of
the module to be exchanged.
„ Remove screws/nuts from mechanic module
mountings and remove module mounting (see
already available installation instruction, e.g.
door station, frame, etc.).
A video insert can now be removed.
(16)
„ To remove the call push-button module, unlatch
the side retaining brackets (18) of the module
mounting by carefully lifting up with a screwdriv-
er (Figure 17).
(18)
(17)
Figure 17: Unlatching module
(18) Retaining brackets module mounting
The module detaches itself from the anchoring.
„ Remove the module to be replaced and install
the new module in reverse order.
i
Re-addressing of the device is required to oper-
ate the door station.
Appendix

Technical data

Operating voltage
Current consumption camera
(Stand-by)
Current consumption camera
(operation)
Current consumption camera
heating (operation)
Current name plate lighting
per call push-button module
Menu Backlighting On
setting
0 Permanent Off
1 ≈ 750 lx
2 .
3 .
4 .
5 .
6 .
7 .
8 .
9 ≈ 60 lx
10 Permanent On
Table 3: Switch-on brightness level name plate-
lighting
Door release contact T/T
potential-free
Door release unlocking time
Camera aperture angle
horiz./vertical
Camera aperture angle swivelling range
horizontal/vertical
Camera resolution
Recommended camera installation
height
Hexagon 1.5 mm camera
locating screw
Degree of protection
Degree of protection
(degree of impact resistance)
Relative humidity 0 ... 65 % (no condensation)
Operating temperature
Switch on temperature camera
heating
Storage/transport temperature
Connecting terminals
for conductor diameter
Dimensions:
Call push-button button small
Name plate small
Width of name plate insert small
Call push-button button medium
Name plate medium
Width of name plate insert medium
Call push-button button large
Name plate large
Width of name plate insert large

Warranty

We reserve the right to realise technical and formal
changes to the product in the interest of technical
progress.
Our products are under guarantee within the scope
of the statutory provisions.
In case of service issues, please contact your
systems' engineer
22 ... 24 V=
ca. 8 mA
max. 240 mA
100 mA
45 mA
Backlighting Off
≈ 1600 lx
.
.
.
.
.
.
.
≈ 110 lx
max. 24 V/1 A
1 ... 10 s
82°/58°
42.5°
500 x 582 px
1.5 m
M2 x 10 mm
IP 44
IK07
-20 °C ... +55 °C
ca. 20 °C
-30 °C ... +80 °C
0.5 ... 0.8 mm
75.8 x 14.5 mm
72.1 x 12 mm
max. 0.5 mm
75.8 x 32.6 mm
72.1 x 30.1 mm
max. 0.5 mm
75.8 x 75.8 mm
72.1 x 66.3 mm
max. 0.3 mm
6LE000741A - 06/2015
