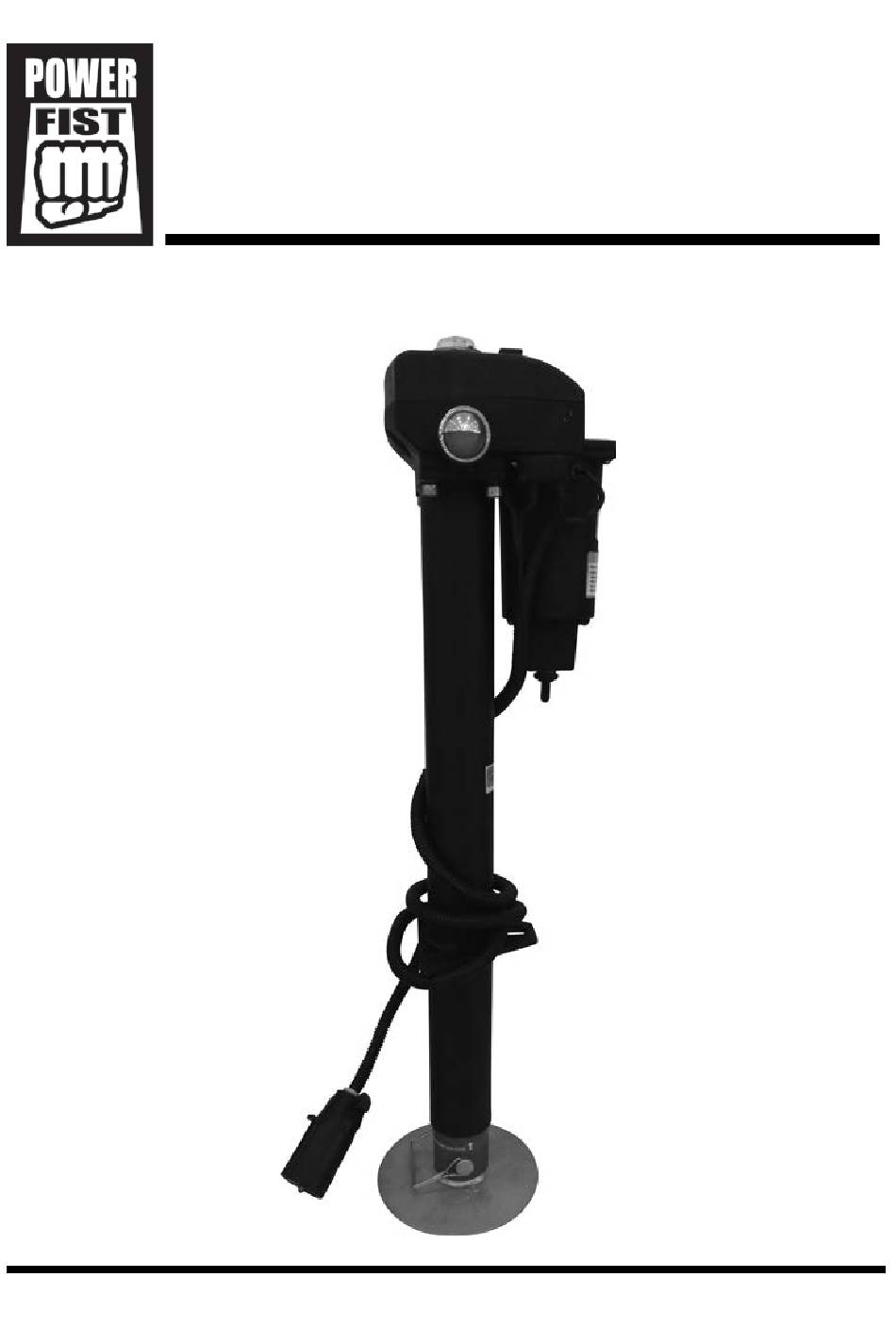

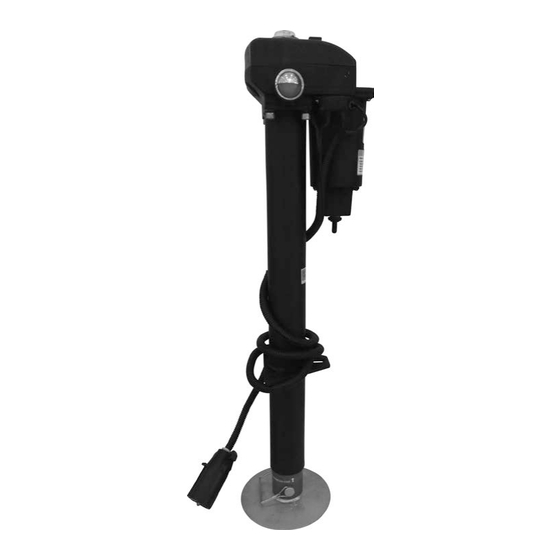

- Page 1 V4.0 8690059 3,500 lb 12V DC A-Frame Trailer Jack User Manual Please read and understand all instructions before use. Retain this manual for future reference.
-
Page 2: Specifications
8690059 3,500 lb 12V DC A-Frame Trailer Jack V4.0 3,500 lb 12V DC A-Frame Trailer Jack SPECIFICATIONS Max. Load Capacity 3,500 lb (1,587 kg) Ratio 5:1 (Manual Crank) Height Range 8-1/2 to 32 in. (21.59 to 81.28 cm) Construction Steel and Polypropylene... - Page 3 V4.0 3,500 lb 12V DC A-Frame Trailer Jack 8690059 HAZARD DEFINITIONS Please familiarize yourself with the hazard notices found in this manual. A notice is an alert that there is a possibility of property damage, injury or death if certain instructions are not followed.
-
Page 4: Specific Safety Precautions
8690059 3,500 lb 12V DC A-Frame Trailer Jack V4.0 Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration. Wear protective clothing designed for the work environment and device. Non-skid footwear is recommended to maintain footing and balance in the work environment. -
Page 5: Electrical Safety
V4.0 3,500 lb 12V DC A-Frame Trailer Jack 8690059 Inspect the jack before each use. DO NOT use if bent, broken, cracked or otherwise damaged, if any suspect parts are noticed or it has been subjected to a sudden or unexpected load (shock loading). - Page 6 8690059 3,500 lb 12V DC A-Frame Trailer Jack V4.0 BATTERY LEADS SAFETY Do not operate this device if the leads are frayed or damaged as an electric shock or surge may occur, resulting in personal injury or property damage. Inspect the leads for cracks, fraying or other faults in the insulation before each use.
-
Page 7: Assembly And Installation
V4.0 3,500 lb 12V DC A-Frame Trailer Jack 8690059 IDENTIFICATION KEY Motor Switch Light Switch Manual Crank Slot ASSEMBLY & INSTALLATION Numbered references in parenthesis (#1) refer to the included Parts List. Letter references in parenthesis (A) refer to the included Identification Key. -
Page 8: Care And Maintenance
8690059 3,500 lb 12V DC A-Frame Trailer Jack V4.0 • To lower the trailer onto the ball, toggle the motor switch to retract the jack. Once the coupler has engaged the ball, continue to retract the jack up to the STOP decal on the inner tube (#3). -
Page 9: Parts Breakdown
V4.0 3,500 lb 12V DC A-Frame Trailer Jack 8690059 PARTS BREAKDOWN Visit www.princessauto.com for more information... -
Page 10: Parts List
8690059 3,500 lb 12V DC A-Frame Trailer Jack V4.0 PARTS LIST DESCRIPTION Plastic Cap Lock Pin Pinion Gear Spur Gear Footpad Motor Inner Tube Mounting Plate Power Switch Outer Tube Motor Cover ACME Screw Switch Housing Drive Collar Power Switch Cover... - Page 11 Cric de remorque à cadre triangulaire de 12 V c.c., 3 500 lb...
- Page 12 Cric de remorque à cadre triangulaire de 12 V c.c., 3 500 lb...
- Page 18 Connectez le connecteur de remorque à 7 broches à la fiche de remorque du véhicule. Ou, s'il s'agit d'un câblage dur, connecter un fil positif (+) noir à la borne positive de la batterie, connectez le fil jaune - Vert à la borne négative (-). Le cric électrique est mis à...
