- Page 1 User Manual ESP32 Display Thank you for purchasing our product. Please read this user manual carefully before use and keep it properly for future reference.
-
Page 2: Package List
Package List The following list diagram is for reference only. Please refer to the actual product inside the package for details. ESP32 Display USB-A to Type-C Cable Crowtail/Grove to 4pin DuPont Cable Resistive Touch Pen (5-inch and 7-inch display do not come with a resistive touch pen.) - Page 3 Screen appearance varies by model, and diagrams are for reference only. Interfaces and buttons are silk screen labeled, use actual product as reference. 2.4 Inch HMI Display RESET UART1 GPIO_D BOOT UART0 ESP32-WROOM-32 2.8 Inch HMI Display RESET UART1 GPIO_D BOOT UART0 ESP32-WROOM-32...

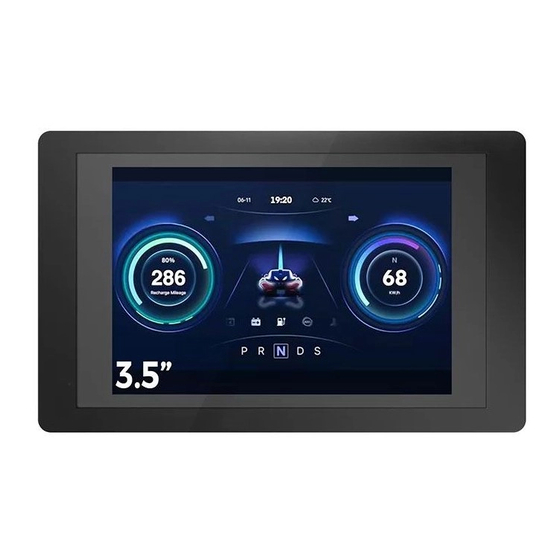

- Page 4 Screen Buttons and Interfaces 3.5 Inch HMI Display BOOT RESET UART1 GPIO_D UART0 ESP32-WROOM-32 4.3 Inch HMI Display GPIO_D UART1 BOOT RESET ESP32-S3-WROOM-1 UART0 - 4 -...
- Page 5 Screen Buttons and Interfaces 5.0 Inch HMI Display GPIO_D UART0 GPIO_D BOOT RESET ESP32-S3-WROOM-1 UART0 7.0 Inch HMI Display GPIO_D UART0 GPIO_D BOOT RESET ESP32-S3-WROOM-1 Type-C - 5 -...
- Page 6 Parameters Size 2.8" 3.5" Resolution 240*320 240*320 320*480 Touch Type Main ESP32-WROOM-32-N4 ESP32-WROOM-32-N4 ESP32-WROOM-32-N4 Processor Frequency 240 MHz 240 MHz 240 MHz Flash SRAM 520KB 520KB 520KB 448KB 448KB 448KB PSRAM Display ILI9341V ILI9341V ILI9488 Driver Screen Type Interface 1*UART0, 1*UART1,...
- Page 7 Parameters Size 4.3" 5.0" 7.0” Resolution 480*272 800*480 800*480 Touch Type Main ESP32-S3-WROOM-1- ESP32-S3-WROOM-1- ESP32-S3-WROOM-1- Processor N4R2 N4R8 N4R8 Frequency 240 MHz 240 MHz 240 MHz Flash SRAM 512KB 512KB 512KB 384KB 384KB 384KB PSRAM Display ST7282 Driver EK73002ACGB Screen Type...
-
Page 8: Safety Instructions
Before repairing or replacing any equipment components, make sure to turn off the power and disconnect from the device. Company Name: Elecrow Technology Development Co., Ltd. Company address: 5th Floor, Fengze Building B, Nanchang Huafeng Industrial Park, Baoan District, Shenzhen, China E-mail: techsupport@elecrow.com...
