- Page 1 User Manual Thank you for purchasing our product. Please read this user manual carefully before use and keep it properly for future reference.
- Page 2 Package List The following list diagram is for reference only. Please refer to the actual product inside the package for details. ESP32 Display User User Manual Manual USB-A to Type-C Cable Crowtail/Grove to 4pin DuPont Cable Resistive Touch Pen (5-inch and 7-inch display do not come with a resistive touch pen.) - 2 -...
- Page 3 Screen Buttons and Interfaces Screen appearance varies by model, and diagrams are for reference only. Interfaces and buttons are silk screen labeled, use actual product as reference. ESP32 Display 2.4 Inch RESET UART1 GPIO_D BOOT UART0 ESP32-WROOM-32 ESP32 Display 2.8 Inch RESET UART1 GPIO_D...
- Page 4 Screen Buttons and Interfaces ESP32 Display 3.5 Inch BOOT RESET UART0 GPIO_D UART0 ESP32-WROVER-B ESP32 Display 4.3 Inch GPIO_D UART1 UART1 GPIO_D BOOT RESET UART0 ESP32-S3-WROOM-1 - 4 -...

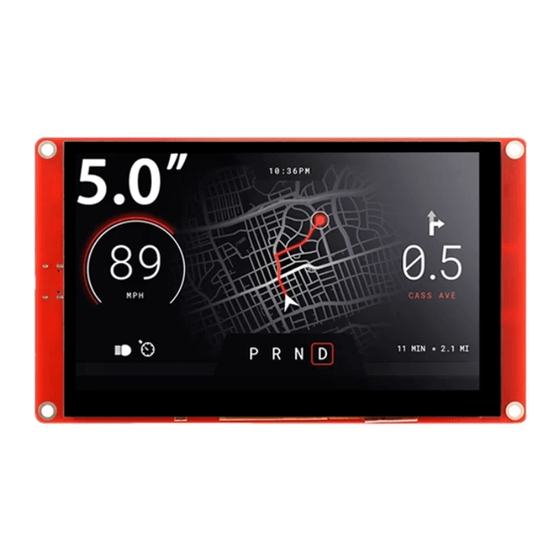

- Page 5 Screen Buttons and Interfaces ESP32 Display 5.0 Inch GPIO_D UART0 GPIO_D BOOT RESET ESP32-S3-WROOM-1 UART0 ESP32 Display 7.0 Inch GPIO_D UART0 GPIO_D BOOT RESET ESP32-S3-WROOM-1 UART0 - 5 -...
- Page 6 Parameters Size 2.4" 2.8" 3.5" Resolution 320*240 320*240 480*320 Touch Type Resistive Touch Resistive Touch Resistive Touch Main ESP32-WROOM-32-N4 ESP32-WROOM-32-N4 ESP32-WROVER-B Processor Frequency 240 MHz 240 MHz 240 MHz Flash SRAM 520KB 520KB 520KB 448KB 448KB 448KB PSRAM Display ILI9341V ILI9341V ILI9488 Driver Screen Type Interface 1*UART0, 1*UART1,...
- Page 7 Parameters Size 4.3" 5.0" 7.0” Resolution 480*272 800*480 800*480 Touch Type Resistive Touch Capacitive Touch Capacitive Touch Main ESP32-S3-WROOM-1- ESP32-S3-WROOM-1- ESP32-S3-WROOM-1- Processor N4R2 N4R8 N4R8 Frequency 240 MHz 240 MHz 240 MHz Flash SRAM 512KB 512KB 512KB 384KB 384KB 384KB PSRAM Display NV3047 ILI6122 &...
- Page 8 Before repairing or replacing any equipment components, make sure to turn off the power and disconnect from the device. Company Name: Elecrow Technology Development Co., Ltd. Company address: No.4832 Ba'an Avenue, Bao'an District, Shenzhen City Company website: https://www.elecrow.com...
