Elecrow CrowPanel ESP32 User Manual

ESP32 Terminal with 3.5inch SPI
Capacitive Touch Display
User Manual
Thank you for purchasing our product.
Please read this user manual carefully before use and keep it properly for
future reference.
Specification
Core Processor
Main Chip
Memory
Maximum Speed
Wi-Fi
Bluetooth
Resolution
LCD Screen
Display Size
Drive IC
Touch
Interface
Camera
Other Modules
Microphone
SD Card
1x USB C 1x UART
Interface
RESET Button
Button
BOOT Button
Operating Voltage
Operating
Environment
Operating Current
Operating Temperature
73.63(L)*49.79mm(W)
Active Area
Dimension Size 106(L)x66mm(W)*13mm(H)
Xtensa® 32-bit LX7
16MB Flash 8MB PSRAM
240Mhz
802.11 a/b/g/n 1x1,2.4 GHz band supports 20 and
40 MHz bandwidth, Supports Station, SoftAP, and
SoftAP + Station mixed modes.
BLE 5.0
480*320
3.5 inch
ILI9488
Capacitive Touch
SPI Interface
OV2640, 2M Pixel
MEMS Microphone
Onboard SD Card Slot
1x IIC 2x Analog 2x Digital
Press this button to reset the system.
Hold down the Boot button and press the reset
button to initiate firmware download mode. Users
can download firmware through the serial port.
USB DC5V, lithium battery 3.7V
Average current 83mA
-10°C ~ 65°C
2
IMPORTANT SAFETY WARNING!
- This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliancein a safe way and understand the hazards involved.
- Children shall not playwith the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
WARNING
- : Use the detachable supply unit provided with this appliance only.
Informationon the disposal for Waste Electrical & Electronic Equipment(WEEE). This
symbol on the products and accompanying documents means that used electrical and
electronic products should not be mixed with general household waste. For proper
disposal for treatment, recovery and recycling, please take these products to
designated collection points where they will be accepted on a free of charge basis. In
some countries you may be able toreturn your products to your local retailer upon the
purchase of a new product. Disposing of this product correctly will help you save
valuable resources and prevent any possible effects on human health and the
environment, which could otherwise arise from inappropriate wastehandling. Please
contact your local authority for further details of your near estcollection point for
WEEE.

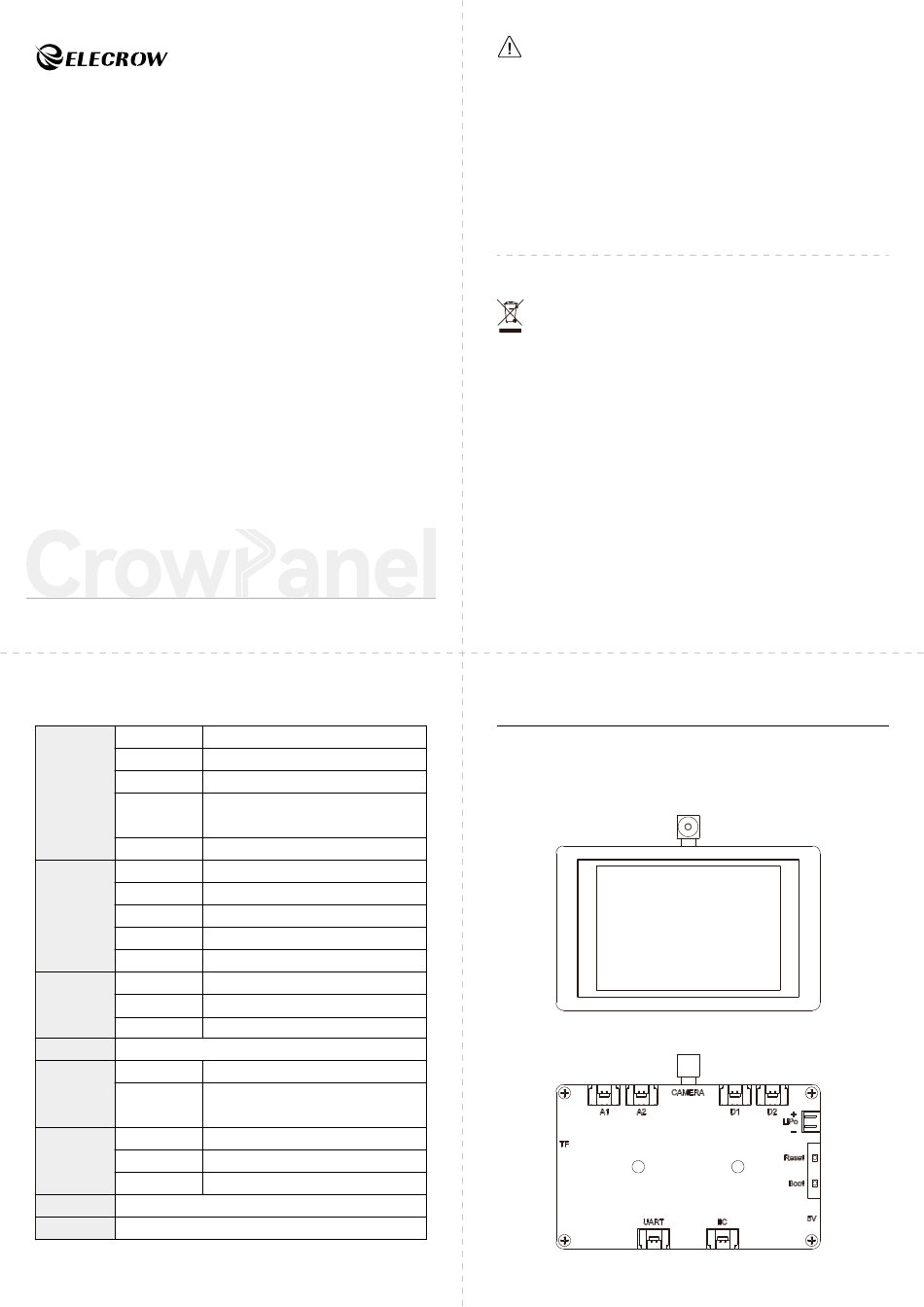

Part List
● 1x 3.5 inch SPI Display with camera (included Acrylic Shell)
● 1x USB C Cable
1
Font
Back
3
