Summary of Contents for Elecrow CrowView Note

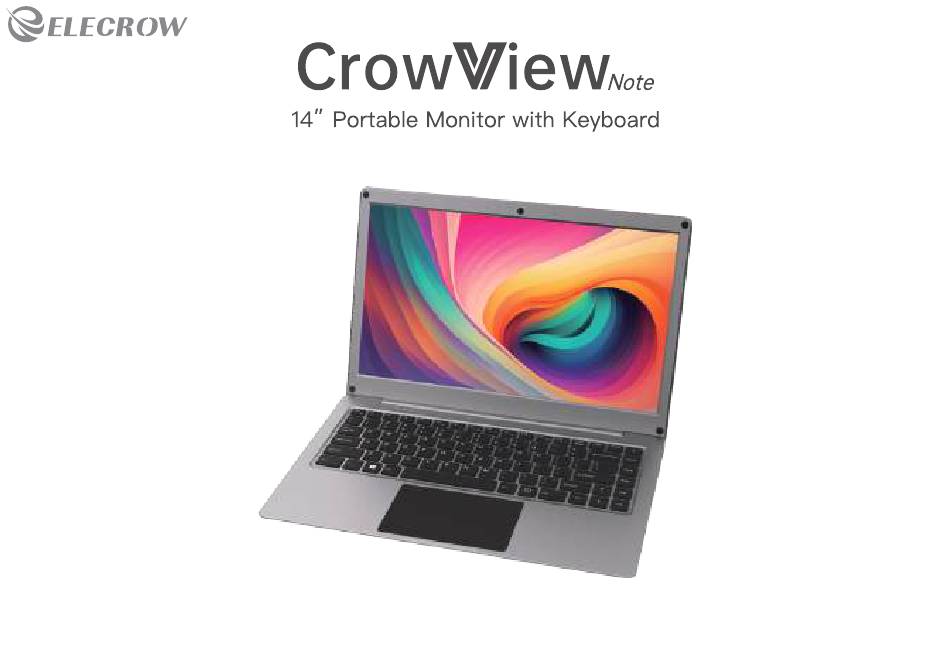

  • Page 1 User Manual...
  • Page 2: Product Brief

    The CrowView Note is a laptop-style monitor with an integrated screen, keyboard, touchpad, speakers and more in an all-in-one design. CrowView Note can be connected to a smartphone to display its desktop. It can also be used as a display terminal for computers, mini PCs, and single board computers such as Raspberry Pi and Jetson Nano Developer Kit.
  • Page 3 02 Interface Signal USB-A: Connect the master device Power Button: Short press to power on, long press to power off Mini HD: Transmit the signal Power Indicator: Keep red during charging Type-C: Power supply (PD 5V/5A Output) DC 3.5mm Interface: Power supply (12V/4A Input) Status Indicator: Keep white during operation USB-A: Connect the peripherals Caps Lock Indicator: Keep white when using Caps...
  • Page 4: Keyboard Shortcuts

    03 Keyboard Shortcuts OSD and set up Switch signal Signal OSD Mode Touchpad on/off Down Volume - Back Volume + Battery Num lock/unlock Bcaklight - Backlight + When Fn+Esc is pressed and the screen appears , which indicates that the Fn shortcut key function is disabled. In this case, we can use the traditional functions of F1~F12.
  • Page 5 USB-A to USB-A Cable Please use a cable that can support full-featured, such as USB 3.1 Gen 2 Type-C Cable. Note: If you want to use the CrowView Note keyboard and touchpad, Note: Please connect Type-C (Full-featured) interface. please connect the USB-A port.
  • Page 6 05 How to connect the Bridge Board Take the Raspberry Pi 5 for example. Step 1: Connect the Raspberry Pi 5 to the Bridge Board A. Step 3: Connect the assembled Raspberry Pi 5 to the CrowView Note. Micro HD Micro HD...
  • Page 7 Note: The Bridge Board is only available for the Jetson Nano Developer Kit and the Bridge Board is required to be purchased separately. If you don't have the Bridge Board, you can also connect the Jetson Nano Developer Kit to the CrowView Note using the corresponding cables. XH2.54 DC5.5-2.5...
  • Page 8: Osd Setting

    06 OSD Settings 1. Press F7 to enter OSD menu or set up option. 2. Press F8 or F9 to select the corresponding option or adjust parameter value. 3. Press F10 to return to previous step. Note: Make sure the Fn shortcut key function is available. BRIGHTNESS BRIGHTNESS: Adjustable range: 0-100 CONTRAST: Adjustable range: 0-100...
  • Page 9: Color Temp

    06 OSD Settings COLOR TEMP COLOR TEMP: sRGB/USER/WARM/COOL (RGB can only be adjusted in USER mode.) RED: Adjustable range: 0-100 GREEN: Adjustable range: 0-100 BLUE: Adjustable range: 0-100 MISC ASPECT: WIDE/4: 3 FREESYNC: OFF/ON OD: OFF/ON CLONE: OFF/ON SIGNAL SOURCE D3: HDMI LOW BLUE LIGHT: 0-4 VOLUME: Adjustable range: 0-100...
  • Page 10 07 Devices with Type-C interface Apple iPhone15, iPhone15 Plus, iPhone15 Pro, iPhone15 Pro Max Mate10, Mate10pro, Mate20, Mate20pro, Mate30, Mate30pro, Mate30RS, Mate40, Mate40pro, Mate40pro+ Smart Huawei Phone Mate40RS, Mate50, Mate50Pro, Mate50RS, P20, P20 Pro, P20 RS, P30, P30 Pro, P40, P40 Pro, P50, P50 Pro Galaxy S8, Galaxy S8+, Galaxy S9, Galaxy S9+, Galaxy S10, GalaxyS10+, Galaxy S10e, Galaxy S20, Galaxy S20+ Samsung Galaxy S20 Ultra, Galaxy S21, Galaxy S21+, Galaxy S21 Ultra, Galaxy S22, Galaxy S22+, Galaxy S22 Ultra...
  • Page 11 2. Please make sure your device supports Type-C with full-featured. 3. Reboot your device and CrowView Note. What should I do if the keyboard and touchpad of CrowView Note do not work when the HD cable is connected ? Make sure the CrowView Note's USB-A intreface is connect to your master device.
  • Page 12: Packing List

    10 Packing list Screen Size 14” Resolution 1920*1080(FHD) Color Gamut 100% sRGB User Manual Brightness 300cd/m² CrowView Note*1 Adapter*1 User Manual*1 Aspect Ratio 16:9 Power Supply 12V-4A 1* DC 3.5mm/ 1* Type-C (Full-featured)/ 11 Customer Support Interface 1* Type-C (Power output)/ 1* Mini HD/...

This manual is also suitable for:

Crv12014k-1
