Summary of Contents for Elecrow MF156S

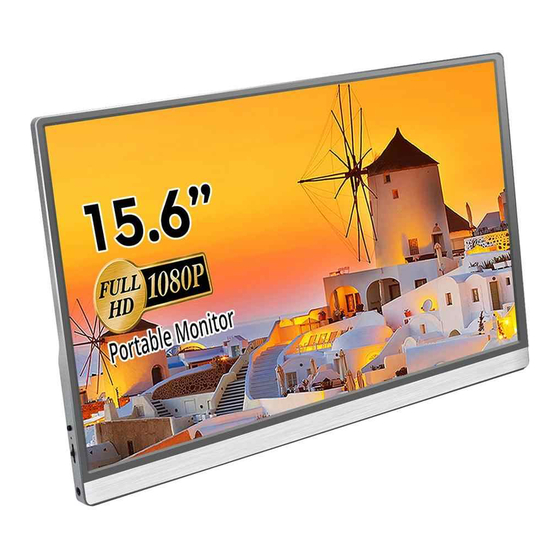

- Page 1 ELECROW 15.6” 1920*1080 IPS Portable Monitor Model: MF156S USER MANUAL Customer Support: Should there be any questions, please feel free to let us know and contact us with info@elecrow.com . your purchase order number at...
-
Page 2: Table Of Contents
2-5. How to Set Your PC/Laptop Monitor to Duplicate or Extend Mode & How to Rotate the Screen Chapter 03: Screen Setup OSD Function Introduction Chapter 04: Specifications Chapter 05: Troubleshooting Guide and Warranty 5-1. Troubleshooting Guide 5-2. Warranty 5-3. Custormer Support 2019 ELECROW All Rights Reserved. -
Page 3: Chapter 01 Before Using The Product
• 3. Wipe the monitor with a clean, soft and dry cloth. • Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor • Do not spray water or detergent directly on the product. 2019 ELECROW All Rights Reserved. -
Page 4: Package Contents
• 1x HDMI to Mini HDMI Connecting Cable • 1x Stand 1-3. Product Description 10.0mm 363.0mm Mini HDMI: For audio and video signal transmission. USB Type C: For power supply, audio and video signal transmission. 2019 ELECROW All Rights Reserved. - Page 5 • Scrolling down the Roll Key in the main interface to open volume adjustment menu, then adjust the volume by up and down. Headphone: 3.5mm headphone jack for audio output. VESA 75x75mm Speaker Speaker 2019 ELECROW All Rights Reserved.
-
Page 6: Chapter 02: Connecting And Using A Source Device
2-3. Connected to PC/Laptop/Other Devices ( with HDMI Port Mini HDMI to HDMI DISPLAY External Power Supply Note: Some computers have low power USB ports, please connect an external power supply of 5V/3A or above. 2019 ELECROW All Rights Reserved. -
Page 7: Connected To Other Devices (With Hdmi Port)
PC then try above steps again. • 4. Click the Orientation drop-down list, select Portrait or Landscape screen. * If you can’t see the option of Orientation on your PC/laptop, please check if your PC/laptop has this function. 2019 ELECROW All Rights Reserved. -
Page 8: Chapter 03: Screen Setup
• DCR: Turn dynamic contrast on or off by selecting “ON” or “OFF” mode. • Sharpness: Control the clarity of details of pictures displayed on the screen(adjust range 0-4). Image IMAGE H.POSITION V.POSITION CLOCK PHASE ASPECT 16:9 • Aspect: Adjusts the aspect ratio to “16:9” or “4:3”. 2019 ELECROW All Rights Reserved. - Page 9 • OSD V. POS.: Adjust the vertical position of OSD menu and the adjusting range is from 0 to 100. • OSD Timer: Adjust OSD timeout from 10 to 60. • Transparency: Adjust the transparency of OSD menu and adjusting range is from 0 to 100. 2019 ELECROW All Rights Reserved.
- Page 10 • Low Blue Light: Decrease the blue light emitted from the display. • Volume: Adjust the volume in the range of 0-100. • Mute: Turn mute on or off by selecting “ON” or “OFF” mode. 2019 ELECROW All Rights Reserved.
-
Page 11: Chapter 04: Specifications
Troubleshooting Guide and Warranty 5-1. Troubleshooting Guide • This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, please contact customer support. 2019 ELECROW All Rights Reserved. -
Page 12: Warranty
Image is Blurred 5-2. Warranty • ELECROW Monitors carry a one (1) year limited warranty from the purchase date. In order to receive warranty service, proof of purchase of the ELECROW product is required. To obtain warranty service, please contact Customer Support.
