Page 1: User Manual

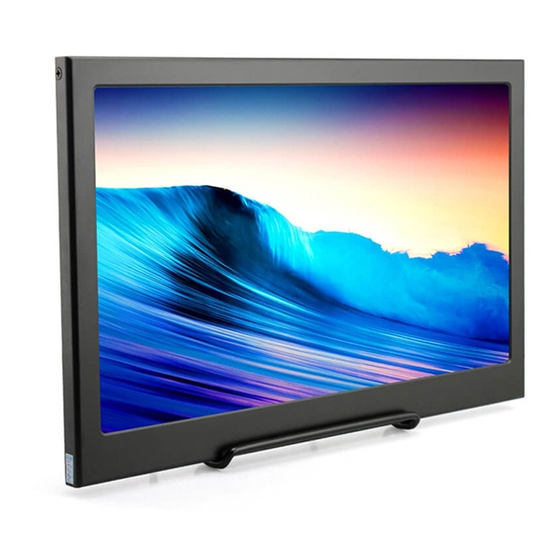

ELECROW 13.3” 1920*1080 IPS Portable Monitor Model: SF133 USER MANUAL Customer Support: Should there be any questions, please feel free to let us know and contact us with info@elecrow.com . your purchase order number at... -
Page 2: Table Of Contents
Rotate the Screen Chapter 03: Screen Setup 3-1. How to Reconfigure OSD (On-Screen Display) Menu 3-2. OSD Function Introduction Chapter 04: Specifications Chapter 05: Troubleshooting Guide and Warranty 5-1. Troubleshooting Guide 5-2. Warranty 5-3. Custormer Support 2019 ELECROW All Rights Reserved. -
Page 3: Chapter 01 Before Using The Product
• 3. Wipe the monitor with a clean, soft and dry cloth. • Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor • Do not spray water or detergent directly on the product. 2019 ELECROW All Rights Reserved. -
Page 4: Package Contents
1-2. Package Contents • 1 x Monitor • 1 x HDMI to Mini HDMI Cable • 1 x Power Supply • 1 x Metal Stand • 1 x User Manual 1-3. Product Description 323.0mm 15.0mm 2019 ELECROW All Rights Reserved. -
Page 5: Port Description
When in the OSD menu, press to exit the OSD menu. Green light, indicated the working status. Turn on/off the monitor when it powered. POWER When in the OSD menu, press to confirm the selection. 2019 ELECROW All Rights Reserved. -
Page 6: Chapter 02: Connecting And Using A Source Device
Note: Some computers have low power USB ports, do not forget to connect to an external power supply of 5V/2A or above. 2-2. Connected to Other Device (with HDMI Port) DISPLAY External Power Supply DC Power HDMI to Mini HDMI cable Type A to Micro USB 2019 ELECROW All Rights Reserved. -
Page 7: How To Set Your Pc/Laptop Monitor To Duplicate Or Extend Mode & How To
• 6. Select the AUTO to return to the previous menu or MENU to save the setting. If you want to adjust any other functions, repeat steps 2-5. 2019 ELECROW All Rights Reserved. -
Page 8: Osd Function Introduction
• DCR: Turn dynamic contrast on or off by selecting “ON” or “OFF” mode. Note: Only under the Standard Mode, you could adjust the parameter of Brightness/ Contrast by yourself. Image IMAGE H.POSITION V.POSITION CLOCK PHASE ASPECT WIDE • Aspect: Adjusts the aspect ratio to “WIDE” or “4:3”. 2019 ELECROW All Rights Reserved. -
Page 9: Color Temperature
• OSD V. POS.: Adjust the vertical position of OSD menu and the adjusting range is from 0 to 100. • OSD Timer: Adjust OSD timeout from 5 to 60. • Transparency: Adjust the transparency of OSD menu and adjusting range is from 0 to 100. 2019 ELECROW All Rights Reserved. - Page 10 • Selects “Yes” to revert all settings to the factory default mode. Misc MISC . SIGNAL SOURCE HDMI 2 VOLUME 1920X1080 60HZ • Signal Source: Adjust the signal source to “HDMI 1” or “HDMI 2”. • Volume: Adjust the volume in the range of 0-100. 2019 ELECROW All Rights Reserved.
-
Page 11: Chapter 04: Specifications
Troubleshooting Guide and Warranty 5-1. Troubleshooting Guide • This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, please contact customer support. 2019 ELECROW All Rights Reserved. -
Page 12: Warranty
Image is Blurred 5-2. Warranty • ELECROW Monitors carry a one (1) year limited warranty from the purchase date. In order to receive warranty service, proof of purchase of the ELECROW product is required. To obtain warranty service, please contact Customer Support.
