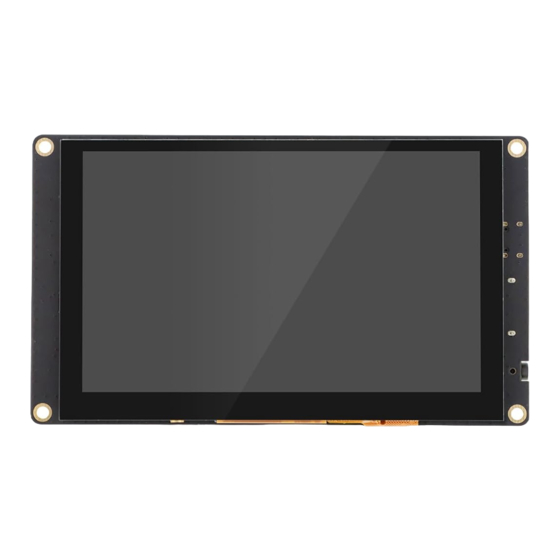

5 Inch
HD Display
User Manual
Please read this manual carefully before using the product and keep it carefully.
Product Size
130 mm
137 mm
2
Specifications
Model Name
Panel Size
Interface
Resolution
Touch Function
Speaker
Dimension
Net Weight(Esti.)
Customer Support
If you have any questions, customer support is always stand by.
info@elecrow.com
@elecrow.openhardware
Product Description
⑥
①
②
③
⑥
④
①
Backlight Switch: Turn on and off the backlight.
②
USB-C Interface: Connects to the device for touch function and power supply.
③
HD Interface: Video and audio signals transmission.
④
Headphone Jack: 3.5mm audio interface.
⑤
Speaker Socket：4pin audio interface.
⑥
Mounting Holes: For mounting the RPI.
DIS05490T
5 Inch
HD & USB
800x480(Pixels)
Capacitive Touch
Support
137*80*14(mm)
140g
@Elecrow1
⑥
M2.5mm
⑤
⑥
1
3
