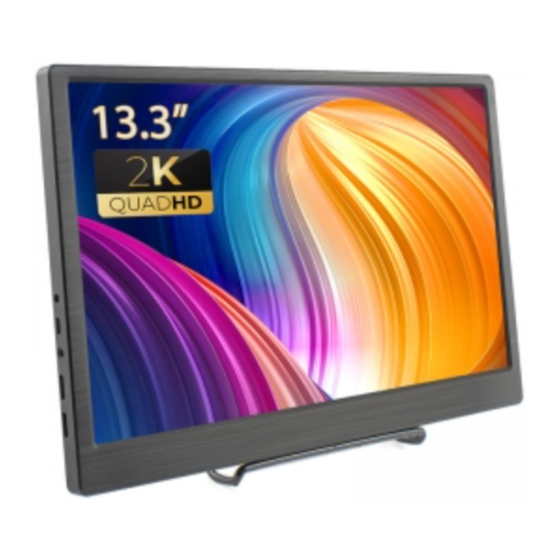

- Page 1 ELECROW 13.3” IPS Portable Monitor Model: MQ133 USER MANUAL Customer Support: Should there be any questions, please feel free to let us know and contact us with your purchase order number at info@elecrow.com.
-
Page 2: Table Of Contents
2-3. How to Set Your PC/Laptop Monitor to Duplicate or Extend Mode & How to Rotate the Screen Chapter 03: Screen Setup 3-1. How to Reconfigure OSD (On-Screen Display) Menu 3-2. OSD Function Introduction Chapter 04: Specifications Chapter 05: Troubleshooting Guide and Warranty 5-1. Troubleshooting Guide 5-2. Warranty 2019 ELECROW All Rights Reserved. -
Page 3: Chapter 01 Before Using The Product
• 3. Wipe the monitor with a clean, soft and dry cloth. • Do not apply a cleaning agent that contains alcohol, solvent, or surfactant to the monitor • Do not spray water or detergent directly on the product. 2019 ELECROW All Rights Reserved. -
Page 4: Package Contents
1-2. Package Contents • Portable Monitor x 1 • HDMI to Mini HDMI Cable x 1 • Power Supply x 1 • Stand x 1 • User Manual x 1 1-3. Product Description 318.3mm 11.5mm 2019 ELECROW All Rights Reserved. -
Page 5: Button Indications
By default, the key is the hot key for volume. When in the OSD menu, press for up/increase adjustment . Power Turn on/off the monitor when it powered. Light Green light, indicated the working status. 2019 ELECROW All Rights Reserved. -
Page 6: Chapter 02: Connecting And Using A Source Device
Note: Some computers have low power USB ports, Do not forget connect an external power supply of 5V/2A or above. 2-2. Connected to Other Device (with HDMI Port) External Power DISPLAY Supply Type A to Micro USB HDMI to Mini HDMI Cable 2019 ELECROW All Rights Reserved. -
Page 7: How To Set Your Pc/Laptop Monitor To Duplicate Or Extend Mode & How To
• 6. Select the AUTO to return to the previous menu or MENU to save the setting. If you want to adjust any other functions, repeat steps 2-5. 2019 ELECROW All Rights Reserved. -
Page 8: Osd Function Introduction
Note: Only under the Standard Mode, you could adjust the parameter of Brightness/Contrast / ECO/DCR by yourself. Image IMAGE H.POSITION V.POSITION CLOCK PHASE ASPECT WIDE • Aspect: Adjusts the aspect ratio to “WIDE” or “4:3”. 2019 ELECROW All Rights Reserved. - Page 9 • OSD V. POS.: Adjust the vertical position of OSD menu and the adjusting range is from 0 to 100. • OSD Timer: Adjust OSD timeout from 10 to 60. • Transparency: Adjust the transparency of OSD menu and adjusting range is from 0 to 100. 2019 ELECROW All Rights Reserved.
- Page 10 • Signal Source: Adjust the signal source to “HDMI 1” or “HDMI 2”. • Low Blue Light: Decrease the blue light emitted from the display. • Volume: Adjust the volume in the range of 0-100. 2019 ELECROW All Rights Reserved.
-
Page 11: Chapter 04: Specifications
Troubleshooting Guide and Warranty 5-1. Troubleshooting Guide • This page deals with problems that can be corrected by a user. If the problem still persists after you have tried these solutions, please contact customer support. 2019 ELECROW All Rights Reserved. -
Page 12: Warranty
Select the correct resolution. 5-2. Warranty • ELECROW Monitors carry a one (1) year limited warranty from the purchase date. In order to receive warranty service, proof of purchase of the ELECROW product is required. To obtain warranty service, please contact Customer Support.
