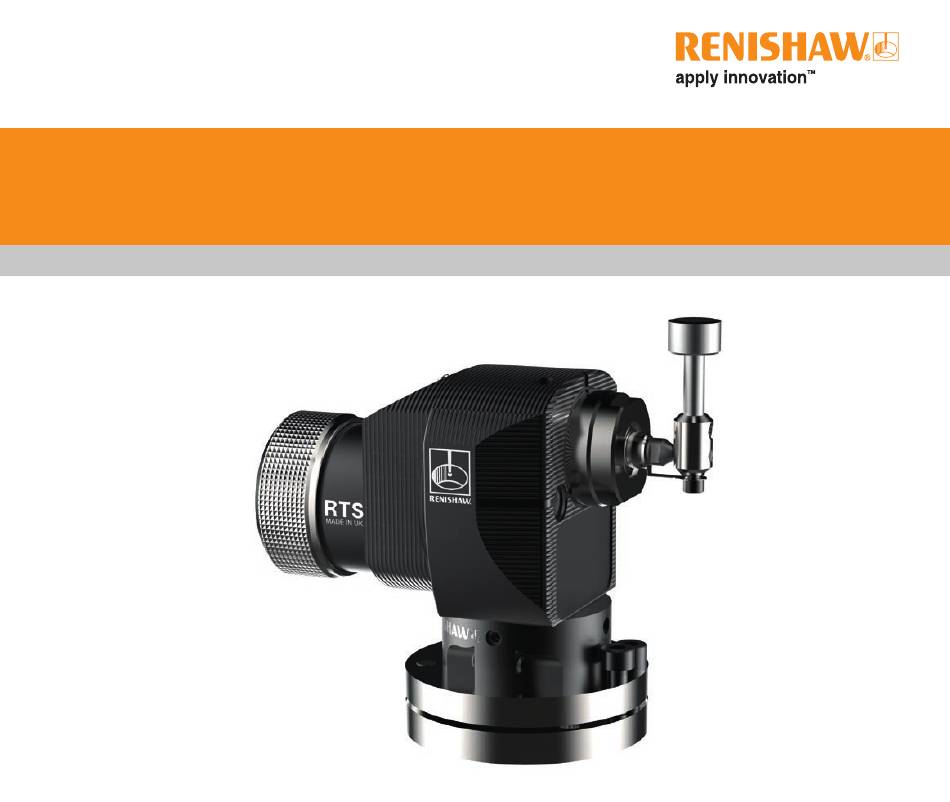

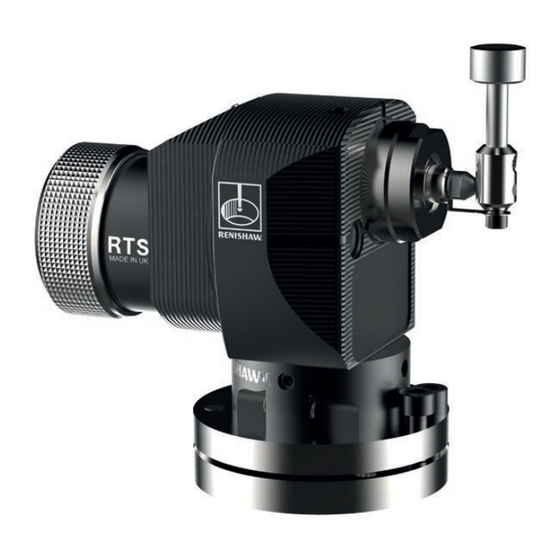

Quick-start guide
H-6589-8500-01-A
RTS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renishaw RTS

Summary of Contents for Renishaw RTS

  • Page 1 Quick-start guide H-6589-8500-01-A...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/rts. Weitere Informationen zu diesem Produkt sind unter folgendem Link www.renishaw.de/rts abrufbar. Las publicaciones para este producto están disponibles a través de www.renishaw.es/rts. Les documentations pour ce produit sont disponibles en visitant le site www.renishaw.fr/rts.
  • Page 3 Publikacje dotyczące tego produktu są dostępne w witrynie www.renishaw.pl/rts. Dokumentaci k produktu najdete na www.renishaw.cz/rts. Документация по данному изделию доступна на сайте www.renishaw.ru/rts. 中文 請訪問雷尼紹網站以獲得此產品的的相關文件檔案: www.renishaw.com.tw/rts。 (繁體) 中文 请访问雷尼绍网站以获得此产品的相关文档 www.renishaw.com.cn/rts。 (简体) 한국어 이 제품의 관련 자료는 www.renishaw.co.kr/rts 에서 확인 가능 합니다.
  • Page 4 This page is intentionally left blank.
  • Page 5 Lithium-thionyl chloride non-rechargeable AA batteries • Avoid forced discharge of the battery. may also be used in the RTS (Please refer to the RTS radio • Do not short-circuit or force discharge the batteries. tool setter installation guide [Renishaw part no. H-6589-8504]).
  • Page 6 In all applications involving the use of machine tools, eye protection is recommended. If this equipment is used in a manner not specified by the The RTS has a glass window. Handle with care if broken to avoid manufacturer, the protection provided by the equipment may be injury.
  • Page 7 Batteries AA lithium-thionyl chloride × 2 AA alkaline × 2 Saft LS 14500   Tadiran SL-760/S TL-5903/S, TL-2100/S Xeno XL-060F NOTE: Maximum battery life is achieved when lithium-thionyl chloride batteries are used.
  • Page 8 Fitting the stylus and captive link 5 mm A/F (thin) 2,5 Nm – 2.7 Nm (1.84 lbf.ft – 1.99  lbf.ft) 2 mm A/F 1,0 Nm – 1,2 Nm (0.74 lbf.ft – 0.89 lbf.ft) 3 mm A/F 2 mm A/F 2,5 Nm – 2,7 Nm 1,0 Nm – 1,2 Nm (1.84 lbf.ft – 1.99 lbf.ft) (0.74 lbf.ft –...

  • Page 9: Installing The Batteries

    Installing the batteries...
  • Page 10 Configuring the probe Probe settings can be reviewed and configured by using the Opti Logic technique or Trigger Logic™ technique. The Probe Setup app enables the application of Opti Logic and provides interactive instructions and informative videos to apply Trigger Logic to review and configure settings and to partner the probe.
  • Page 11 Configuring the probe with Opti Logic Opti Logic is accessed via the Probe Setup app. For full details about Opti Logic, refer to the Probe Setup app which is available for download on the App Store or Google Play.

  • Page 12: Reviewing The Probe Settings

    Reviewing the probe settings Key to the symbols LED short flash LED long flash > 5 s LED check Trigger filter Level 1 Level 2 (off) (6.7 ms delay) Hibernation mode setting (RMI-Q only) 30 s...
  • Page 13 Battery status Battery good Battery low Probe in standby mode (after 5 seconds)
  • Page 14 Probe partnering function Using Trigger Logic™ the probe partnering function enables the probe to be partnered with RMI-Q or RMI-QE. LED check > 5 s Key to the symbols LED short flash LED long flash Deflect the stylus for less than 4 seconds to move to the next menu option.
  • Page 15 Whilst the “Battery status” is being displayed, deflect and release the stylus to enter “Partnering mode off”. Probe status will flash red to acknowledge this. Battery status Battery good Battery low At this point turn on either the RMI-Q or RMI-QE. With RMI-Q switched on After 8 Partnering mode...
  • Page 16 With RMI-QE switched on After 8 seconds Partnering mode 120 seconds probe in standby if Partnering mode off RMI-QE is turned off RMI-QE Partnering mode Partnering mode off Partnering mode on (RMI-QE found) 120 seconds probe in standby 20 seconds probe in standby If partnering is unsuccessful “Partnering mode off”...
  • Page 17 This page is intentionally left blank.
  • Page 18 RTS – RMI-Q partnership System set-up can be achieved by using Trigger Logic™. Partnering mode Partnering mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in “Partnering RMI-Q in “Partnering mode” with empty mode” with full probe...
  • Page 19 Partnering mode completed Displayed for 5 seconds successfully NOTE: Please refer to the RMI-Q installation guide (Renishaw part no. H-5687-8504) when The probe is in standby and the partnering up to four RMPs. system is ready for use. > 20 s...
  • Page 20 RTS – RMI-QE partnership System set-up can be achieved by using Trigger Logic™. Partnering mode Partnering mode off Switch on the RMI-QE Partnering mode Partnering mode off (RMI-QE found)   SYSTEM STATUS LED SYSTEM STATUS LED RMI-QE in “Partnering RMI-QE in “Partnering...
  • Page 21 Partnering mode completed Displayed for 5 seconds successfully NOTE: Please refer to the RMI-QE radio machine interface installation guide (Renishaw The probe is in standby and the part no. H-6551-8501) when partnering up to system is ready for use. four RMPs.
  • Page 22 Changing the probe settings (when using with a RMI-Q) Probe settings can be changed using Trigger Logic™. LED check > 5 s Key to the symbols Deflect the stylus and hold it deflected until after the battery LED short flash status has been displayed at the LED long flash end of the review sequence.
  • Page 23 Trigger filter Level 1 Level 2 (off) (6.7 ms delay) Partnering mode Partnering Partnering Partnering successful, mode off mode on 20 seconds probe in standby After 8 seconds 120 seconds, probe in standby Hibernation mode setting 30 s Return to “Trigger filter” New settings complete...
  • Page 24 Changing the probe settings (when using with a RMI-QE) Probe settings can be changed using Trigger Logic™. LED check > 5 s Key to the symbols Deflect the stylus and hold it deflected until after the battery LED short flash status has been displayed at the LED long flash end of the review sequence.
  • Page 25 Trigger filter Level 1 Level 2 (off) (6.7 ms delay) Partnering mode Partnering Partnering Partnering successful, mode off mode on 20 seconds probe in standby After 8 seconds 120 seconds, probe in standby Return to “Trigger filter” New settings complete...
  • Page 26 Mounting the probe on the machine table M10/M12 bolt and T nut – supplied by user.
  • Page 27 2,5 mm A/F 2,5 mm A/F × 2 × 4 0,7 Nm – 0,9 Nm 0,7 Nm – 0,9 Nm (0.52 lbf.ft – (0.52 lbf.ft – 0.66 lbf.ft) 0.66 lbf.ft)

  • Page 28: Stylus On-Centre Adjustment

    Stylus on-centre adjustment ±2,5 µm 2,5 mm A/F × 2 0,7 Nm – 0,9 Nm (0.52 lbf.ft – 0.66 lbf.ft)
  • Page 29 Adjust and lock Adjust ±2,5 µm 4 mm A/F × 2 4,6 Nm – 5.6 Nm (3.40 lbf.ft – 4.13 lbf.ft)

  • Page 30: Square Stylus Only

    Square stylus only ±100 µm 2 mm A/F 1,0 Nm – 1,2 Nm (0.74 lbf.ft – 0.89 lbf.ft)
  • Page 31 Slacken...
  • Page 32 Adjust ±5 µm 2,5 mm A/F 0,7 Nm – 0,9 Nm (0.52 lbf.ft – 0.66 lbf.ft) × 2...
  • Page 33 Tighten 2,5 mm A/F × 4 0,7 Nm – 0,9 Nm (0.52 lbf.ft – 0.66 lbf.ft)
  • Page 34 Cleaning Clean the window to maintain signal range.
  • Page 35 This page is intentionally left blank.
  • Page 36 RMI-Q visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 37 RMI-QE visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Partnering/clearing pending, full and no M-code...
  • Page 38 This page is intentionally left blank.

  • Page 39: Warranty

    Trade marks China RoHS RENISHAW and the probe symbol used in the RENISHAW logo are registered trade marks of Renishaw plc in the United For more information on China RoHS visit: Kingdom and other countries. apply innovation and names and www.renishaw.com/mtpchinarohs...

  • Page 40: Eu Declaration Of Conformity

    1907/2006 (“REACH”) relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH Renishaw plc declares under its sole responsibility that the RTS is FCC Information to user (USA only) in conformity with all relevant Union legislation.
  • Page 41 Patents Features of and features of similar products are the subject of one or more of the following patents and/or patent applications: US 2011/0002361 CN 100466003 EP 1988439 US 5669151 CN 101287958 EP 2216761 US 6776344 CN 101482402 WO 2004/057552 US 6941671 EP 0695926 WO 2007/028964...
  • Page 42 请勿使电池短路或强制放电。 • 请勿对电池进行拆解、穿透、施加过度压力，或使其变形。 • 请勿吞咽电池。 安全须知 • 请将电池放在儿童无法接触的地方。 用户须知 • 请将电池放在儿童无法接触的地方。 RTS配有两节非充电型AA碱性电池。锂亚硫酰氯非充电型AA • 不要将新旧电池或不同的电池类型混用，因为这会缩短电池寿 电池也可用于RTS（请参阅RTS安装指南 [雷尼绍文档编号 命并损坏电池。 H-6589-8504]）。锂电池必须符合 (BS EN 62133:2013 [IEC • 在运输电池或本产品时，请确保符合国际和国家电池运输条例。 62133:2012]) 标准。电池电量耗尽之后，请勿尝试给电池充电。 在运输电池或本产品时，请确保符合国际和国家电池运输条例。 注： 锂电池被定义为危险品，空运有严格的控制。为了减少运输延 期的风险，无论出于何种原因，若您需要将产品返回RTS雷尼绍， 请勿包含任何电池。 在电池、包装或随附文档上使用本符号，表示废旧电池不可与普通 生活垃圾混合。 请在指定的收集点处置废旧电池。 这样可以防止 由于废品处理不当对环境和人类健康造成的潜在不良影响。 请联 系当地相关政府部门或废品处置服务商，了解电池的单独回收与处 置规定。 在处置前，必须使所有的锂电池和充电电池完全放电或...
  • Page 43 在所有涉及使用机床的应用中，建议采取保护眼睛的措施。 RTS有一个玻璃窗口。如果玻璃破碎，请务必小心，以免受伤。 机床供应商/安装商须知 机床制造商有责任确保用户了解操作中存在的任何危险，包括雷尼 绍产品说明书中所述的危险，并应确保提供充分的防护装置和安全 联动装置。 在某些情况下，测头信号可能错误指示测头已复位状态。切勿单凭 测头信号来停止机床运动。 设备安装商须知 雷尼绍所有设备的设计均符合相关的EU和FCC监管要求I为使产品 按照这些规定工作，设备安装商有责任保证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如变压器、 伺服系统驱动装置等； • 所有0伏/接地连接都应当连接到机床接地终端上（“接地终端” 是所有设备地线和屏蔽电缆的单点回路）。这一点非常重要，不 遵守此规定会造成接地之间存在电位差； • 所有屏蔽装置都必须按使用说明书中所述进行连接； • 电缆线路不得与电机电源电缆等高电流源并行或靠近高速数据 传输线； • 电缆长度应始终保持最短。 设备操作 如果设备使用方式与制造商要求的方式不符，设备提供的保护功能 可能会减弱。...

  • Page 44: Radio Approvals

    Radio approvals Canada: RTS40QE IC ID: 3928A-RTSQE USA: RTSQE FCC ID: KQGRTSQE This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 46 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-6589-8500-03*...
