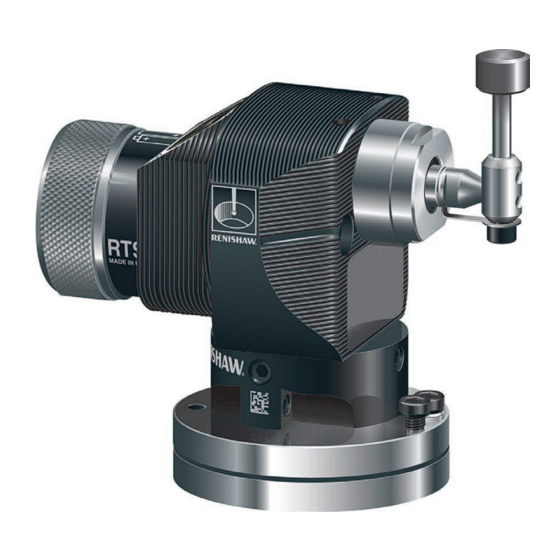

Renishaw RTS Quick Start Manual
  1. Manuals
  2. Brands
  3. Renishaw Manuals
  4. Measuring Instruments
  5. RTS
  6. Quick start manual

Renishaw RTS Quick Start Manual

Hide thumbs Also See for RTS:

Advertisement

Quick Links

Download this manual
Quick-start guide
H-5646-8500-03-A
RTS

Advertisement

loading
Need help?

Need help?

Do you have a question about the RTS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Renishaw RTS

Summary of Contents for Renishaw RTS

  • Page 1 Quick-start guide H-5646-8500-03-A...
  • Page 2 Publications for this product are available by scanning the barcode or visiting www.renishaw.com/rts. Weitere Informationen zu diesem Produkt sind unter folgendem Link www.renishaw.de/rts abrufbar. Las publicaciones para este producto están disponibles a través de www.renishaw.es/rts. Les documentations pour ce produit sont disponibles en visitant le site www.renishaw.fr/rts.
  • Page 3 Publikacje dotyczące tego produktu są dostępne w witrynie www.renishaw.pl/rts. Dokumentaci k produktu najdete na www.renishaw.cz/rts. Документация по данному изделию доступна на сайте www.renishaw.ru/rts. 中文 請訪問雷尼紹網站以獲得此產品的的相關文件檔案: www.renishaw.com.tw/rts。 (繁體) 中文 请访问雷尼绍网站以获得此产品的相关文档 www.renishaw.com.cn/rts。 (简体) 한국어 이 제품의 관련 자료는 www.renishaw.co.kr/rts 에서 확인 가능 합니다.
  • Page 4 This page is intentionally left blank.
  • Page 5 Lithium-thionyl chloride non-rechargeable AA • Avoid forced discharge of the battery. batteries may also be used in the RTS; refer to the RTS radio • Do not short-circuit or force discharge the batteries. tool setter installation guide (Renishaw part no. H-5646-8504).
  • Page 6 If this equipment is used in a manner not specified by the made aware of any hazards involved during operation, including manufacturer, the protection provided by the equipment may be those mentioned in Renishaw product literature, and to ensure that impaired. adequate guards and safety interlocks are provided.
  • Page 7 Batteries AA lithium-thionyl chloride × 2 AA alkaline × 2 Saft LS 14500   Tadiran SL-760/S TL-5903/S, TL-2100/S Xeno XL-060F NOTE: Maximum battery life is achieved when lithium-thionyl chloride batteries are used.
  • Page 8 Fitting the stylus and captive link 5 mm A/F (thin) 2.5 Nm – 2.7 Nm (1.84 lbf.ft – 1.99  lbf.ft) 2 mm A/F 1.0 Nm – 1.2 Nm (0.74 lbf.ft – 0.89 lbf.ft) 3 mm A/F 2 mm A/F 2.5 Nm – 2.7 Nm 1.0 Nm – 1.2 Nm (1.84 lbf.ft – 1.99 lbf.ft) (0.74 lbf.ft –...

  • Page 9: Installing The Batteries

    Installing the batteries...
  • Page 10 Configuring the probe The following sections describe the process of reviewing and configuring the probe settings. The Trigger Logic™ app simplifies this process with clear, interactive instructions and informative videos. The app can also be used with radio probes for probe partnering.

  • Page 11: Reviewing The Probe Settings

    Reviewing the probe settings Key to the symbols LED short flash LED long flash LED check > 5 s Enhanced trigger filter Hibernation mode setting 30 s Battery status Battery good Battery low Probe in standby mode (after 5 seconds)
  • Page 12 Placing the probe in configuration mode LED check > 5 s Deflect the stylus and hold it Key to the symbols deflected until after the battery status has been displayed at the LED short flash end of the review sequence. LED long flash Deflect the stylus for less than 4 seconds to move to the next menu option.

  • Page 13: Changing The Probe Settings

    Changing the probe settings Enhanced trigger filter (on-centre length measurement only) Acquisition mode (time out only in acquisition successful) Acquisition mode Acquisition mode Acquisition successful Hibernation mode setting 30 s Return to “Enhanced trigger filter” New settings complete...
  • Page 14 RTS – RMI-Q partnership Aquisition mode Aquisition mode off Switch on the RMI-Q   SYSTEM STATUS LED SYSTEM STATUS LED RMI-Q in “Aquisition RMI-Q in “Aquisition mode” with empty mode” with full probe probe location location RMI-Q Deflect the stylus to select “Aquisition mode on”.
  • Page 15 Displayed for 5 seconds successfully Displayed for 20 seconds NOTE: Refer to the RMI-Q radio machine interface installation guide (Renishaw part no. The probe is in standby and the H-5687-8504) when partnering up to four radio system is ready for use.
  • Page 16 Mounting the probe on the machine table M10/M12 bolt and T nut – supplied by user.
  • Page 17 2.5 mm A/F 2.5 mm A/F × 2 × 4 0.7 Nm – 0.9 Nm 0.7 Nm – 0.9 Nm (0.52 lbf.ft – (0.52 lbf.ft – 0.66 lbf.ft) 0.66 lbf.ft)

  • Page 18: Stylus On-Centre Adjustment

    Stylus on-centre adjustment ±2.5 µm 2.5 mm A/F × 2 0.7 Nm – 0.9 Nm (0.52 lbf.ft – 0.66 lbf.ft)
  • Page 19 Adjust and lock Adjust ±2.5 µm 4 mm A/F × 2 4.6 Nm – 5.6 Nm (3.40 lbf.ft – 4.13 lbf.ft)

  • Page 20: Square Stylus Only

    Square stylus only ±100 µm 2 mm A/F 1.0 Nm – 1.2 Nm (0.74 lbf.ft – 0.89 lbf.ft)
  • Page 21 Slacken...
  • Page 22 Adjust ±5 µm 2.5 mm A/F 0.7 Nm – 0.9 Nm (0.52 lbf.ft – 0.66 lbf.ft) × 2...
  • Page 23 Tighten 2.5 mm A/F × 4 0.7 Nm – 0.9 Nm (0.52 lbf.ft – 0.66 lbf.ft)
  • Page 24 Cleaning Clean the window to maintain signal range.
  • Page 25 RMI-Q visual diagnostics P1, P2, P3, P4 SYSTEM STATUS LEDs Probe number empty KEY TO THE SYMBOLS Probe number full, in standby Continuously on Probe number full, operating Probe number full, 0.5 s Flashing compatibility error LOW BATTERY/START LED Selection error Battery is okay Aquisition/clearing pending, full and no M-code...
  • Page 26 This page is intentionally left blank.
  • Page 27 RENISHAW® and the probe symbol are registered trade marks of Renishaw plc. Renishaw product names, designations and the mark ‘apply innovation’ are trade marks of Renishaw plc or its subsidiaries. Other brand, product or company names are trade marks of their respective owners.
  • Page 28 1907/2006 (“REACH”) relating to products containing substances of very high concern (SVHCs) is available at: www.renishaw.com/REACH Renishaw plc declares under its sole responsibility that the RTS is FCC Information to user (USA only) in conformity with all relevant Union legislation.
  • Page 29 Patents Features of and features of similar products are the subject of one or more of the following patents and/or patent applications: US 6941671 CN 100466003 IN 215787 US 7145468 CN 101482402 JP 4237051 US 7285935 EP 1425550 JP 4575781 US 7486195 EP 1457786 JP 4773677...
  • Page 30 • 请勿对电池进行拆解、穿透、施加过度压力，或使其变 形。 安全须知 • 请勿吞咽电池。 • 请将电池放在儿童无法接触的地方。 用户须知 • 不要让电池受潮。 RTS 配有两节非充电型 AA 碱性电池。锂亚硫酰氯 • 不要将新旧电池或不同的电池类型混用，因为这会缩短 非充电型 AA 电池也可用于 RTS ；请参阅《 RTS 》安装指 电池寿命并损坏电池。 南（雷尼绍文档编号 H-5646-8514 ）。锂电池必须符合 • 如果电池损坏，请小心处理，不要触碰到电解液。 BS EN 62133:2013 (IEC 62133:2012) 标准。电池电量耗 尽之后，请勿尝试给电池充电。 在运输电池或本产品时，应确保符合国际和国家电池 运输条例。 注：锂电池被定义为危险品，空运有严格的控制。为了减...
  • Page 31 在所有涉及使用机床的应用中，建议采取保护眼睛的 措施。 RTS 有一个玻璃窗口。如果玻璃破碎，请务必小心， 以免受伤。 机床供应商 / 安装商须知 机床制造商有责任确保用户了解操作中存在的任何危 险，包括雷尼绍产品说明书中所述的危险，并应确保提供 充分的防护装置和安全联动装置。 如果测头测量失败，则有误发测头已复位状态信号的 可能。切勿单凭测头信号来停止机床运动。 设备安装商须知 雷尼绍所有设备的设计均符合相关的 EU 和 FCC 监管 要求。为使产品按照这些规定工作，设备安装商有责任保 证遵守以下指导原则： • 任何接口的安装位置必须远离任何潜在的电噪声源，如 变压器、伺服系统驱动装置等； • 所 有 0 伏 / 接 地 连 接 都 应 当 连 接 到 机 床 接 地 终 端 上...

  • Page 32: Radio Approvals

    Law This device should not be modified (otherwise the granted designation number will become invalid). Canada: IC: 3928A-RTS Malaysia: This device complies with Industry Canada licence- exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause...
  • Page 33 South Africa: 信;經發現有干擾現象時,應立即停用,並改善至無干擾時方 得繼續使用。 前項合法通信,指依電信法規定作業之無線電通信。低功率 South Korea: 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射 性電機設備之干擾。 KCC-CRM-R1P-RTS USA: FCC ID: KQGRTS Class A Equipment (Industrial Use) Iceland Israel Liechtenstein Montenegro Norway 이 기기는 업무용(A급) 전자파적합기기로서 판 매자 또는 사용자는 이 점을 주의하시기 바 라 며, Philippines Russia Switzerland Turkey 가정외의...
  • Page 34 This page is intentionally left blank.
  • Page 36 Renishaw plc +44 (0)1453 524524 +44 (0)1453 524901 New Mills, Wotton-under-Edge uk@renishaw.com Gloucestershire, GL12 8JR United Kingdom www.renishaw.com For worldwide contact details, visit www.renishaw.com/contact *H-5646-8500-03*...
