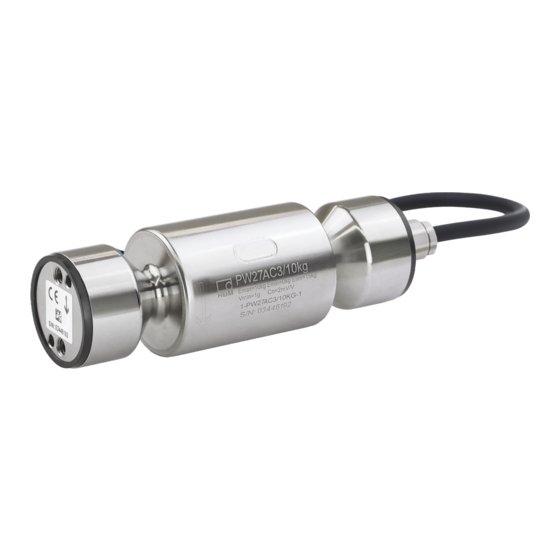

Summary of Contents for HBK PW27A

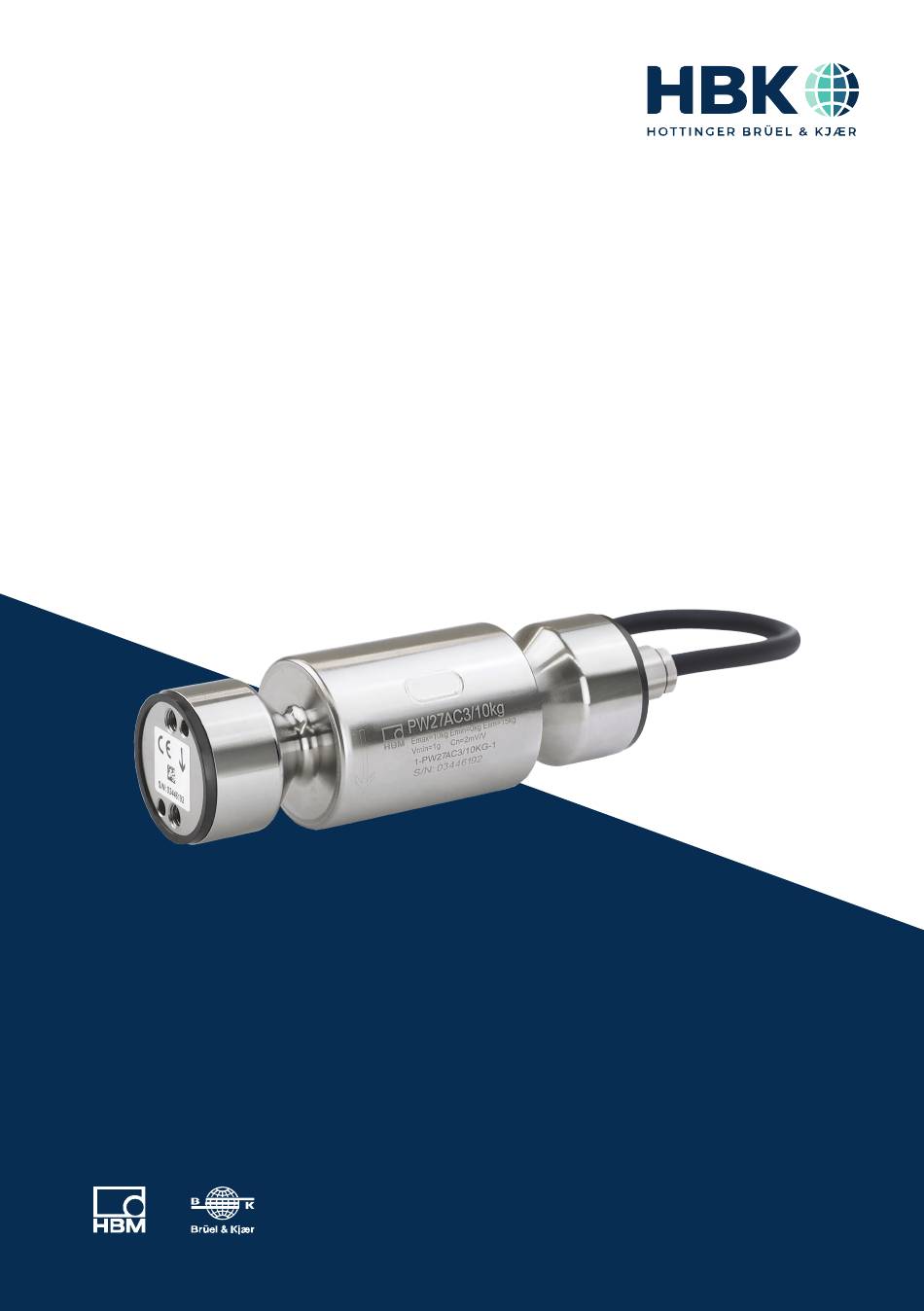

  • Page 1 ENGLISH DEUTSCH FRANÇAIS Mounting Instructions Montageanleitung Notice de montage PW27A...
  • Page 2 Hottinger Brüel & Kjaer GmbH Im Tiefen See 45 D-64293 Darmstadt Tel. +49 6151 803-0 Fax +49 6151 803-9100 info@hbkworld.com www.hbkworld.com Mat.: 7-0201.0002-1 DVS: A05201 02 Y00 01 06.2023 E Hottinger Brüel & Kjaer GmbH Subject to modifications. All product descriptions are for general information only.
  • Page 3 ENGLISH DEUTSCH FRANÇAIS Mounting Instructions PW27A...
  • Page 4: Table Of Contents

    ........... . PW27A...
  • Page 5: Safety Instructions

    On‐site regulations must be complied with at all times. Reference must be made to the residual dangers associated with the weighing technology. PW27A SAFETY INSTRUCTIONS...
  • Page 6 Knocking or dropping the load cells can damage them. Suitable retainers must be used during installation and operation to protect the load cells against overloading. No forces or moments must be directed via the spring element during mount­ ing. PW27A SAFETY INSTRUCTIONS...
  • Page 7: Markings Used

    Symbols on the product CE mark The CE mark enables the manufacturer to guarantee that the product com­ plies with the requirements of the relevant EC directives (the declaration of conformity is available at http://www.hbm.com/HBMdoc). PW27A MARKINGS USED...
  • Page 8 Statutory waste disposal mark In accordance with national and local environmental protection and mate­ rial recovery and recycling regulations, old devices that can no longer be used must be disposed of separately and not with normal household garbage. PW27A MARKINGS USED...
  • Page 9: Conditions On Site

    CONDITIONS ON SITE Series PW27A load cells are hermetically encapsulated and are therefore not at all sensitive to the influence of moisture and humidity. The transducers attain protection class IP68 (test conditions: 100 hours under 1 m water column) and IP69K (water at high pressure, steam cleaner), as per DIN EN60529.
  • Page 10: Mechanical Installation

    Recommended value for the specified property class. Please comply with the screw manufacturer's instructions with regard to screw dimensions. Load must not be applied to the side where the cable connection is located, as this would cause a force shunt. PW27A MECHANICAL INSTALLATION...
  • Page 11 M6 (HBM accessory number E-9278.0013) can be used for sealing the screws. * According to the EHEDG design guidelines a minimum distance of 6 mm is recommended for easy cleanability. Fig. 4.1 Installation according to hygienic design criteria PW27A MECHANICAL INSTALLATION...
  • Page 12: Electrical Connection

    Contact 2 (red) = Signal (-) Contact 3 (black) = Excitation (-) Contact 4 (blue) = Excitation (+) Contact 5 (green) = Sense (+) Contact 6 (gray) = Sense (-) blue marking Fig. 5.1 6‐wire cable connection PW27A ELECTRICAL CONNECTION...
  • Page 13: Cable Protection (Provided By Customer)

    The cable of a six‐wire load cell can be extended with a cable of the same type. Parallel connection Only single point load cells with an aligned output (nominal (rated) sensitivity and output resistance) are suitable for parallel connection. This option is not available with type PW27 single point load cells. PW27A ELECTRICAL CONNECTION...
  • Page 14: Emc Protection

    Do not route measurement cables parallel to electric cables, especially power lines and control circuits. If this is not possible, protect the measurement cable, for example with steel conduits. Avoid stray fields from transformers, motors and contact switches. PW27A ELECTRICAL CONNECTION...
  • Page 15: Dimensions

    DIMENSIONS 30° 13.3 15.3 130±0.2 Fitting depth, min. 3 mm 55±5 PW27A DIMENSIONS...
  • Page 16: Accessories

    ACCESSORIES One set of replacement seals, consisting of two seals (EPDM), order no. E-9278.0015-1 PW27A ACCESSORIES...
  • Page 17: Specifications

    SPECIFICATIONS Information Further product information can be found at www.hbm.com/pw. PW27A SPECIFICATIONS...
  • Page 18 PW27A SPECIFICATIONS...
  • Page 19 ENGLISH DEUTSCH FRANÇAIS Montageanleitung PW27A...
  • Page 20 ..........PW27A...
  • Page 21: Sicherheitshinweise

    Sicherheitstechnische Belange der Wägetechnik sind zusätzlich vom Anlagen­ planer/Ausrüster/Betreiber so zu planen, zu realisieren und zu verantworten, dass Rest­ gefahren minimiert werden. Jeweils existierende Vorschriften sind zu beachten. Auf Restgefahren im Zusammenhang mit der Wägetechnik ist hinzuweisen. PW27A SICHERHEITSHINWEISE...
  • Page 22 Als Präzisions‐Messelement sind Wägezellen bei der Montage und beim Transport sorgfäl­ tig zu behandeln. Stöße oder Fallenlassen können die Wägezellen beschädigen. Bei Einbau und Betrieb sind die Wägezellen durch geeignete Anschläge vor Überlastung zu schützen. Bei der Montage dürfen keine Kräfte und Momente über das Federelement geleitet werden. PW27A SICHERHEITSHINWEISE...
  • Page 23: Verwendete Kennzeichnungen

    Dokumente und Dateien. Auf dem Gerät angebrachte Symbole CE-Kennzeichnung Mit der CE‐Kennzeichnung garantiert der Hersteller, dass sein Produkt den Anforderungen der relevanten EG‐Richtlinien ent­ spricht (die Konformitätserklärung finden Sie auf der Website von HBM (www.hbm.com) unter HBMdoc). PW27A VERWENDETE KENNZEICHNUNGEN...
  • Page 24 Gesetzlich vorgeschriebene Kennzeichnung zur Entsorgung Nicht mehr gebrauchsfähige Altgeräte sind gemäß den nationa­ len und örtlichen Vorschriften für Umweltschutz und Rohstoff­ rückgewinnung getrennt von regulärem Hausmüll zu entsorgen. PW27A VERWENDETE KENNZEICHNUNGEN...
  • Page 25: Bedingungen Am Einbauort

    BEDINGUNGEN AM EINBAUORT Die Wägezellen der Serie PW27A sind hermetisch gekapselt und deshalb sehr unemp­ findlich gegen Feuchteeinwirkung. Die Aufnehmer erreichen die Schutzklasse IP68 (Prüf­ bedingungen: 100 Stunden unter 1 m Wassersäule) und IP69K (Wasser bei Hochdruck, Dampfstrahlreinigung) nach DIN EN 60529. Trotzdem sollten die Wägezellen gegen dau­...
  • Page 26: Mechanischer Einbau

    Max. Min. Festigkeits­ Anzugs­ Einschraubtiefe klasse moment Standard 14 mm 10 N⋅m Rostfrei 14 mm A2-70 oder A4-70 10 N⋅m Richtwert für die angegebene Festigkeitsklasse. Zur Auslegung von Schrauben beachten Sie bitte die entsprechenden Informationen der Schraubenhersteller PW27A MECHANISCHER EINBAU...
  • Page 27 USIT Dicht- und Unterlegscheiben 70 EPDM 291 für M6 (HBM Zubehör-Nr. E-9278.0013) verwendet werden. * Für eine einfache Reinigung ist nach den EHEDG Gestaltungsrichtlinien ein Mindestabstand von 6 mm empfohlen. Abb. 4.1 Einbau gemäß Hygienic Design Kriterien PW27A MECHANISCHER EINBAU...
  • Page 28: Elektrischer Anschluss

    Kontakt 2 (rot) = Signal (-) Kontakt 3 (schwarz) = Speisung (-) Kontakt 4 (blau) = Speisung (+) Kontakt 5 (grün) = Fühler (+) Kontakt 6 (grau) = Fühler (-) blaue Markierung Abb. 5.1 Anschluss mit 6‐adrigem Kabel PW27A ELEKTRISCHER ANSCHLUSS...
  • Page 29: Kabelschutz (Kundenseitig Vorzusehen)

    Sie auf eine einwandfreie Verbindung mit geringem Übergangswiderstand. Das Kabel einer Sechsleiter‐Wägezelle kann mit einem gleichartigen Kabel verlängert werden. Parallelschaltung Nur Plattform‐Wägezellen mit abgeglichenem Ausgang (Nennkennwert und Ausgangs­ widerstand) sind zur Parallelschaltung geeignet. Diese Option ist bei den Plattformwäge­ zellen‐Typen PW27 nicht lieferbar. PW27A ELEKTRISCHER ANSCHLUSS...
  • Page 30: Emv-Schutz

    Verwenden Sie nur abgeschirmte kapazitätsarme Messkabel (HBM‐Kabel erfüllen diese Bedingungen). Legen Sie die Messkabel nicht parallel zu Stromkabeln, insbesondere zu Starkstrom‐ und Steuerleitungen. Falls dies nicht möglich ist, schützen Sie die Messkabel, z. B. durch Stahlpanzerrohre. Meiden Sie Streufelder von Trafos, Motoren und Schützen PW27A ELEKTRISCHER ANSCHLUSS...
  • Page 31: Abmessungen

    ABMESSUNGEN 30° 15,3 130±0,2 Passungstiefe min. 3mm 55± PW27A ABMESSUNGEN...
  • Page 32: Zubehör

    ZUBEHÖR 1 Satz Ersatzdichtungen, bestehend aus 2 Stück Dichtungen (EPDM), Best.-Nr. E-9278.0015-1 PW27A ZUBEHÖR...
  • Page 33: Technische Daten

    TECHNISCHE DATEN Information Weitere Produktinformationen finden Sie unter www.hbm.com/de/pw. PW27A TECHNISCHE DATEN...
  • Page 34 PW27A TECHNISCHE DATEN...
  • Page 35 ENGLISH DEUTSCH FRANÇAIS Notice de montage PW27A...
  • Page 36 ........PW27A...
  • Page 37: Consignes De Sécurité

    Les performances des pesons et l'étendue de la livraison ne couvrent qu'une partie de la technique de pesage. La sécurité dans ce domaine doit également être conçue, mise en œuvre et prise en charge par l'ingénieur/le constructeur/l'opérateur de manière à minimiser les dangers résiduels. Les dispositions correspondantes en vigueur doivent PW27A CONSIGNES DE SÉCURITÉ...
  • Page 38 éditées par les caisses professionnelles d'assurance accident. Respecter en particulier les valeurs indiquées dans les caractéristiques techniques pour la charge limite (E la charge limite pour l'excentricité max., la charge latérale limite (E la charge de rupture. PW27A CONSIGNES DE SÉCURITÉ...
  • Page 39 être protégés des sur­ charges par des butées appropriées. Lors du montage, veiller à ce qu'aucune force et aucun moment ne soit appliqué sur le corps d'épreuve. PW27A CONSIGNES DE SÉCURITÉ...
  • Page 40: Marquages Utilisés

    écrits en italique. Marquages utilisés sur le produit Label CE Avec le marquage CE, le fabricant garantit que son produit est conforme aux exigences des directives CE qui s'y appliquent (Pour voir la déclaration de conformité visitez http://www.hbm.­ com/HBMdoc). PW27A MARQUAGES UTILISÉS...
  • Page 41 être séparés des déchets ménagers pour l'élimination. Pour obtenir plus d'informations sur l'élimination des déchets, veuillez vous adresser aux autorités locales ou au revendeur auquel vous avez acheté le produit. PW27A MARQUAGES UTILISÉS...
  • Page 42: Conditions Environnantes À Respecter

    CONDITIONS ENVIRONNANTES À RESPECTER Les pesons de la série PW27A sont fermés hermétiquement et sont donc particulièrement insensibles à l'humidité. Les capteurs atteignent la classe de protection IP68 (conditions d'essai: 100 heures sous 1 m de colonne d'eau) et IP69K (eau à haute pression, nettoyage au jet de vapeur) selon EN 60529.
  • Page 43: Montage Mécanique

    Valeur recommandée pour la classe de dureté indiquée. Pour la taille des vis, respecter les informations fournies par le fabricant de vis La charge ne doit pas être appliquée du côté du raccordement du câble afin d'éviter tout shunt de force. PW27A MONTAGE MÉCANIQUE...
  • Page 44 Freudenberg (accessoire HBM n° E-9278.0013). * Selon les lignes directrices de conception EHEDG, il est conseillé de respecter un écart minimum de 6 mm pour faciliter le nettoyage. Fig. 4.1 Montage selon les critères de conception hygiénique PW27A MONTAGE MÉCANIQUE...
  • Page 45: Raccordement Électrique

    Contact 2 (rouge) = signal (-) Contact 3 (noir) = alimentation (-) Contact 4 (bleu) = alimentation (+) Contact 5 (vert) = contre‐réaction (+) Contact 6 (gris) = contre‐réaction (-) Marquage bleu Fig. 5.1 Branchement avec un câble à 6 fils PW27A RACCORDEMENT ÉLECTRIQUE...
  • Page 46: Protection Du Câble (À Prévoir Par Le Client)

    Le câble d'un peson à six fils peut être rallongé avec un câble de même type. Branchement en parallèle Seuls les pesons plateformes avec sortie ajustée (sensibilité nominale et résistance de sortie) sont adaptés pour un branchement en parallèle. Cette option n'est pas disponible pour les pesons plateformes de type PW27. PW27A RACCORDEMENT ÉLECTRIQUE...
  • Page 47: Protection Cem

    électriques, notamment des lignes de puissance et de contrôle. Si cela n'est pas possible, protéger le câble de mesure, par ex. à l'aide de tubes en acier blindé. Éviter les champs de dispersion des transformateurs, moteurs et vannes. PW27A RACCORDEMENT ÉLECTRIQUE...
  • Page 48: Dimensions

    DIMENSIONS 30° 13,3 15,3 130±0,2 Profondeur d'ajustage mini. 55±5 3 mm PW27A DIMENSIONS...
  • Page 49: Accessoires

    ACCESSOIRES 1 jeu de garnitures d'étanchéité de rechange, comportant 2 garnitures d'étanchéité (EPDM), n° de commande E-9278.0015-1 PW27A ACCESSOIRES...
  • Page 50: Caractéristiques Techniques

    CARACTÉRISTIQUES TECHNIQUES Information Pour plus d'informations sur les produits, voir www.hbm.com/fr/pw. PW27A CARACTÉRISTIQUES TECHNIQUES...
  • Page 51 PW27A CARACTÉRISTIQUES TECHNIQUES...
