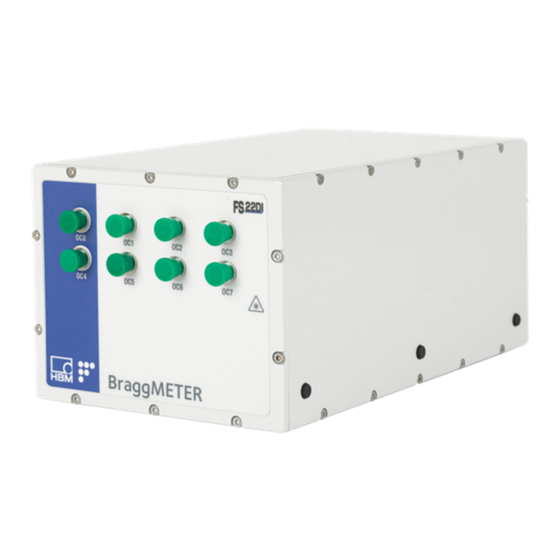

HBK FS22DI User Manual

Industrial braggmeter di
Hide thumbs Also See for FS22DI:
Table of Contents

Advertisement

Quick Links

Download this manual
ENGLISH
User Manual
FS22DI
Industrial BraggMETER DI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FS22DI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HBK FS22DI

Summary of Contents for HBK FS22DI

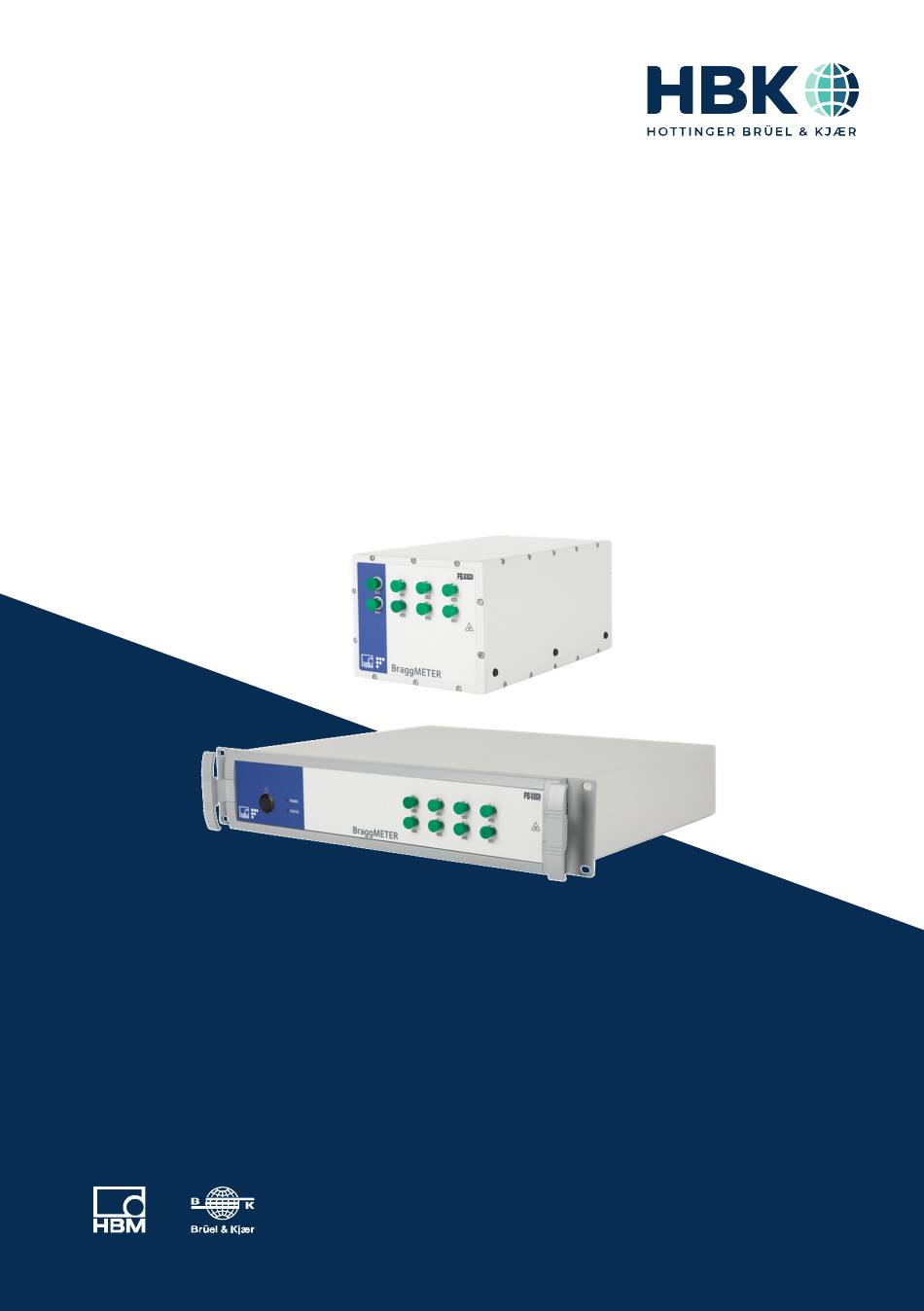

  • Page 1 ENGLISH User Manual FS22DI Industrial BraggMETER DI...
  • Page 2 Hottinger Brüel & Kjaer GmbH Im Tiefen See 45 D-64293 Darmstadt Tel. +49 6151 803-0 Fax +49 6151 803-9100 info@hbkworld.com www.hbkworld.com HBK FiberSensing, S.A. Rua Vasconcelos Costa, 277 4470-640 Maia Portugal Tel. +351 229 613 010 Fax +351 229 613 020 info.fs@hbkworld.com www.hbm.com/fs...

  • Page 3: Table Of Contents

    ............FS22DI...
  • Page 4 ........... . FS22DI...

  • Page 5: Technical Details

    The BraggMETER is available either in Standard and Rack-mountable formats. This Manual applies to the following equipment: K-FS22 (1000 S/s option) 1-FS22DI-ST/4CH 1-FS22DI-ST/8CH HBK FiberSensing interrogators are compatible with catman® software, a powerful tool for data acquisition and processing. System Components The Industrial BraggMETER DI set includes: Standard format...

  • Page 6: Regulatory And Certification Considerations

    HBK FiberSensing is a manufacturer registered in the ANREEE - "Associação Nacional para o Registo de Equipamentos Eléctricos e Electrónicos" under number PT001434.

  • Page 7: Class 1 Laser

    The optical connectors are subjected to maintenance and/or inspection. Please refer to section 4.3.1 for maintenance procedure. Do not attempt to open or repair a malfunction interrogator. It must be returned to HBK FiberSensing for repair and calibration. Certification 2.3.1...

  • Page 8: The Marking Used In This Document

    Emphasis Italics are used to emphasize and highlight text and See … identify references to sections, diagrams, or external documents and files. This marking indicates an action in a procedure FS22DI REGULATORY AND CERTIFICATION CONSIDERATIONS...

  • Page 9: Operation

    OPERATION Connectors 3.1.1 Standard Front view Back view Fig. 3.1 Front and back view of FS22DI Standard The connectors and buttons in Fig. 3.1 are: Optical Output Connectors (FC/APC) ON/OFF Button Power Connector Ethernet Connector POWER and STATUS LEDs FS22DI...

  • Page 10: Rack-Mountable

    3.1.2 Rack-Mountable Front view Back view Fig. 3.2 Front and back view of FS22DI Rack-Mountable The connectors and buttons in Fig. 3.2 are: ON/OFF Button POWER and STATUS LEDs Optical Output Connectors Power Connector Electric Fuse Safety Power Button Fans...

  • Page 11: Optical Connectors

    3.3.1 Ventilation The FS22DI is an electronic equipment with active ventilation, meaning that it uses fans for thermal control of the device. Fine dust particles over time can reduce the life time of optical and electronic components leading to a general degradation of the equipment, so it is important to prevent dust from entering the device.

  • Page 12: Calibration

    For this reason, a compulsory periodic calibration is not required. Nevertheless, for regulatory reasons or internal rules, a periodic certified calibration procedure is sometimes required. For those cases, the calibration service is available and can be requested to HBK FiberSensing. Switching On Pressing the “ON/OFF" button (number in Fig.

  • Page 13: Operating The Interrogator

    To configure your personal computer so that it is on the same subnet as the default for the interrogator, proceed as follows: On the control panel choose Network Connections Select the LAN connection. The window displayed in Fig. 3.6 will appear. Click on Properties. FS22DI OPERATION...
  • Page 14 Fig. 3.6 Local Area connection Status Select the Internet Protocol (TCP/IP) and click on the Properties button (Fig. 3.7). Fig. 3.7 Local Area connection properties FS22DI OPERATION...

  • Page 15: Interrogator Ip Address

    SCPI commands or the BraggMONITOR DI Software. See Section X.X Change IP for further details. The interrogator proceeds with a change of these properties when :SYST:IPAD:N.N.N.N:N.N.N.N:N.N.N.N command is sent. See section 5.1.3 “System com­ mands” under IP Address for further details. FS22DI OPERATION...

  • Page 16: Synchronization

    Information The interrogator default network properties are "10.0.0.150:255.0.0.0:0.0.0.0". 3.6.3 Synchronization In order to achieve synchronous measurements between different devices the NTP (Net­ work Time Protocol) synchronization via Ethernet must be used. FS22DI OPERATION...
  • Page 17 A hybrid measurement system is a system composed by differ­ ent equipment types and technologies that can be operated with different sampling rates. Taking the example of HBK families a hybrid system could be a combination of Interrogators with QuantumX.
  • Page 18 Offset: average deviation from time server Jitter: typical variation range of the offset value The clock synchronization is classified using the following offset intervals: <500 μs: excellent <1 ms: very good FS22DI OPERATION...

  • Page 19: Operation

    The FS22 - Industrial BraggMETER DI interrogator has five operational states: 0 error The error state corresponds to a malfunction of the optoelec­ tronic module of the FS22 - Industrial BraggMETER DI interroga­ tor. The system can recover from this state by resetting. FS22DI OPERATION...
  • Page 20 50 S/s. 5 warming-up The FS22 - Industrial BraggMETER DI interrogator starts on the warming-up state that enables the settling of the operation parameters and recall of the acquisition configuration. Fig. 3.12 Operational States and main commands FS22DI OPERATION...
  • Page 21 The FS22 - Industrial BraggMETER DI interrogator runs on the free acquisition state after receiving the :ACQUisition:STARt command. In this state the, FS22 - Industrial BraggMETER DI interrogator is responsive to all commands except: :ACQUisition:WAVElength:CONTinuous:STARt :ACQUisition:OSATrace:CONTinuous:STARt:X :ACQUisition:WAVElength:CONTinuous:NTPSync:STARt :SYSTem:TIME? :SYSTem:TIME:HH:MM:SS :SYSTem:DATE? :SYSTem:DATE:YYYY:MM:DD :SYST:IPAD:N.N.N.N:N.N.N.N:N.N.N.N FS22DI OPERATION...
  • Page 22 In case of power shortage when the FS22 - Industrial BraggMETER DI interrogator is run­ ning in the ready, free acquisition or continuous acquisition states, the operational state will maintain the stored acquisition settings once the power supply is reestablished. FS22DI OPERATION...

  • Page 23: Measuring Examples

    A branch can accommodate sensors with wavelengths corresponding to all standard HBK FS wavelengths. The number of sensors in a channel can vary if there is previous knowledge about the spectral range the sensors will cover. The major concern is the overlap of adjacent sensors.

  • Page 24: Definitions

    4.2.1 Wavelength The Wavelength value corresponds to the wavelength at the peak of the fiber Bragg grat­ ing reflection spectrum, commonly referred as Bragg wavelength (Fig. 4.2). FBG reflection spectrum Wavelength Wavelength in nm Fig. 4.2 Wavelength FS22DI MEASURING EXAMPLES...

  • Page 25: Power

    Power The Power value corresponds to the optical power reflected by the fiber Bragg grating at the peak wavelength (Fig. 4.3). It is a relative value from 0 to 4095. FBG reflection spectrum Power Fig. 4.3 Power FS22DI MEASURING EXAMPLES...

  • Page 26: Gain

    The gain is an amplification value applied to the received reflected signal in order to opti­ mize the measured power. It is a value from 0 to 255. FBG reflection spectrum with Gain = 10 FBG reflection spectrum with Gain = 0 Wavelength in nm Fig. 4.4 Gain FS22DI MEASURING EXAMPLES...

  • Page 27: Threshold

    It is a value from 200 to 3200 definable for each optical channel individually. It is measured bottom-up from the 0 (zero) power value. FBG reflection spectrum Detected peaks Disregarded peak Threshold Wavelength in nm Fig. 4.5 Threshold FS22DI MEASURING EXAMPLES...

  • Page 28: Common Measuring Difficulties

    Magnified Clean vs Dirty connector The most common effect of dirt on the connections is a large amount of broad band light being reflected at the connection, in both directions, meaning that the dynamic range for measurements becomes smaller. FS22DI MEASURING EXAMPLES...
  • Page 29 Dirt impact on sensor signal To clean an optical interrogator adapter, use an appropriate cleaner (1-FSCLEANER from HBK or similar). Insert it in the optical adapter, number in Fig. 4.8, and press it against the inside of the connector to clean.

  • Page 30: Broken Connector

    A broken sleeve will look as shown in Fig. 4.9. Fig. 4.9 Broken connectors To solve this problem you should contact HBK FiberSensing. 4.3.3 Reflective Fiber Ending Even when all connections have been performed correctly, it may occur that the interroga­...
  • Page 31 This will cause a Fabry-Pérot effect – the light will suffer multiple reflections inside the cavity creating sinusoidal background reflection. Fig. 4.11 shows a schematic representation of the reflected spectrum for the three pre­ sented cases. Fig. 4.11 Cut fiber effect FS22DI MEASURING EXAMPLES...

  • Page 32: Fuse Failure

    The Standard format of the interrogator is powered at 11­36 VDC, which means that the electrical protection should be granted by the power source or the adapter. If, by any chance, the power supply is overcome, the interrogator might be damaged and needs repair at HBK FiberSensing. FS22DI MEASURING EXAMPLES...

  • Page 33: Remote Communications

    Optical String. Channel Integer to: FS22 Single Channel : 0. FS22 Quad Cahnnel: 0 to 3. FS22 Octo Channel: 0 to 7. Character: Sensor Integer. Threshold Integer. From 200 to 3200. Gain Integer. From 0 to 255. FS22DI REMOTE COMMUNICATIONS...

  • Page 34: Common Commands

    Manufacturer, Unit Name and Revi­ sion, Number of Channels, Serial Number and Date. Example: Command :IDEN? Answer :ACK:HBM FiberSensing:FS22DI v2.0:08:046 840 200 188:20150202 Configuration Store configuration :STOR Stores FS22 - Industrial BraggMETER DI interrogator acquisi­ tion settings to the internal configuration file. The gain and threshold values of each channel are stored.

  • Page 35: System Commands

    Example: Command :STAT? Answer :ACK:2 5.1.3 System Commands Time Time query :SYST:TIME? Queries the FS22 - Industrial BraggMETER DI interrogator time. The interrogator returns hours, minutes and seconds sepa­ rated by ":". Example: Command :SYST:TIME? Answer :ACK:15:33:56 FS22DI REMOTE COMMUNICATIONS...
  • Page 36 Q: NTP Quality: 0 = not acceptable if offset >= 10ms; 1 = acceptable if offset <10ms. Offset: time difference in milliseconds between the server clock and host clock. Jitter: time difference in milliseconds between 2 samples. Example: FS22DI REMOTE COMMUNICATIONS...

  • Page 37: Acquisition Commands

    Answer :ACK Aquisition stop :ACQU:STOP Stops all types of acquisition of the fiber Bragg grating sen­ sors in all channels of the FS22 - Industrial BraggMETER DI, returning to the ready state. Example: Command :ACQU:STOP Answer :ACK FS22DI REMOTE COMMUNICATIONS...
  • Page 38 Threshold query :ACQU:CONF:THRE:CHAN:X? Queries the threshold value for the peak detection algorithm in the X channel of the FS22 - Industrial BraggMETER DI. The threshold is a value from 200 to 3200. Example: Command :ACQU:CONF:THRE:CHAN:0? Answer :ACK:1000 FS22DI REMOTE COMMUNICATIONS...
  • Page 39 "\r" and line feed "\n". The number of channels can be "A" to retrieve the wavelength of all sensors in all channels simul­ taneously. Wavelengths are presented in ascending values. Example: Command :ACQU:WAVE:CHAN:0? Answer :ACK:1560.0732,1554.9894,1547.8012,1 540.0954 FS22DI REMOTE COMMUNICATIONS...
  • Page 40 "\r" and line feed "\n" characters. This command can only be executed in the ready state with the acquisition rate set to 50 S/s (see section 3.5.3 “Operation”, subsection Operational States for state description). Example: Command :ACQU:OSAT:CHAN:1? Answer Port 3500: :ACK:...D13D03FA0B98...:...1563.1333,1 563.1194,1563.1054,1563.0915...\r\n FS22DI REMOTE COMMUNICATIONS...
  • Page 41 This command can only be executed in the ready state with the acquisition rate set to 50 S/s (see section 3.5.3 “Operation”, subsection Operational States for state descrip­ tion). Example: Command :ACQU:OSAT:CONT:STAR:CHAN:1 Answer Port 3500: :ACK Port 3365: :...D13D03FA0B98...:...1563.1333,1563. 1194,1563.1054,1563.0915...\r\n FS22DI REMOTE COMMUNICATIONS...
  • Page 42 "\r" and line feed "\n". This command can only be executed in the ready state (see section 3.6.4 “Operation”, subsection Operational States for state descrip­ tion). Example: Command :ACQU:WAVE:CONT:STAR Answer Port 3500: :ACK Port 3365: :1554.9891,1560.0732:1547.8027::: :TS:2017:02.20:11.13.25 :1554.9897,1560.0741:1547.8030::: :1554.9894,1560.0727:1547.8029::: :1554.9893,1560.0732:1547.8027::: FS22DI REMOTE COMMUNICATIONS...
  • Page 43 CH3/wvl0 + CH3/wvl1 + (…) c) Payload on interrogator with 8 optical channels: 4 bytes CH0/wvl0 + 4 bytes CH0/wvl1 + (…) + CH7/wvl0 + CH7/wvl1 + (…) with wavelengths in ascending order [wvl0 < wvl1 < (…) ]. FS22DI REMOTE COMMUNICATIONS...
  • Page 44 TIMESTAMP (LWORD1+LWORD2) LENGTH (24 bytes + payload length) * Sn - Number of sensors on optical connector n OC0_WL0** OC7_WL0 OC0_WL1 OC0_WL1 ** OCn_WLy – Wavelength number y on optical connector n Fig. 5.2 NTP answer scheme FS22DI REMOTE COMMUNICATIONS...

  • Page 45: Braggmonitor Di Software Details

    Using windows display settings with the size of text not set to 100% might compromise the correct visualization of BraggMONITOR DI software. 6.2.2 Software Installation To install HBK FiberSensing BraggMONITOR DI Software on a PC, please follow the described steps: Insert the provided disk with software in the PC; Run Setup.exe;...

  • Page 46: Software Uninstall

    The BraggMONITOR DI Software should run with full administrator privileges. To have these privileges when the operating system is Windows Vista or higher, right-click the BraggMONITOR DI Software icon and then select the "Run as administrator" option (see Fig. 6.2). FS22DI BRAGGMONITOR DI SOFTWARE DETAILS...
  • Page 47 To configure the application to always open with Administrator privileges, right-click on the software icon and select "Properties > Compatibility". Check the box "Run this pro­ gram as administrator" (see Fig. 6.2). Fig. 6.2 Set Run as administrator automatically FS22DI BRAGGMONITOR DI SOFTWARE DETAILS...

  • Page 48: Braggmonitor Di User Interface

    For that, press the “connect” button (number in Fig. 7.2). If the software finds the device, the “connect” button changes to “disconnect", as shown in Fig. 7.3, and the “start” button (number in Fig. 7.2) becomes active. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 49 Fig. 7.4) by the user. Fig. 7.4 Define IP Address Information The FS22 – Industrial BraggMETER DI interrogators default IP is 10.0.0.150 which is the IP Address used in the first connection with the BraggMONITOR DI Software. FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 50: Acquisition

    The data file is organized in columns as follows, see Fig. 7.6. column – UTC Date: «DD-MM-YYYY» column – UTC Time: «HH:MM:SS.SSS» column – Sample: Sample number Following columns – Sensor Name (Formula): measured values (formula computed) ordered by optical channel, then by wavelength. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 51 Import data from text file in Excel Then it is necessary to complete text import wizard. All options must be set as shown in Fig. 7.8, Fig. 7.9, Fig. 7.10, Fig. 7.11 and Fig. 7.12. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 52 Fig. 7.8 BraggMONITOR DI Data files Fig. 7.9 Excel text Import Wizard Step 1 FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 53 Fig. 7.10 Excel text Import Wizard Step 2 Fig. 7.11 Excel text Import Wizard Step 3 FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 54: Software And Interrogator Information

    Exit Application To exit BraggMONITOR DI Software application, press the “exit” button (number Fig. 7.2). Graphical Area The graphical area is divided into six tabs: Graphical View Numerical View Spectral View FFT View Configuration SCPI Interface FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 55: Graphical View

    7.2.2 Numerical View The Numeric View shows the acquired values (in accordance to the configuration formula - see table Tab. 7.1 on page 64) for each optical channel, organized in columns as in Fig. 7.14. FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 56: Spectral View

    1500 nm to 1600 nm with an approx. 15 pm sampling resolution (number in Fig. 7.15). For each detected FBG peak the pair of wavelength and power values are represented in a table format (number in Fig. 7.15) FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 57 Datasheet. Measurement Configuration Measurement settings can influence sensor readings. Gain and Threshold values should be defined according to the FBG sensing network status, so that peak amplitude is FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 58: Fft View

    Fig. 7.16) as defined on the Graphical View tab. This list of sensors cannot be edited on the FFT View tab. To enable/disable any sensor, tick the sensor tick box. Information To choose sensors that are not present in the sensors list, edit the list on the Graphical View tab. FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 59: Configuration

    The easiest way to start measuring and creating a configuration is to perform an auto- scan (refer to section «AutoScan» on page 60). FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 60 Sensor Names are set by default as CHxSzzz, where x is the optical channel and zzz is the number of the sensor on that optical channel ordered by wavelength. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 61 Connection to the interrogator with the updated IP will only be effective if it was kept under the same range as the defined on the PC. Otherwise the network properties of the PC should be changed and BraggMONITOR DI restarted. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 62 To configure a sensor individually, select its cell and click on the “edit” button (number in Fig. 7.17). A dialog box will pop up (Fig. 7.20). Additional info about this dialogue box might be found at Tab. 7.1. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 63 Each sensor has its own operation range. For instance, if we have a central wavelength of 1522.659 nm and a range span­ ning 3 nm, only wavelength values between 1525.659 and 1519.659 are accepted. Wavelength values out of the defined bands are returned as -998. FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 64 Save and Load configuration Acquisition configuration can be saved in .txt extension file by pressing the “save” button (number in Fig. 7.17) and choosing a save path as shown in Fig. 7.21. Fig. 7.21 Save configuration FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 65 This file might be edited in Notepad or Excel (see «Opening Data in Microsoft Excel» sec­ tion on page 51) and saved as .txt extension file after editing. Configuration file can always be loaded by pressing the “load” button (number Fig. 7.17) and picking the configuration file (see Fig. 7.23). FS22DI BRAGGMONITOR DI USER INTERFACE...

  • Page 66: Scpi Interface

    Fig. 7.24). The interrogator's answers appear on the command board (number in Fig. 7.24). Each time new answers are displayed, older ones are pushed down. To delete the previ­ ous answers, press the “clear” button (number in Fig. 7.24). FS22DI BRAGGMONITOR DI USER INTERFACE...
  • Page 67 Each time a new command is sent, a shortcut at the scroll down box is created, as shown in Fig. 7.25. Fig. 7.25 Previously sent comments selection Important When the user leaves the SCPI Interface tab, the interrogator status is changed and sched­ uled acquisitions are disabled. FS22DI BRAGGMONITOR DI USER INTERFACE...
