Directed DS3+ Installation Manual page 9

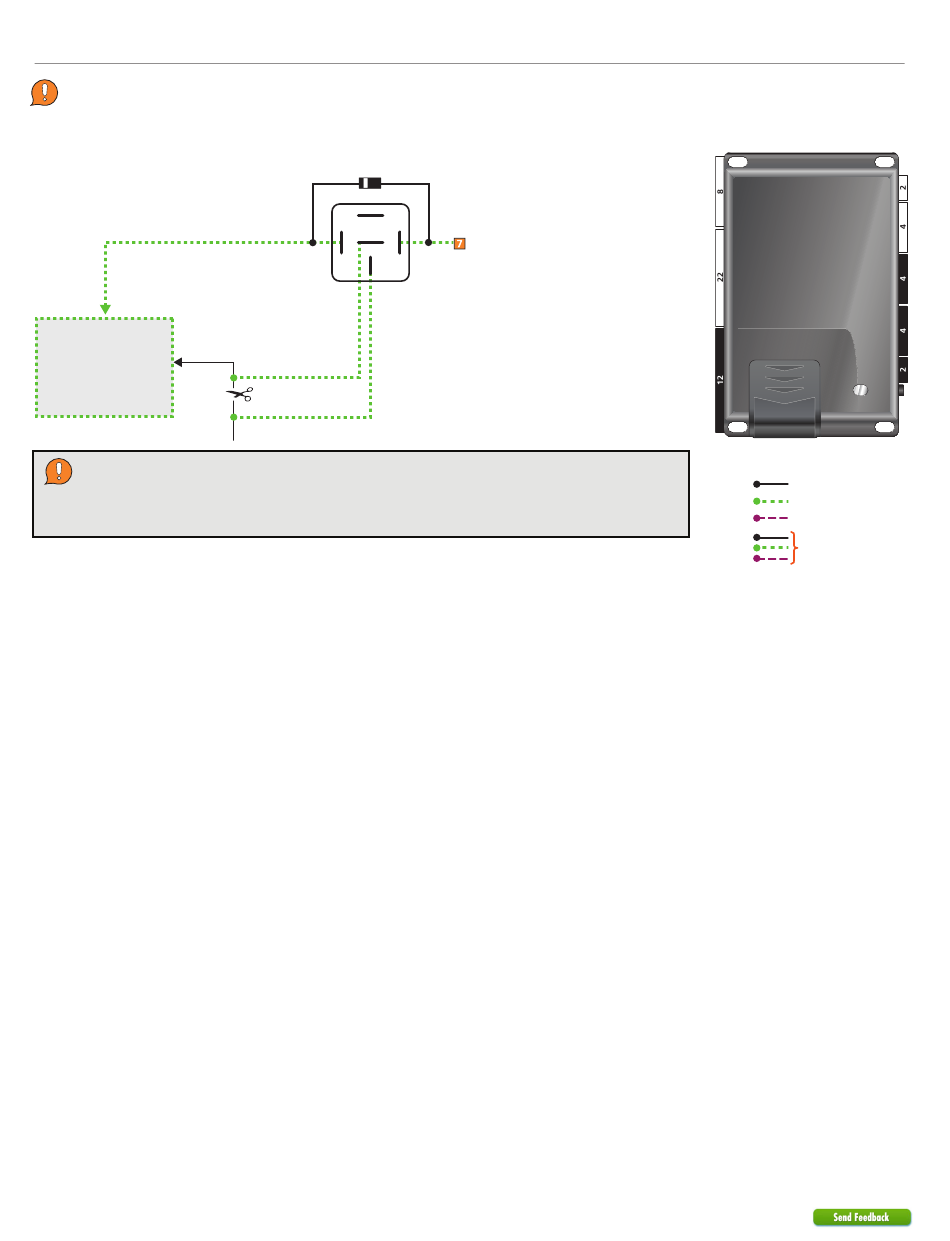

Optional starter disable connection
When using an external relay, use a 1N4002 diode or larger.
Refer to the
Vehicle connections
section for wire
and connector
Cut
details.
Important:
When flashing your module for Security Only, the Ground When Armed (GWA)
function is pre-configured. When flashing your module for Remote Start & Security, you must
manually assign the designated output to Anti Grind (AG) Starter Kill. (Applicable to CORE 194+.)
9
933.AUDI02 3.16.195.3 2017 Audi Q5
©2022 VOXX•DEI LLC. All rights reserved.
1A Diode (1N4002+)
87
(+) Ignition
87a
86 85
30
Starter (connector side)
Starter (vehicle side)
(-) Ground When Armed (GWA) Output: Blue/White: 2
Legend:
Mandatory Connections
Security Only
Remote Start Only
Remote Start + Security
