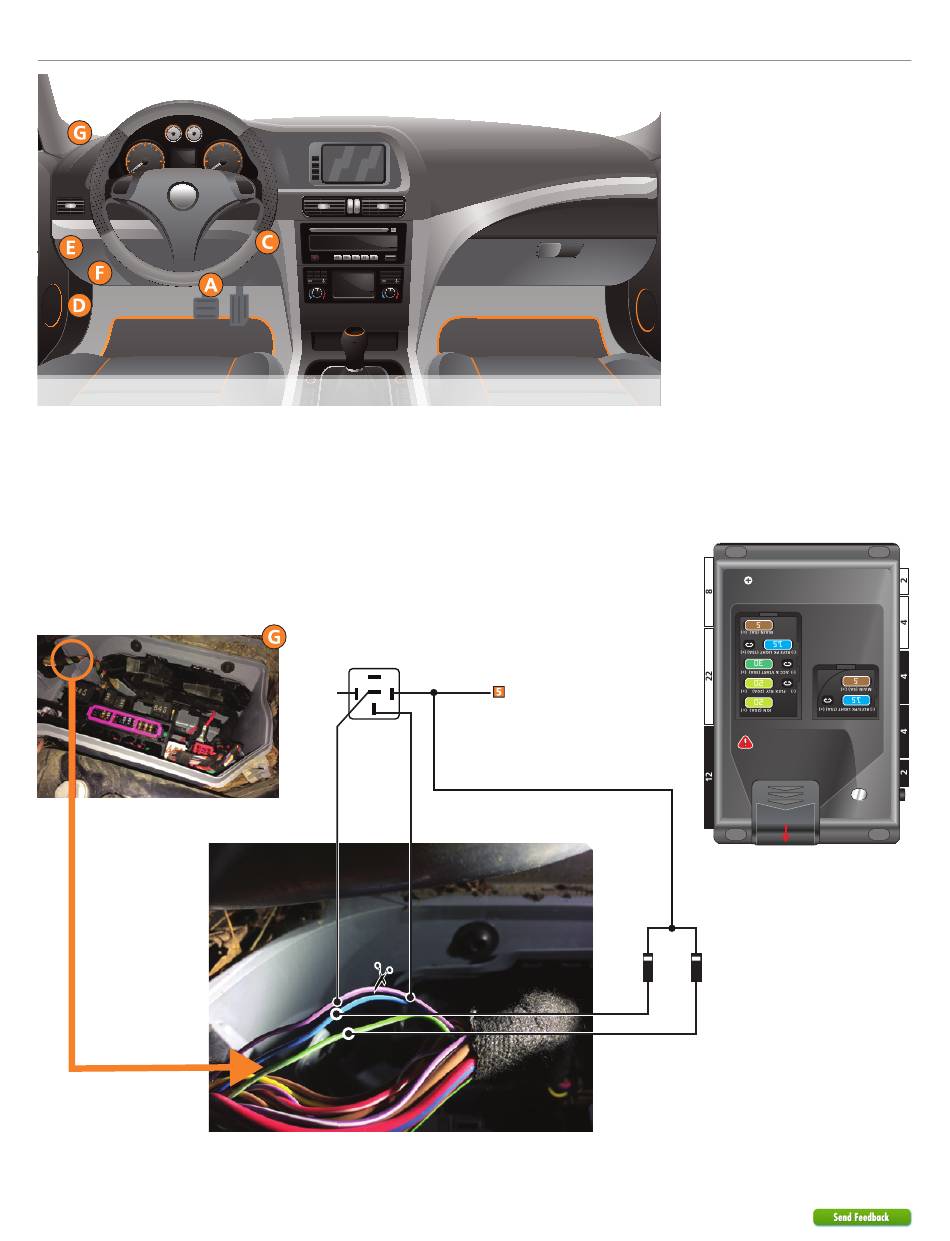

Locating components in the vehicle

UNDERHOOD
ECM Engine Control Module
(left side of the Engine Compartment)
The wiper plastic cover needs to be removed
and the windshield washer tube.
8
933.AUDI02 3.16.195.3 2017 Audi Q5
©2022 VOXX•DEI LLC. All rights reserved.
87
86 85
(+)12V
87a
30
Violet/Gray
CUT
(-) Clutch Activation Output: White: 5 & 11
2 x 1A
Diodes
Blue/Gray
Green/Gray
A module can also be used for
this installation.
IMPORTANT:
Position the
fuses correctly!
