Directed DS3+ Installation Manual page 11

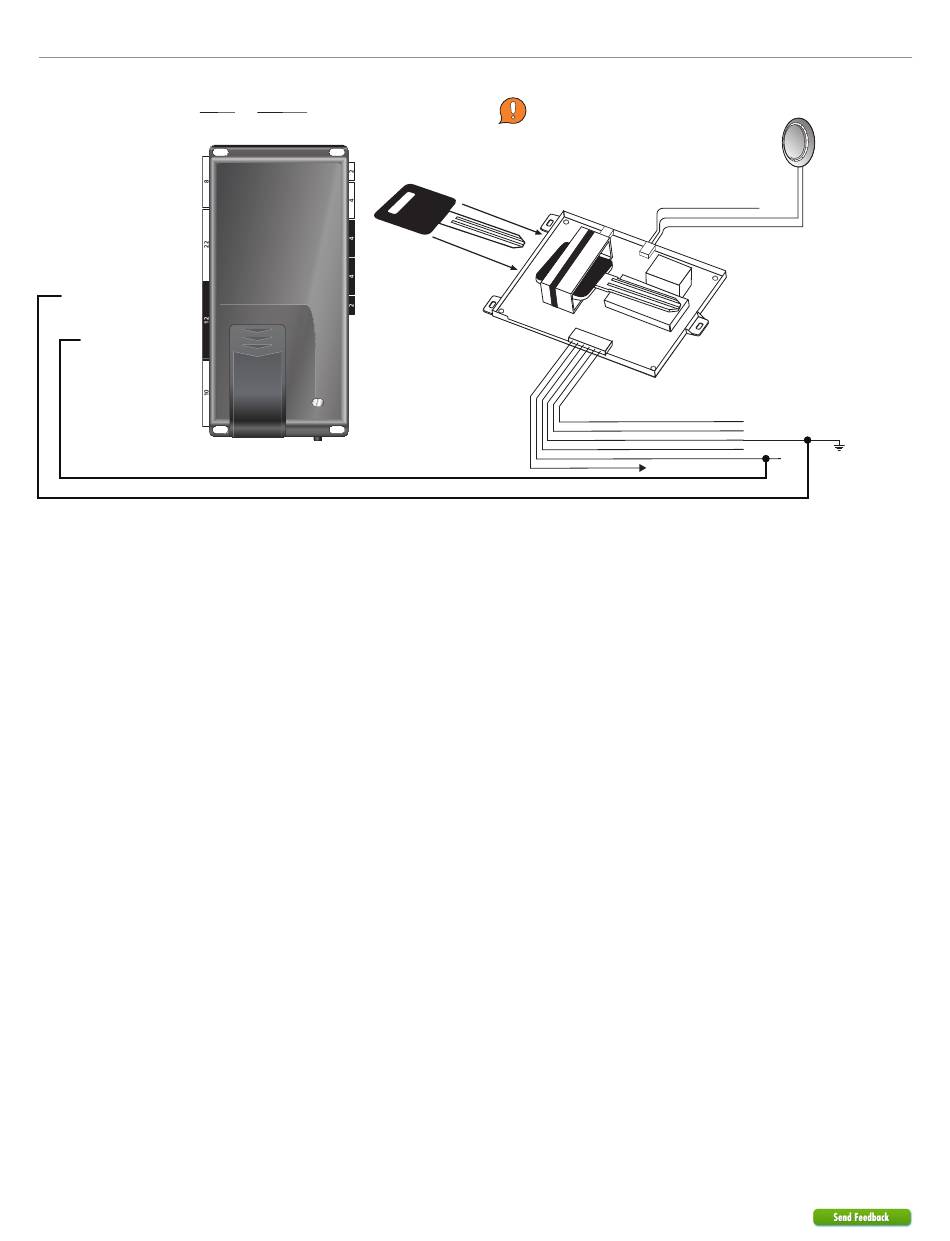

Method 2: Immobilizer interface using 556UXL
556UXL is sold SEPARATELY.
Note: The discontinued 556U or 556UW can
still be used for the installation.
N.O. Relay 2: Lt. Green/Red: 7
COM Relay 2: Lt. Green: 8
IMPORTANT!: Not all OEM remotes can be inserted in 556UXL because of their size.
Make sure the key will fit, otherwise it is recommended to use a different method.
11
933.AUDI02 3.16.195.3 2017 Audi Q5
©2022 VOXX•DEI LLC. All rights reserved.
Move 556UXL loop as close to the
front of ignition cylinder (OEM
Immobilizer Receiver) as possible.
Test and secure mounted loop
before reassembling the vehicle.
Black/White - NOT USED
Black/Red
Black
N/A: Green, pin 6
N/A: Violet, pin 5
(-) Ground: Black, pin 4
N/A: Pink, pin 3
(-) GWR: Blue, pin 2
(+)12V : Red, pin 1
(+)12V
OEM
Immobilizer
Receiver
