Savant Director HST-DIRECTOR Quick Reference Manual

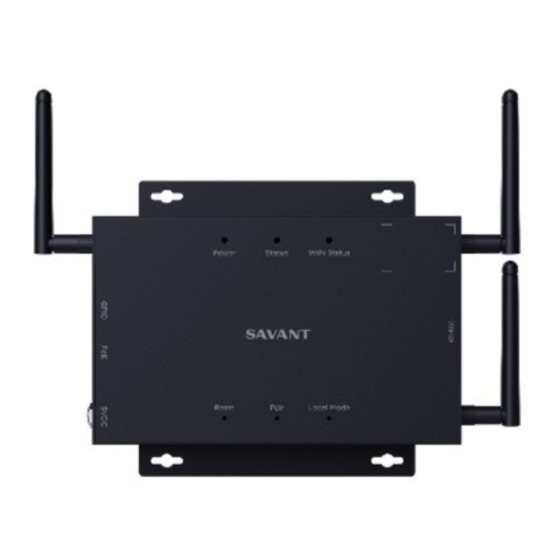

Savant Director
Quick Reference Guide

Box Contents

(1) HST-DIRECTOR
(1) 5V DC (15 W) power supply (025-0250)
(2) 3-pin screw down connector (028-0665)
(3) 2.4 - 5.0 GHz dual band antenna (045-0902)
(1) Side mount chassis bracket (071-1215)
(2) M3 x 6mm flat head bracket mounting screws (039-0001)
(1) Product Regulatory Statement (009-1950)

Specifications

Environmental
Temperature -4° to 122° F (-20° to 50° C)
Humidity Up to 90% Relative Humidity (non condensing)
Indoor use unless installed in an IP65 rated
Location
plastic enclosure.
Dimensions and Weights
Height
4.3 inch
HST-Director
(10.9 cm)
3.0 inch
Shipping
(7.6 cm)
Power
Power Supply 120V AC to 5V DC (3A) external supply
Maximum Power 15 Watts
Power over Ethernet IEEE 802.3af
Standards
Bluetooth Bluetooth Low Energy 5.1 (BLE)
Wi-Fi 2.4/5.0 GHz IEEE 802.11 a/b/g/n/ac
Ethernet IEEE 802.3af
Regulatory
FCC Part 15
Safety and
Emissions
RoHs Compliant
FCC ID: ASU-DIRECTOR
IC: 10052A-DIRECTOR
Contains FCC ID: VPYLB1ZM
Contains IC: 772C-LB1ZM
Minimum Supported Release
da Vinci 10.2
Additional Information
– The Director can communicate with up to 40 power and lighting
modules.
– During installation, limit the distance between the Director and the
power/lighting modules to 6
– Wi-Fi is available when a wired Ethernet connection is not
accessible.
HST-DIRECTOR - Quick Reference Guide | 009-2156-01
Copyright ©2023 Savant Systems, Inc. | 230503
Width Depth Weight
7.5 inch 1.6 inch 1.5 lbs
(19.1 cm) (4.1 cm) (.68 kg)
9.0 inch 9.0 inch 3.1 lbs
(22.9 cm) (22.9 cm) (1.41 kg)
IC
1/2
feet (2 meters) or less.

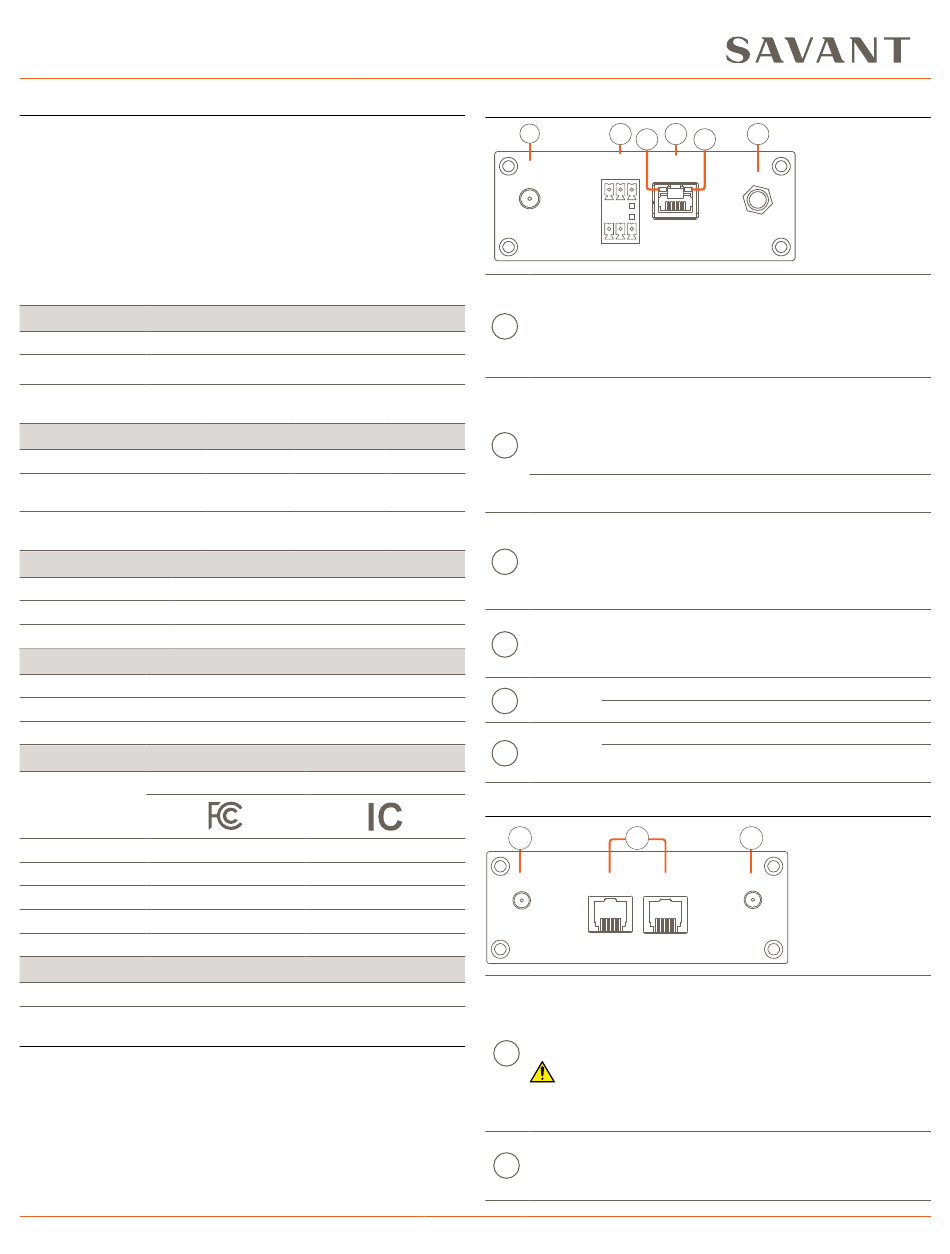

Left Side Panel
B
A
GPIO
G 1 PD
WIFI
G 2 PD
Wi-Fi - Screw the supplied dual-band antenna onto the SMA
connector. When Ethernet access is unavailable, use Wi-Fi to
connect to the Home Network.
A
IMPORTANT: Use only the supplied 5V DC power supply when
connecting the Director to a Wi-Fi network. PoE shouldn't be
used to power devices that communicate over Wi-Fi.
GPIO Input - When configured as an input port, the processor
looks for one of the following:
Low state = <0.8V DC.
B
High state = >2.4V DC.
Minimum = 0V DC / Maximum = 12V DC
GPIO Output - When configured as an output, the port will
provide a binary output of either 0 or 12V DC (150mA max)
PoE - Ethernet port
– 8-pin RJ-45 port
C
– Supports Power Over Ethernet (802.3af compliant)
–
10/100/1000 Base-T auto negotiating port with link /
activity LEDs
Input Power - Connect the supplied power supply between
the 5V DC port on the side panel and a surge protected 120-
D
240V AC 50/60 Hz source. Use this power supply when not
utilizing Power over Ethernet (PoE).
Solid Yellow - Network Speed = 100/1000 Mbps
E
Link LED
Off - Network Speed < 100 Mbps
Green Blinking - Tx/Rx activity
Activity
F
Off - No activity. Verify the Ethernet cable is
LED
plugged securely into the local Ethernet switch.
Right Side Panel
B A
RS485
BLE 2
RS-485 - Used to control devices with RS-485 input ports.
Pin 4 - Data (B-)
Pin 5 - Data (A+)
Pin 7/8 - Gnd
A
IMPORTANT! Termination resistors are pre-populated on
each RS-485 port. Because of this, the Director must be
placed at the end of the RS-485 chain.
BLE - Screw the supplied antennas onto both SMA
connectors. With the antennas installed, the Director can
B
communicate with the power and lighting modules over
Bluetooth Low Energy.
1 of 4
C D
E F
PoE
5VDC
B
BLE
1
