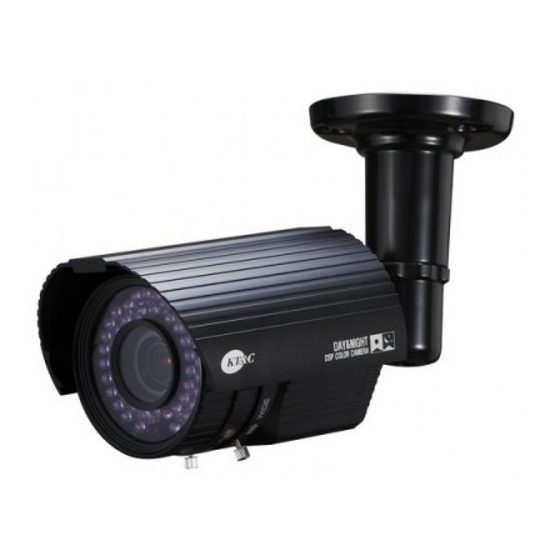

KT&C KPC-N700 Manual

3
(Only use the regulated power supply marked Class 2)
SPECIAL FEATURES
Heater
HEATER
Built in heater protects the camera from low temperature.
(Operating temperature with Heater:-40℃)
External Zoom & Focus Adjustable
External Zoom & Focus Adjustable
Super Night Vision Camera
* Thank you for choosing our high quality camera.
Before attempting to connect or operate, please read and follow these instructions.
GENERAL
These CCD video cameras employ a 1/3"Sony Super HAD CCD solid-state
imaging device which provide superior performance.
With its low current consumption under 1.5A, these units can be easily
installed in any outdoor conditions with an excellent reliability record.
Service Video connector & Dip switches
1 ATW
(Automatic Tracing White Balance)
2 F/L
(FLICKERLESS)
3 BLC
(Back Light Compensation)
4 AGC
(Automatic Gain Control)
ATW F/L
Installation is simple made by the adjustable
DC Volume and Dip Switches.
The Service Video Connector also provides
the installer with an easy way of configuring
the camera.
M0 3 5 - N 7 0 0 -0 0 2
ON : ATW / OFF : Push
ON / OFF
ON / OFF
ON : MAX / OFF : Min
BLC AGC
