KT&C KPC-N650 Manual

Key Features

• Special DWS(Dual Window Structure) to prevent
IR light reflection.
• Dustproof window glass.
• Built-in cooling fan
• 20ea of 850nm Infrared LEDs. (Max. 15m)
• f=2.8mm ~ 11.0mm Mechanical Day/Night DC auto Iris Lens/F1.4
124.3 ˚ ~ 30.2 ˚
• Dipswitch Control
(AGC, BLC, Time, Sensitivity, DC drive control volume)

General Features

• Sony SS-HQ1 Chipset. (550 TV Lines)
• Mechanical Day & Night(ICR).
• Vandalproof with PC front glass.
• Separate control board to prolong the life span of the LEDs.
• Optimum circuit board to suppress heat from the LEDs.
• Weatherproof.

ACCESSORIES FURNISHED

Accessories Mounting Bracket
1
Q' ty
Option

SPECIAL FEATURES

1. AIR - CIRCULATION SYSTEM

• Operation
- Turns on with the IR LEDs.
• Diagram
AIR INPUT
AIR INPUT
It is equipped with naturally air flow in-out structure
and built-in Cooling fan system.
This system discharge out the heat and
moisture rapidly and naturally
• Functions
- Protects the camera from the Heat from LEDs.
- Dehumidifies the Cameras interior.
Screw Manual Wrench
3 1
OUTPUT

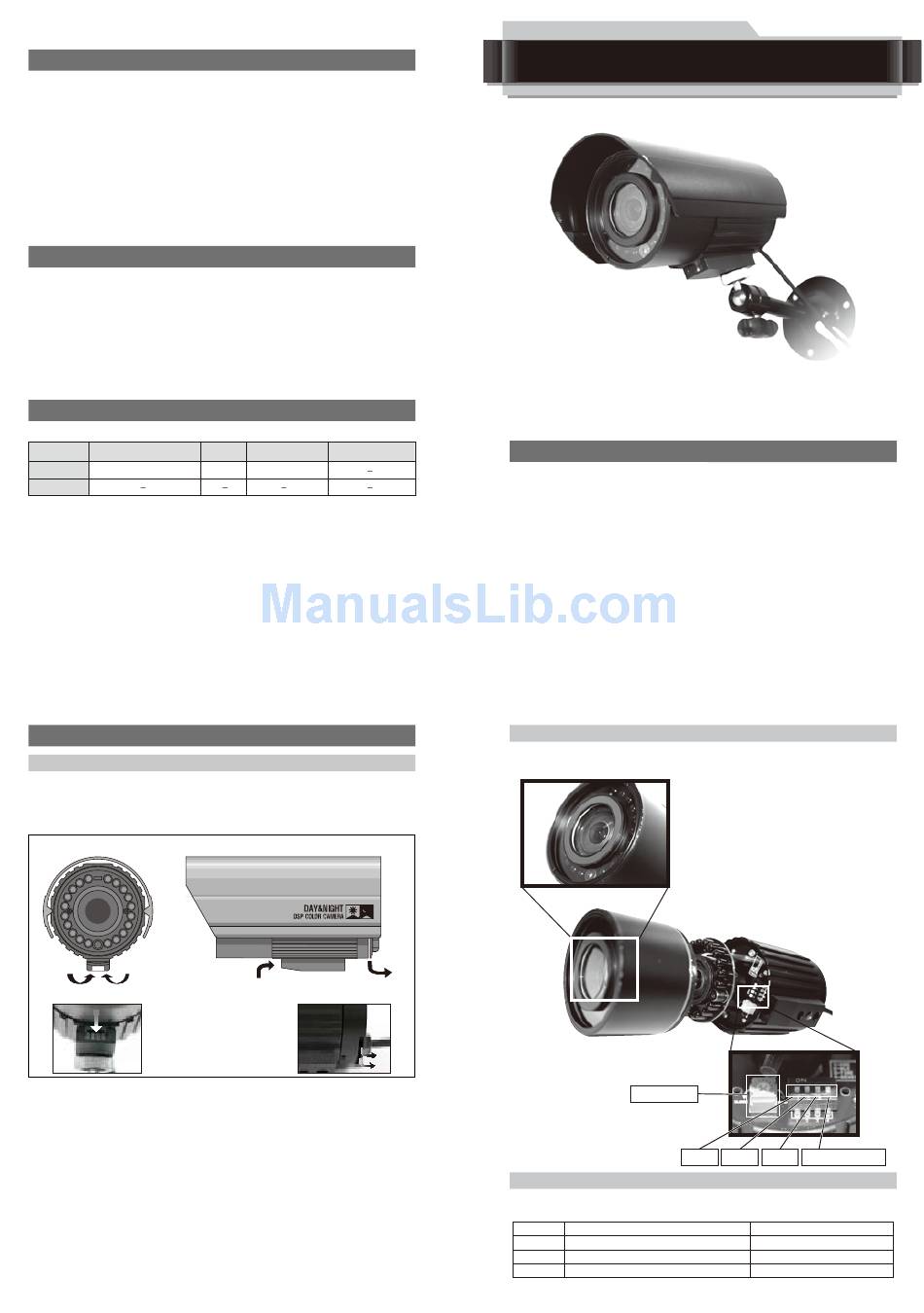

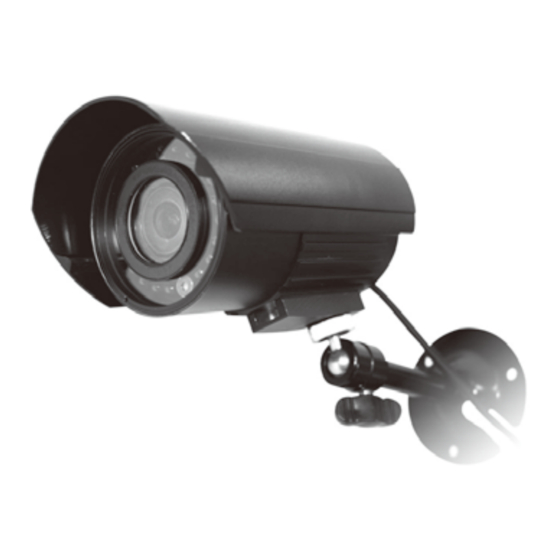

Super Night Vision Camera
* Thank you for choosing our high quality camera. Before attempting to connect or
operate, please read and follow these instructions.

GENERAL

The following CCD surveillance camera employs a 1/3"Sony Super HAD CCD solid-state
imaging device that provides superior performance. These units can be easily
installed in most outdoor locations along with a low current consumption of 1A.
These cameras are not only easily installed, but also boast an excellent reliability
record.
f=2.8~11mm Varifocal Auto-Iris Lens with 20ea infrared LEDs.
The LEDs allow a precise picture for optimal distances during any dark hours.
The front window's Dual Window Structure (DWS) prevents IR reflection at night time.

2. DWS (Dual Window Structure)

DC LEVEL
3.Dip switches
Installation is made simply by the adjustable
DC Volume and Dip Switches.
AGC (Auto Gain Control)
1
2 BLC (Back Light Compensation)
3 TIME (LED ON/OFF TIME CONTROL)
4
SENSITIVITY (LED ON/OFF Level)
M044-N650-001
- Antireflection against
IR LED Lighting
- Cylindrical construction
inside front cap
AGC BLC TIME SENSITIVITY
ON : MIN / OFF : MAX
ON / OFF
ON : 5 sec / OFF : 10 sec
ON(1LUX) / OFF(2LUX)
