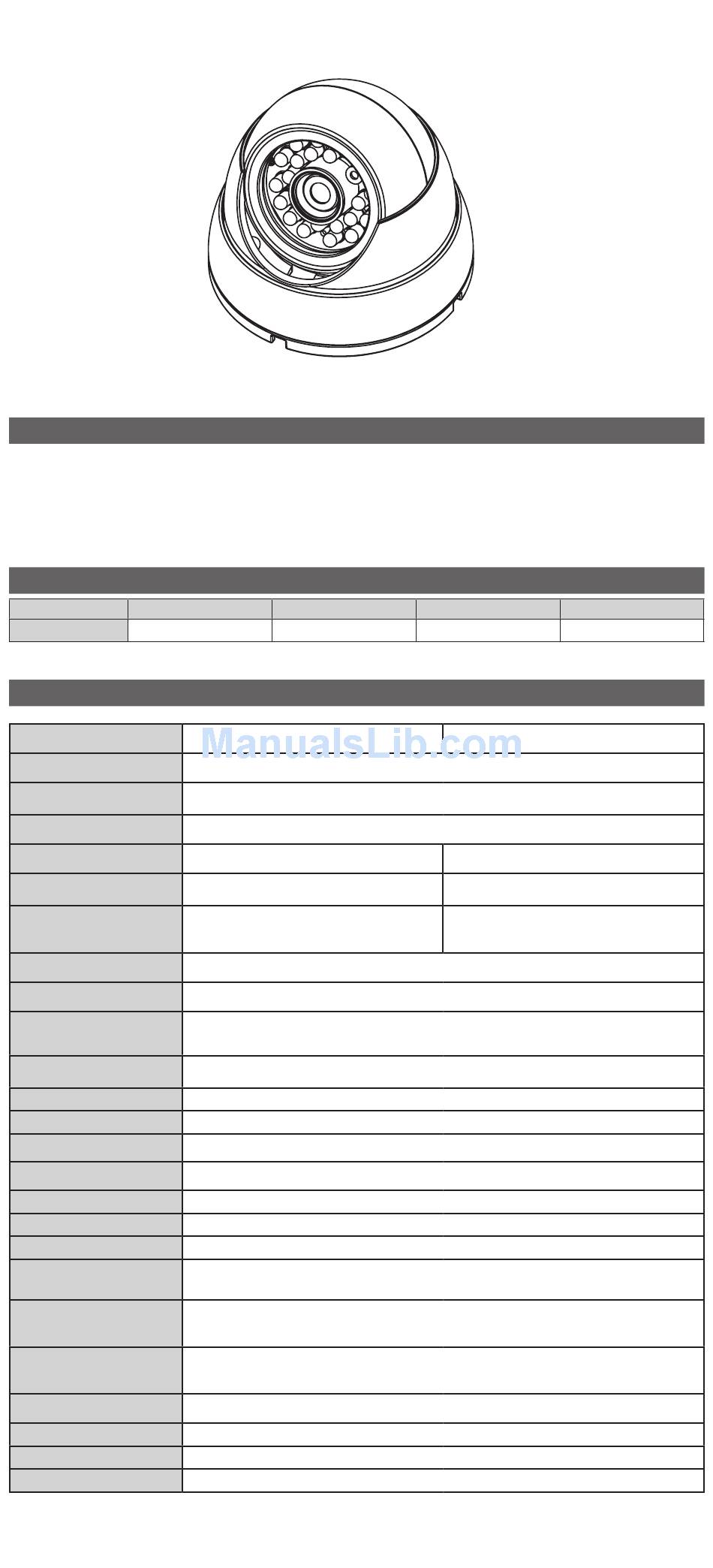

KT&C KPC-ND521NU Operation Manual

ALUMINUM IR TURRET DOME CAMERA
O PE R ATI ON MA NUA L
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these instructions.
KEY FEATURES
These CCD video cameras employ a SONY 1/3" CCD solid-state image device which provides
superior performance.
These cameras can be installed easily in most indoor and outdoor locations with a very low current
consumption of 300mA or less.
These cameras are not only easy to install but achieve an excellent reliability record.
ACCESSORIES FURNISHED
Accessories
Q'ty
SPECIFICATIONS
Signal Format
Image Device
Scanning System
H.Resolution
Total Pixels
Effective Pixels
Electronic
Shutter Speed
S/N Ratio
Gamma
Min. Illumination
Sync System
Video Output
Day & Night
Lens
IR LED
IR LED Distance
IR LED Half Angle
IP Rating
Power
Consumption
Operating
Temperature
Storage
Temperature
Operating Humidity
Weight
Manual Pan & Tilt
Dimension
Specifications and designs are subject to change for improving the functionality of this product without notice.
Screw Plastic Anchors
4
NTSC
1020(H) X 508(V)
976(H) X 494(V)
1/60~1/100,000sec
Max. 300mA (IR LED ON) / Max. 80mA (IR LED OFF)
4
1/3" 960H SONY EXview HAD CCD II
2 : 1 Interlace
700TV Lines
More than 50dB(AGC OFF)
r =0.45
0 Lux (IR LED ON)
Internal
1.0 Vp-p Composite 75(Ω) unbalanced
Digital Day & Night
Board Lens (f=3.6mm / F=2.0)
850nm, 20ea
Up to 20m
±22 Degree
IP66
DC12V (±10%),
14°F~122°F (-10°C~+50°C)
-4°F~140°F (-20°C~+60°C)
Less than 80%
Approx. 320g
Pan 360° / Tilt 140°
93(Ø) * 70mm
Template
1
PAL
1020(H) X 596(V)
976(H) X 582(V)
1/50~1/100,000sec
Manual
1
