Summary of Contents for XMark Fitness XM-7629

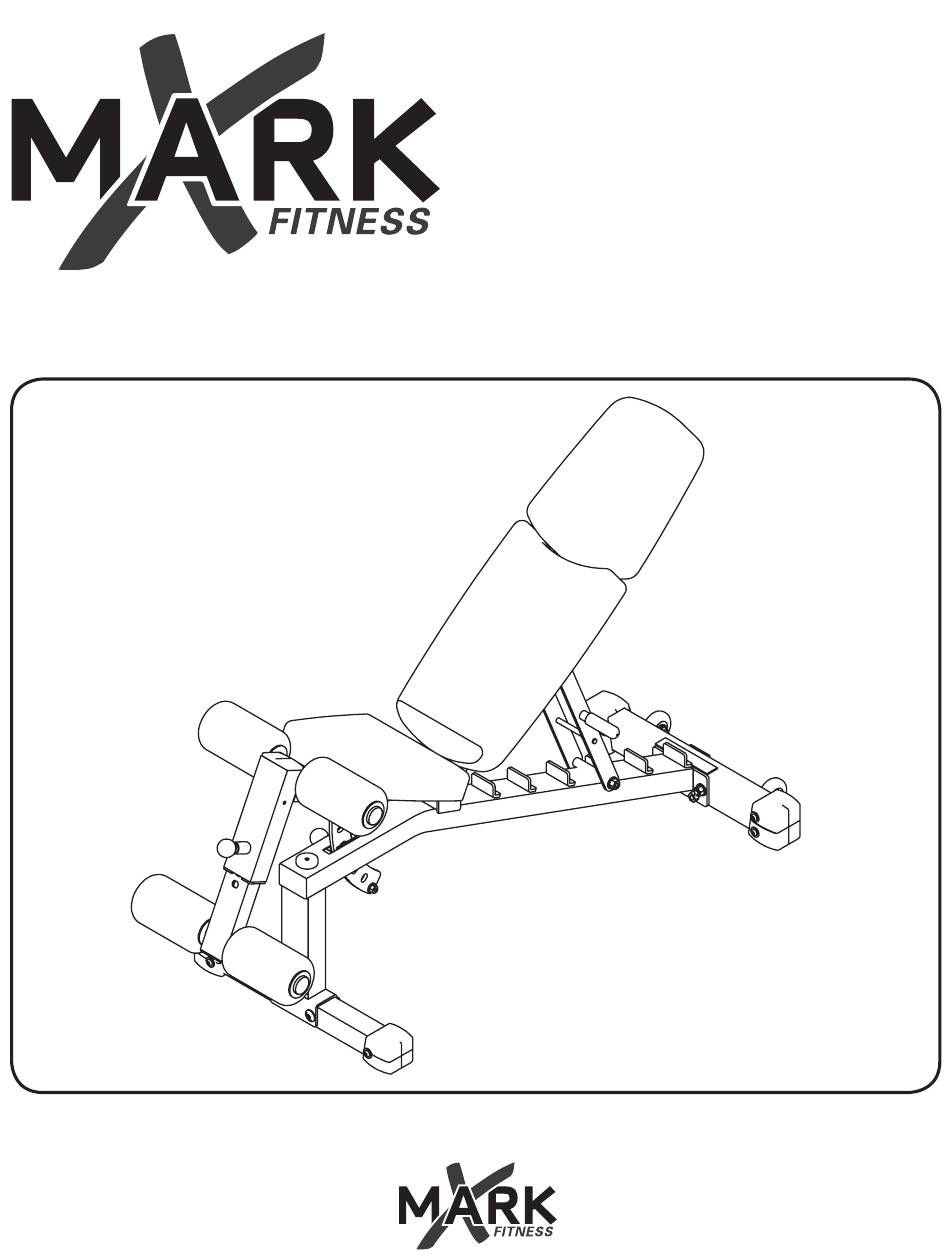

- Page 1 XM-7629 FID / AAB VERSA BENCH Owner’s Manual 8/09...
-
Page 2: Table Of Contents
Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information... -
Page 3: Important Safety Information
SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 4: Before You Start
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer. -
Page 5: Assembly
Assembly... - Page 6 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assenbled. Step 1 Attach Main Frame (#1) to Front Base (#4) using: • two M12*80 Button Head Cap Screws (#33) • two M12 Nylon Lock Nuts (#43) •...
- Page 7 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 2 Attach Frame Seat Pad Support (#5) to Main Frame (#1) using: • one M12*125 Button Head Cap Screw (#32) • one M12 Nylon Lock Nut (#43) • two Φ13*Φ26*2 Flat Washers (#40) Attach Frame, Adjustable Back Pad (#6) to Frame Back Pad Support (#5) using: •...
- Page 8 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 3 Attach Frame Seat Pad Support (#3) to Main Frame (#1) using: • one M12*125 Button Head Cap Screw (#32) • one M12 Nylon lock Nut (#43) • two Φ13*Φ26*2 Flat Washers (#40) •...
- Page 9 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 4 Attach Upper Back Pad (#12) and Lower Back Pad (#13) to Frame Back Pad Support (#5) using: • four M10*70 Button Head Cap Screws (#35) • four Φ11*Φ23*2 Flat Washers (#41) Attach Seat Pad (#14) to Frame Seat Pad Support (#3) using: •...
-
Page 10: Parts List
Parts List XM-7629 Parts List Ref # Part # Description Main Frame P00718 P00247 Rear Base P00719 Frame Seat Pad Support Front Base P00720 P00047 Frame Back Pad Support P00645 Frame Adjustable Back Pad Foam Frame P00721 P00061 Foam Padding Φ110*Φ22*180 XM SERIES... -
Page 11: Exploded View
Exploded View... -
Page 12: Warranty Information
VALID ONLY if the product is assembled / installed according to the instructions / directions included with the product. • In a light institutional setting, XMARK Fitness will extend a one year limited parts warranty and a lifetime frame warranty to the original purchaser. - Page 13 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
