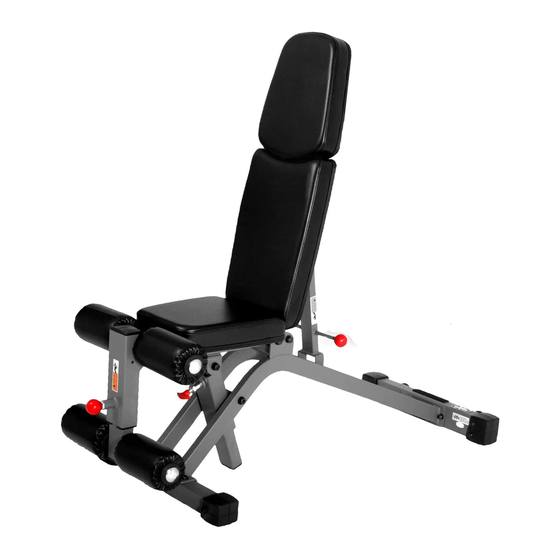

XMark Fitness XM-7628 Owner's Manual

Fid / aab combo bench
Hide thumbs Also See for XM-7628:

Advertisement

Quick Links

Download this manual
XM-7628
FID / AAB COMBO BENCH
Owner's Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the XM-7628 and is the answer not in the manual?

Questions and answers

Related Manuals for XMark Fitness XM-7628

Summary of Contents for XMark Fitness XM-7628

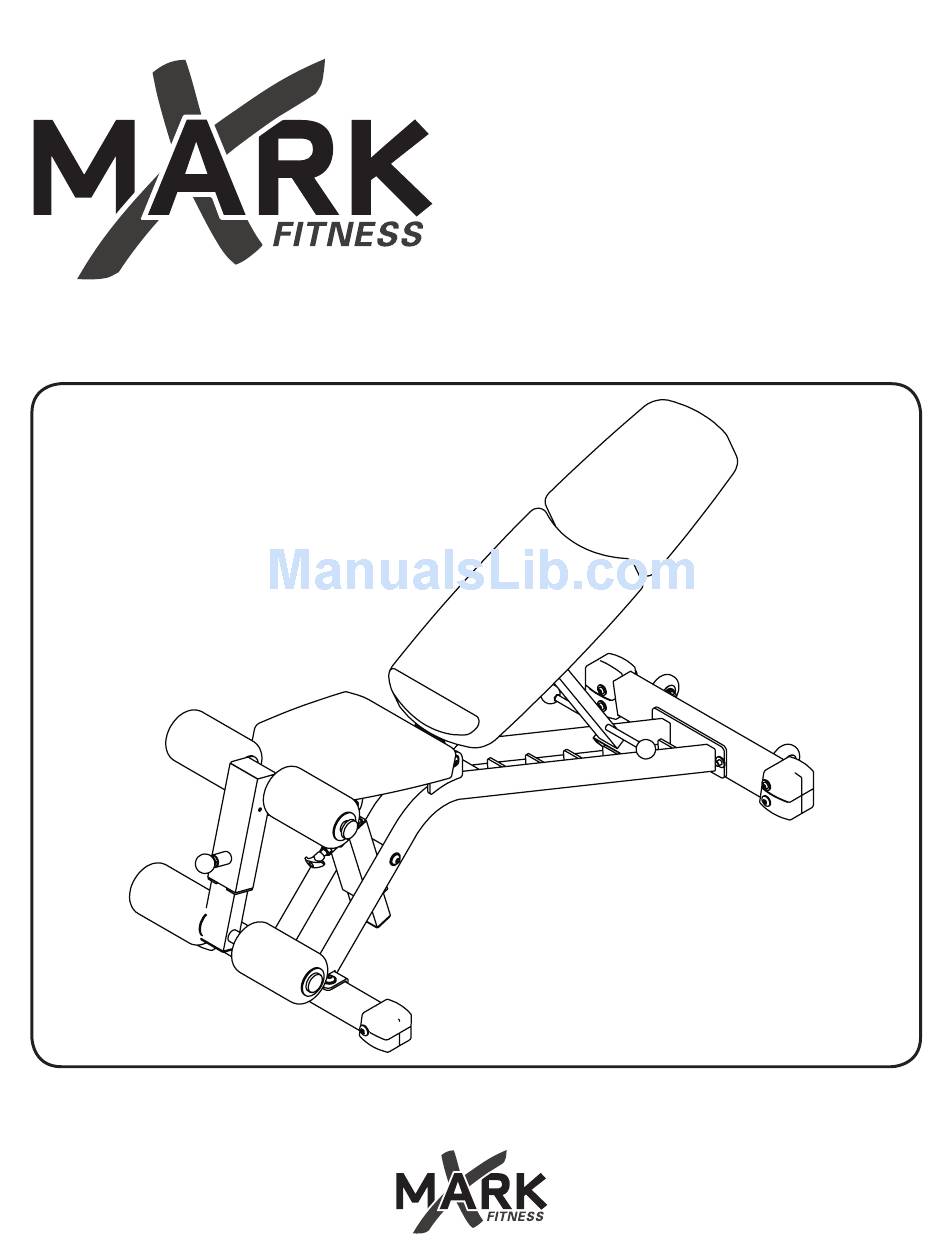

  • Page 1 XM-7628 FID / AAB COMBO BENCH Owner’s Manual...

  • Page 2: Table Of Contents

    Table Of Contents Important Safety Information Before You Start Assembly Parts List Exploded View Warranty Information...

  • Page 3: Important Safety Information

    SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning.

  • Page 4: Before You Start

    This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer.

  • Page 5: Assembly

    Assembly...
  • Page 6 Assembly NOTE: Hand tighten bolts and nylon lock nuts until machine is fully assenbled. Step 1 Attach Main Frame (#1) to Front Base (#3) using: • two M12*30 Button Head Cap Screws (#46) • two Φ13*Φ26*2 Flat Washers (#40) Attach Rear Base (#2) to Main Frame (#1) using: •...
  • Page 7 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 2 Attach Frame Seat Pad Support (#5) to Main Frame (#1) using: • one M12*165 Button Head Cap Screw (#32) • one M12 Nylon Lock Nut (#43) • two Φ13*Φ26*2 Flat Washers (#40) Attach Frame Adjustable Back Pad (#6) to Frame Back Pad Support (#5) using: •...
  • Page 8 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 3 Attach Frame Seat Pad Support (#4) to Main Frame (#1) using: • one M12*165 Button Head Cap Screw (#32) • one M12 Nylon Lock Nut (#43) • two Φ13*Φ26*2 Flat Washers (#40) Attach Foam Frame (#7) to Frame Seat Pad Support (#4) using: •...
  • Page 9 Assembly NOTE: Wrench tighten bolts and nylon lock nuts. Step 4 Attach Upper Back Pad (#12) and Lower Back Pad (#13) to Frame Back Pad Support (#5) using: • four M10*70 Button Head Cap Screws (#34) • four Φ11*Φ23*2 Flat Washers (#41) Attach Seat Pad (#14) to Frame Seat Pad Support (#4) using: •...

  • Page 10: Parts List

    Parts List XM-7628 Parts List Ref # Part # Description Main Frame P00771 P00772 Rear Base P00773 Front Base Frame Seat Pad Support P00774 P00775 Frame Back Pad Support P00776 Frame Adjustable Back Pad Foam Frame P00721 P00777 Frame Adjustable Seat Pad...

  • Page 11: Exploded View

    Exploded View...

  • Page 12: Warranty Information

    Customer Service: 1-800-719-4605...
