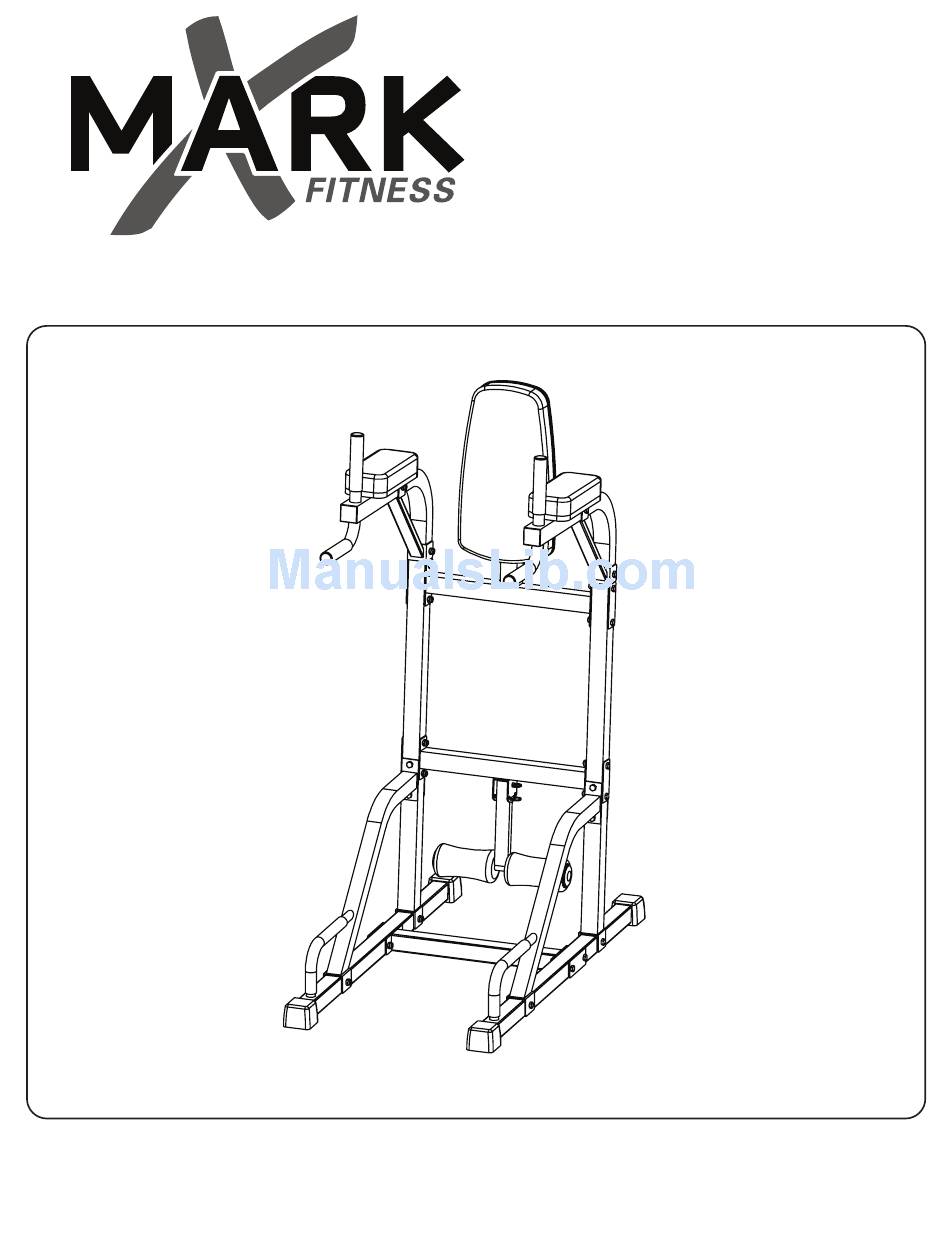

- Page 1 XM-4437 VERTICAL KNEE RAISE Owner’s Manual !CAUTION Read all precautions and instructions in this manual before 10/09 using this equipment.
-
Page 2: Table Of Contents
Table of Contents Before You Begin Important Safety Information Assembly Parts List Exploded View Warranty Information... -
Page 3: Before You Begin
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our Xmark Fitness help line. We have trained service technicians on site to take care of you, our valued customer. -
Page 4: Important Safety Information
Before using this unit or starting any exercise program, consult your physician. This is especially important for persons over the age of 35 and/or persons with pre- existing health problems. Xmark Fitness assumes no responsibility for personal injury or property damage sustained by or through the use of this product. -
Page 5: Important Safety Information
SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. Xmark Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 6: Assembly
Assembly NOTE: Hand tighten bolt s and locknuts until machine is fully assembled. STEP 1 Insert the bar on the Lower Support (2) into the Base (1), securing with one M8X20 Bolt (22), one M8 Washer (20), one M10X70 Bolt (19) and one M10 Locknut (18). Install Upright Frame (3) onto Base(1) with one M10 x 70 Bolt (19) and one M10 Locknut (18). -
Page 7: Assembly
Assembly NOTE: Hand tighten bolts and locknuts until machine is fully assembled. STEP 3 Attach the Upper Support Bars (4) to Upright Frames (3). Secure using four M10 x 70 Bolts (19), and four M10 Locknuts (18). STEP 4 Attach Arm Pads (11) to Upright Frames (3), secure with four M8 x 70 Bolts (21) and four M8 Washers (20). - Page 8 Install the Sit-up Bar (5) into the bracket on the Lower Cross Brace (6), securing with two Ring Head Lock Pins (15). Slide the Foam Rollers(14) onto each end of the Sit-up Bar (5), secure with Foam Roller Caps (17). Congratulations! You have completed assembly of your XM-4437.
-
Page 9: Parts List
Parts List XM-4437 Parts List Rev A Key NO. Part No. Description 204058001503 Base 204058002503 Lower Support 204058005503 Upright Frame 204025214503 Upper Support 204056903503 Sit-up Bar 204058004503 Lower Cross Brace 204058006503 Upper Upright Brace 204039103503 Plate 204058003503 Bottom Brace 307040000085... -
Page 10: Exploded View
Exploded View... -
Page 11: Warranty Information
XMark Fitness, LLC 2791 Valley View Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
