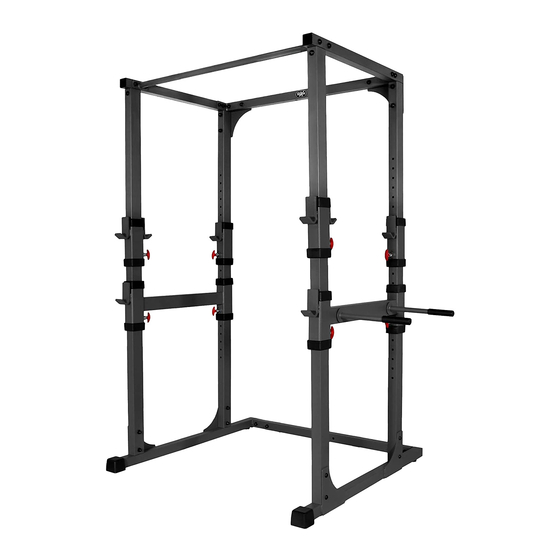

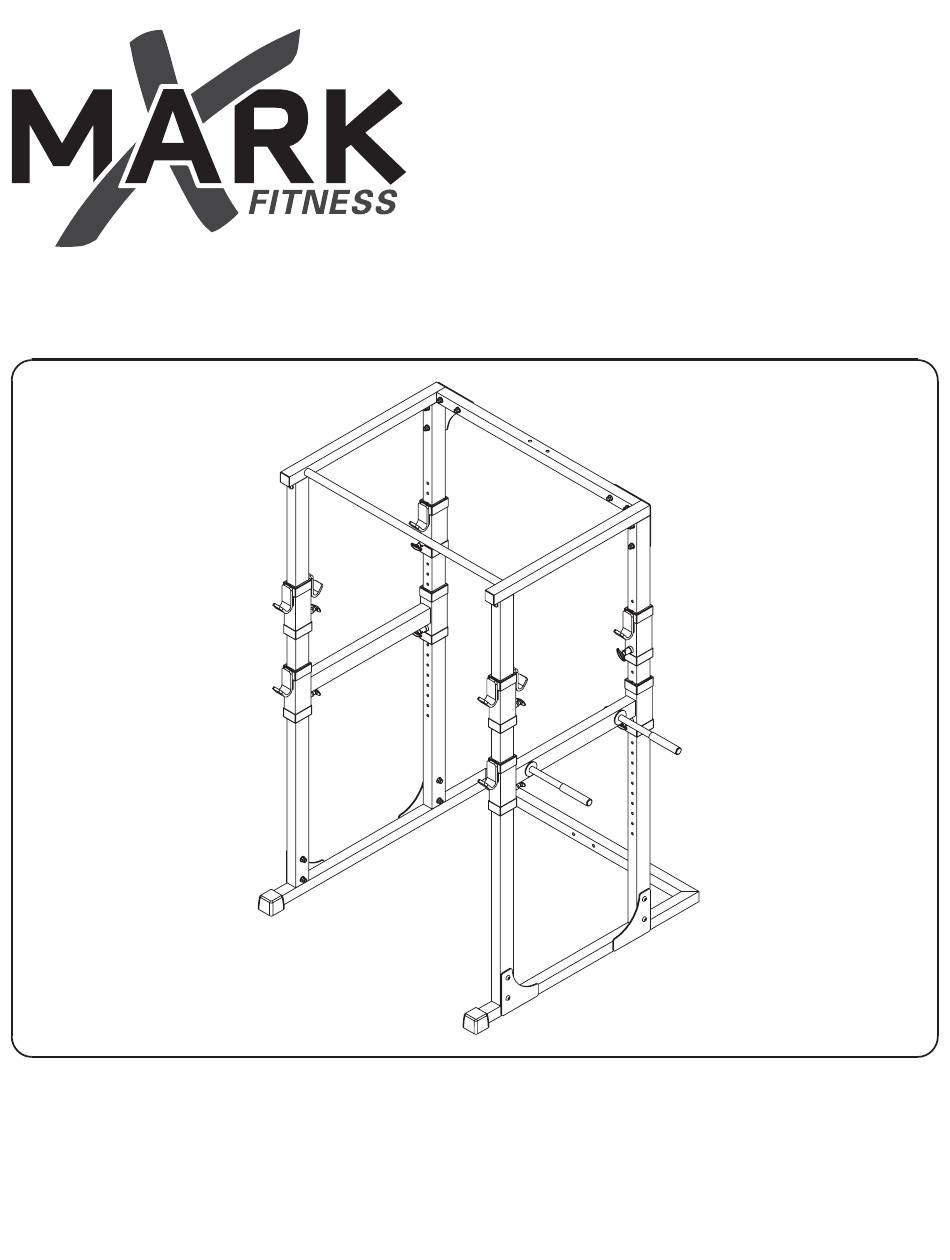

- Page 1 XM-4430 POWER CAGE Owner’s Manual !CAUTION Read all precautions and instructions in this manual before using this equipment. 8/09...
- Page 2 Table of Contents Before You Begin Important Safety Information...
-
Page 3: Before You Start
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer. -
Page 4: Important Safety Information
SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. - Page 5 Assembly Assembly Hardware Prior to assembly, remove components from the box and verify that all the listed parts were supplied. Unpack all parts and place them in a clear area. Be sure to remove all packing material. (#2) RIGHT FRONT UPRIGHT (#4) RIGHT REAR UPRIGHT FRAME TUBE FRAME TUBE...
- Page 6 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 1 Upright Frames with Single Holes (1 & 2) should be positioned to the front of unit as seen in picture. Attach to Base Frame (10) using M12x70 Bolts (20), M12 Washers (23) and M12 Lock Nuts (24).
- Page 7 Assembly NOTE: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 2 Slide Left Slide Frame (8) to the Upright Frames (1 & 4) and use Locking Pop Pin (13) to secure. Then slide Front Weight Slide Holder (7) and Rear Weight Slide Holder (8) onto the Upright Frames (4 &...
- Page 8 Assembly Note: Hand tighten bolts and lock nuts until machine is fully assembled. STEP 3 Attach the Top Frame (5) to the Upright Frames and secure according to the above illustration.
-
Page 9: Exploded View
Exploded View 23 24... -
Page 10: Parts List
Parts List XM-4430 Parts List Key NO. Part No. Description 204054202503 UPRIGHT FRAME, LEFT FRONT XM - 4430 204054202503 UPRIGHT FRAME, RIGHT FRONT XM - 4430 204054203503 UPRIGHT FRAME, LEFT REAR XM - 4430 204054203503 UPRIGHT FRAME, RIGHT REAR XM - 4430... -
Page 11: Limited Lifetime Warranty
Should any product submitted for warranty service be found ineligible, an estimate of repair cost will be furnished and the repair will be made if requested by you upon XMARK Fitness’... - Page 12 XMARK Fitness 7501 Trammel Drive Shreveport, LA 71108 Customer Service: 1-800-719-4605...
