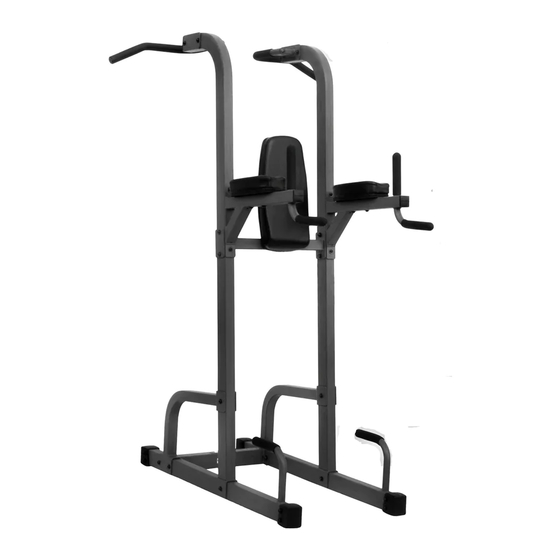

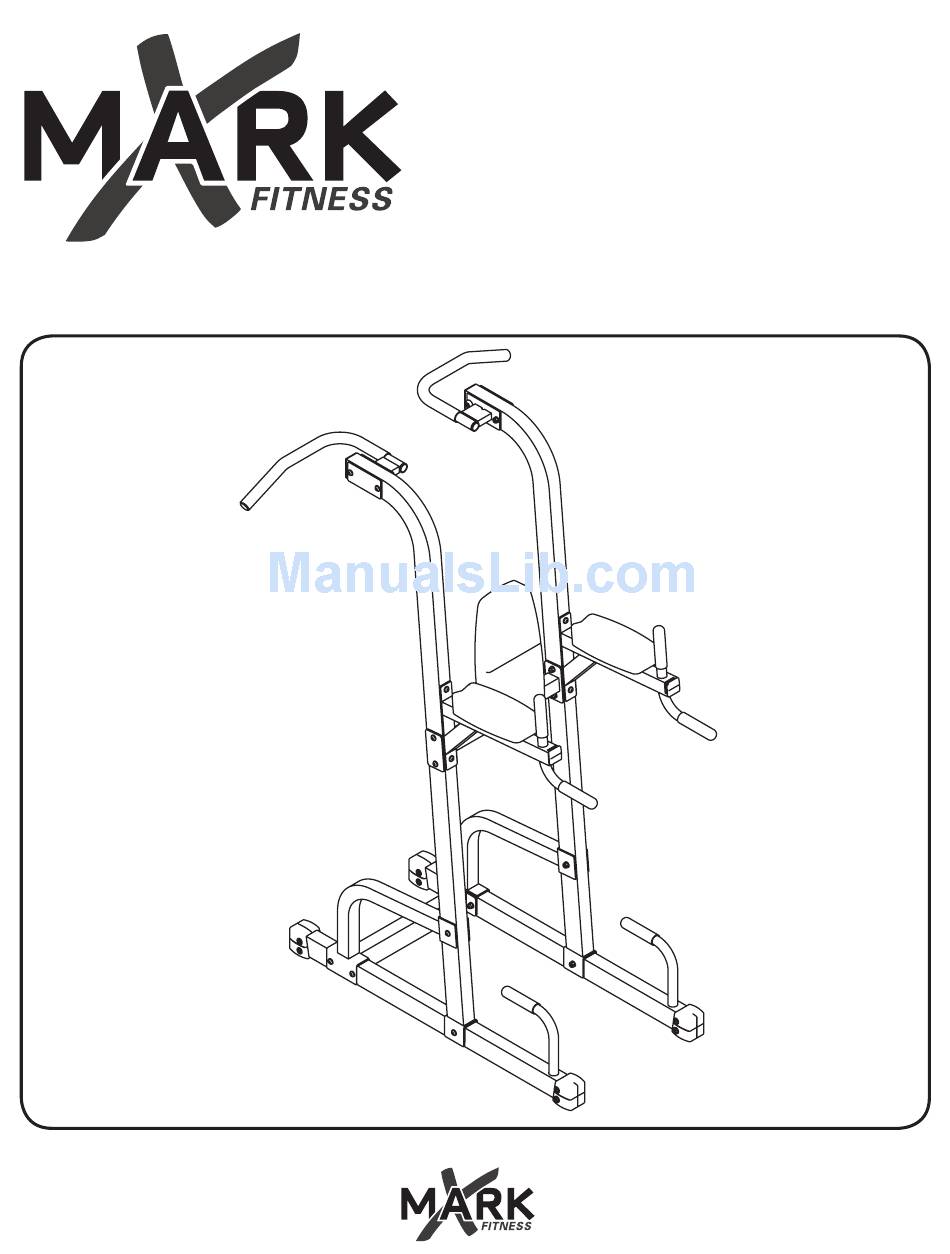

- Page 1 XM-7617 POWER TOWER Owner’s Manual...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information Before You Start Assembly 5-10 Parts List Exploded View... -
Page 3: Important Safety Information
SAFETY PRECAUTIONS • This unit should only be used on a level surface and is intended for indoor use only. XMARK Fitness recommends an equipment mat be placed under the unit to protect the floor or carpet and for easier cleaning. -
Page 4: Before You Start
This manual will guide you through the assembly process. If at any time you are having trouble with the assembly or use of this product, then please contact us at our XMARK Fitness help line. We have trained service technicians on site to take care of you, our valued customer. -
Page 5: Assembly
Assembly... - Page 6 NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 1 Connect Upright Frame (#1) to Base Frame (#8) using: • one M10*75 Button Head Cap Screw (#22) • two Φ11*Φ23*2 Flat Washer (#19) • one M10 Nylon Locknut (#25) Repeat Step 1 for other side of XM-7617.
- Page 7 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 2 Connect Back Pad Support Frame (#5) to both Upright Frames (#1) using: • four M10*80 Button Head Cap Screw (#23) • eight Φ11*Φ23*2 Flat Washer (#19) •...
- Page 8 Assembly Step 2...
- Page 9 Assembly NOTE: Hand tighten bolts and Nylon Lock nuts until machine is fully assembled. Step 3 Connect Elbow Pad Support Frame (#4) to Upright Frame (#1) using: • four M10*100 Button Head Cap Screw (#24) • four Φ11*Φ23*2 Flat Washer (#19) •...
- Page 10 Assembly NOTE: Wrench Tighten bolts and Nylon Locknuts. Step 4 Connect Back Pad (#13) to Back Pad Support Frame (#5) using: • two M10*72 Button Head Cap Screw (#27) • two Φ11*Φ23*2 Flat Washer (#19) Connect Elbow Pads (#10) to Elbow Pad Support Frames (#4) using: •...
-
Page 11: Parts List
Parts List XM-7617 Parts List Ref # Part # Description P00081 Upright Frame P00502 Left Angle Support P00503 Right Angle Support P00082 Elbow Pad Support Frame P00504 Back Pad Support Frame P00505 Right Chin-Up Bar P00506 Left Chin-Up Bar P00312... -
Page 12: Exploded View
Exploded View... - Page 13 Customer Service: 1-800-719-4605...
