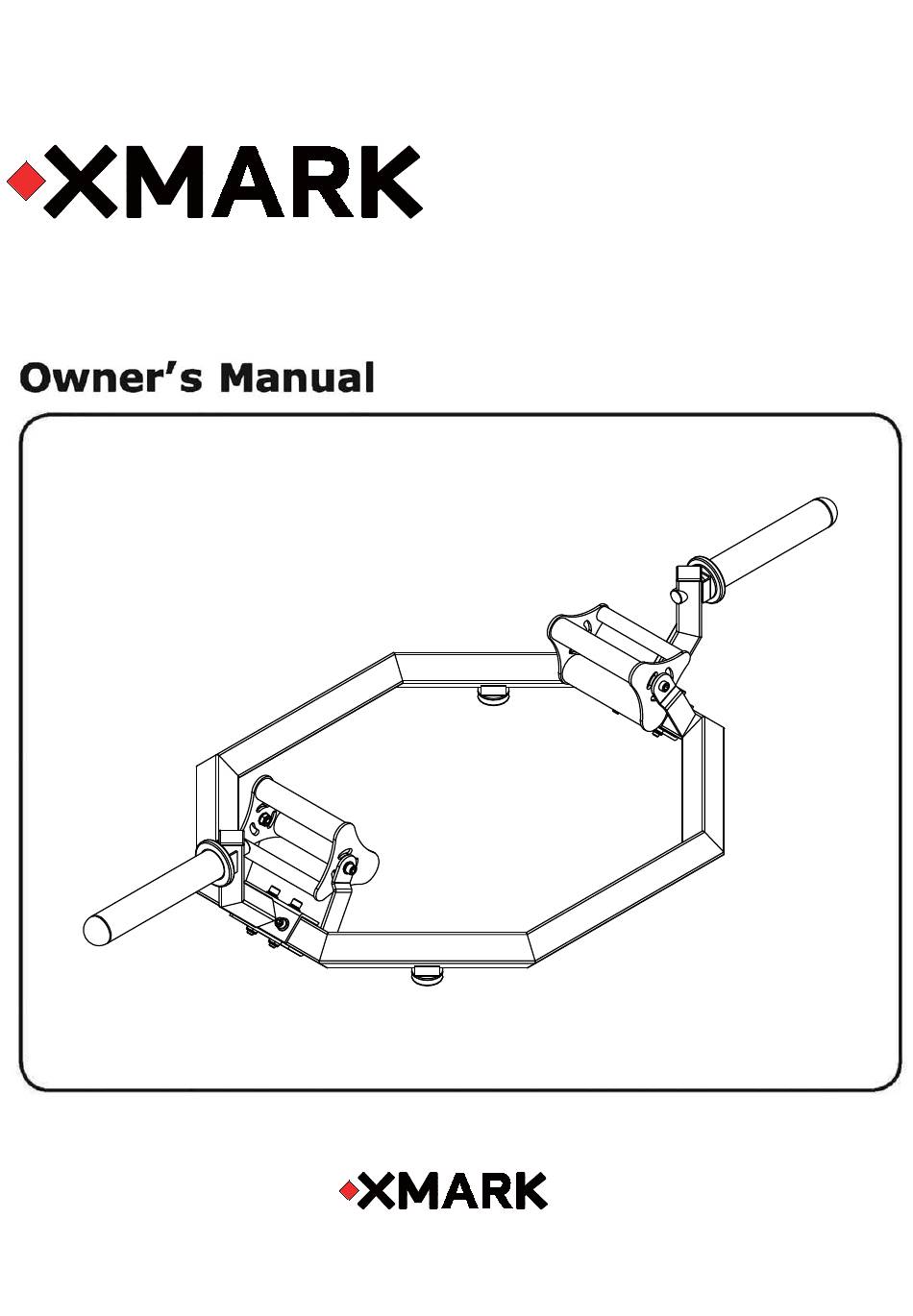

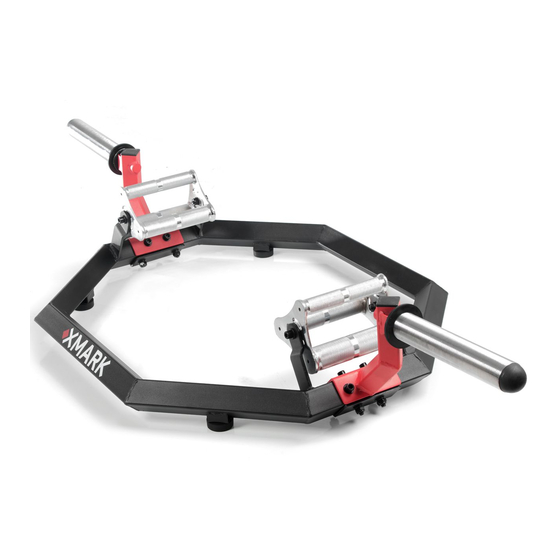

- Page 1 XM-906 5 Revolving Tri-Grip Olympic Trap Bar 2/17...
- Page 2 CAUTION! Please read all precautions and instructions before use. Im po r t a nt Saf e ty In s t r uction s--------------- -------------------- -------------------- ----- I n s t r u cti on s------------------------------------------------------------------------------------ P ar t s L i s t --------------------------------------------------------------------------------------- Ex p l o ded V i ew ------------------------------------------------------------------------------- Me a s u r eme nt G ui de------------------------------------------------------------------------ Assembl y I n s t r u cti on s----------------------------------------------------------------------...
- Page 4 800-719-4605...
- Page 5 Item No. Description Main Frame Weight Post Handle Plate Adapter Bushing Square Plug Round Plug φ25 Rubber Plate φ50 Rubber Plate Stopper Button Head Cap Screw M8*16 Socket Head Cap Screw M10*25 Socket Head Cap Screw M10*30 Socket Head Cap Screw M10*80 Flat Washer φ10 Spring Washer φ10 Nylon Lock Nut M10...
- Page 8 For a step by step assembly video please visit: https://www.youtube.com/watch?v=3QyuIk14ctE...
- Page 9 1. Attach the stoppers (10#) to Main Frame (1#) using: four M8*16 BHCS (11#) 2. Attach the Weight Post (2#) to Main Frame (1#) using: two Connect Board (18#) eight M10*80 SHCS (14#) sixteen φ10 Flat Washers (15#) eightφ10 Spring Washers (16#) eight M10 Nylon Lock Nuts (17#) Note: Wrench Tighten Bolts and Nylon Lock Nuts.
- Page 10 1. Attach Handles (3#) to Main Frame (1#) using: four M10*30 SHCS (13#) eightφ10 Flat Washers (15#) four Bushings (5#) four M10 Nylon Lock Nuts (17#) 2. Attachφ25 Rubber Plate (8#) to Weight Post (2#). 3. Attach Plate Adapter (4#) to Weight Post (2#) using: two M10*25 SHCS (12#) twoφ10 Washers (15#) Note: Wrench Tighten Bolts.
- Page 11 Customer Service: 1-800-719-4605...
