Specifications
Environment
HDMI 1.3a
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission
Transparent to the user
Bandwidth
148.5 MHz
Signals
HDMI 1.3a protocol
Connectors
One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
3.5mm jacks for IR emitter and sensor
Note: HDMI cables not included.
Maximum Distance
480i/p:
720p, 1080i:
Based on a maximum
1080p 8-Bit:
length of 6.6 ft (2 m) of
Note: When installed in an electrically noisy environment, an STP
HDMI cable per end.
cable must be used. Also, cross-connection reduces the effective
distance depending on the grade of twisted cable used.
RJ45 Pin
RJ45 Link
Configuration
Pin 1 (R)
Pin 2 (T)
Pin 3 (R)
Pin 6 (T)
Reverse Polarity
Pin 4 (R)
Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R)
Pin 8 (T)
568A or 586B straight-
through wiring.
Cable
One (1) Cat 5e/6 or better twisted pair cables required
Power Supply
Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption
Transmitter: 4 Watt
Temperature
Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure
Aluminum
4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
Dimensions
Weight
2.6 lb (1.2 kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
Order Information
500450-LR HDMI Extender Kit Long-Reach, HDBT
2321Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail:
info@muxlab.com
© MuxLab Inc.
Cat 5e/6: 500 ft (150 m)
Cat 5e/6: 500 ft (150 m)
Cat 5e/6: 500 ft (150 m)
Receiver: 6 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000906-A SE-000906-A
HDMI Extender Kit Long-Reach
500450-LR
Quick Installation Guide
Overview

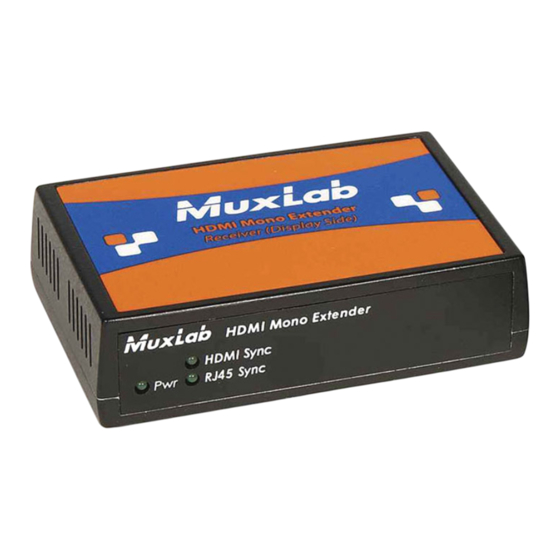

The HDMI Mono Extender Kit Long-Reach (500450-LR) allows HDMI equipment to
be connected up to 500 ft (150 m) @ 1080p 8-Bit via one (1) Cat 5e/6 unshielded
twisted pair cables in a point-to-point configuration. The kit comes with one (1)
Transmitter and one (1) Receiver as well as an IR Emitter (500998) and IR Sensor
(500999) for remote control applications.
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
