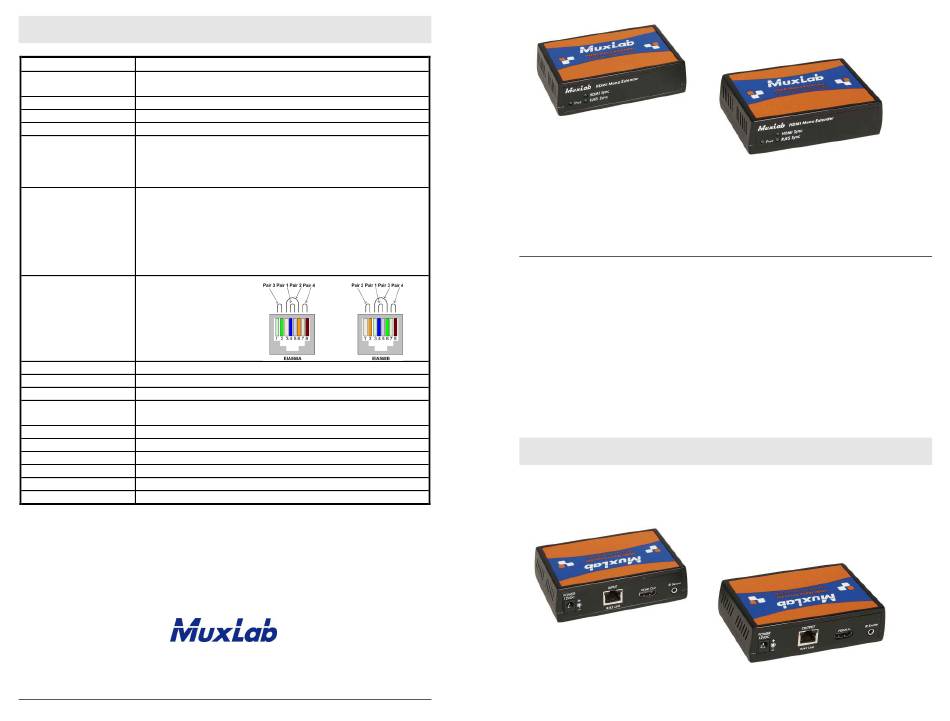

MuxLab 500450 Quick Installation Manual

Specifications

Environment HDMI 1.3a
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission Transparent to the user
Bandwidth 340 MHz
Signals HDMI 1.3a protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
3.5mm jacks for IR emitter and sensor
Note: HDMI cables not included.
Maximum Distance 480i/p:
720p, 1080i:
Based on a maximum
1080p:
length of 6.6 ft (2 m) of
1080p Deep Color:
HDMI cable per end.
Note: When installed in an electrically noisy environment, an STP
cable must be used. Also, cross-connection reduces the effective
distance depending on the grade of twisted cable used.
RJ45 Pin RJ45 Link
Pin 1 (R) Pin 2 (T)
Configuration
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Power Supply Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption Transmitter: 3.0 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Aluminum
4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
Dimensions
Weight 2.6 lb (1.2 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500450 HDMI Mono Extender Kit
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Cat 5e/6: 330 ft (100 m)
Cat 5e/6: 330 ft (100 m)
Cat 5e/6: 330 ft (100 m)
Cat 5e/6: 330 ft (100 m)
Receiver: 5.0 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000672-A SE-000672-B
HDMI Mono Extender Kit
500450
Quick Installation Guide

Overview

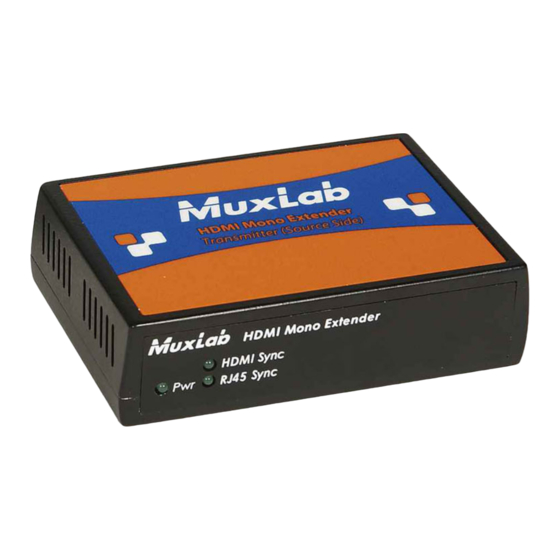

The HDMI Mono Extender Kit (500450) allows HDMI equipment to be connected up
to 330 ft (110 m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair
cables in a point-to-point configuration. The kit comes with one (1) Transmitter and one
(1) Receiver as well as an IR Emitter (500998) and IR Sensor (500999) for remote
control applications.

Applications

Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
