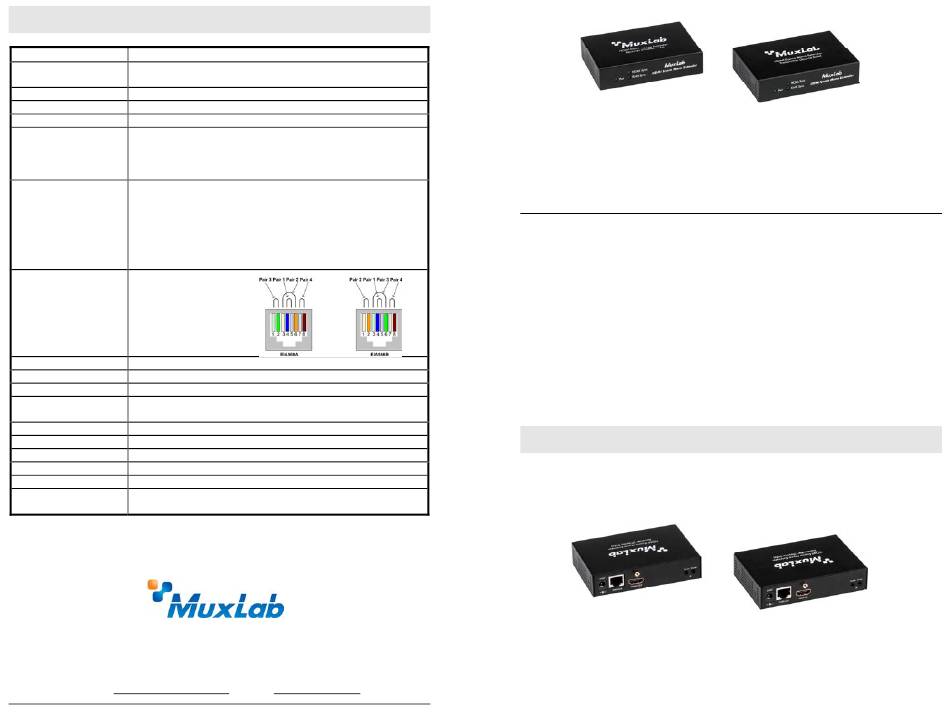

MuxLab 500451 Quick Installation Manual

Specifications
Environment HDMI 1.3a (Supports the 3D feature of HDMI 1.4)
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
Devices
HDMI.
Transmission Transparent to the user
Bandwidth 340 MHz
Signals HDMI 1.3a protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter and sensor
Note: HDMI cables not included.
Maximum Distance 480i/p:
720p, 1080i:
Based on a maximum
1080p:
length of 6.6 ft (2 m) of
1080p Deep Color:
HDMI cable per end.
Note: When installed in an electrically noisy environment, an STP cable
must be used. Also, cross-connection reduces the effective distance
depending on the grade of twisted cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity
Pin 3 (R) Pin 6 (T)
Sensitive. Use EIA/TIA
Pin 4 (R) Pin 5 (T)
568A or 586B straight-
Pin 7 (R) Pin 8 (T)
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Supply
Power Consumption Transmitter: 1.6 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
Dimensions 4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Shipping Weight 1.4 lb (0.6 kg)
Regulatory: FCC, CE, RoHS
Compliance
Warranty 2 years
Order Information 500451
500451-RX HDMI Mono Receiver (for use with 50047x)
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Cat 5e/6: 230 ft (70 m)
Cat 5e/6: 230 ft (70 m)
Cat 5e/6: 230 ft (70 m)
Cat 5e/6: 230 ft (70 m)
Receiver: 3.2 Watt
Storage: -20° to 85°C
Flammability: 94V0
HDMI Mono Extender Kit
Fax: (514) 905-0589
URL: www.muxlab.com
94-000728-A SE-000728-A
HDMI Mono Extender Kit
500451 , 500451-RX
(Kit)
Quick Installation Guide
Overview
The HDMI Mono Extender Kit (500451) allows HDMI equipment to be connected up to
230 ft (70 m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded twisted pair cables
in a point-to-point configuration. The kit comes with one (1) Transmitter and one (1)
Receiver as well as an IR Emitter (500998) and IR Sensor (500999) for remote control
applications. The 500451-RX is the receiver portion of the kit and is used in
conjunction with MuxLab's Multimedia Matrix Switch. For installation instructions,
please refer to the Multimedia Matrix Switch Installation Guide.
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the
product labels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
(Receiver only)
