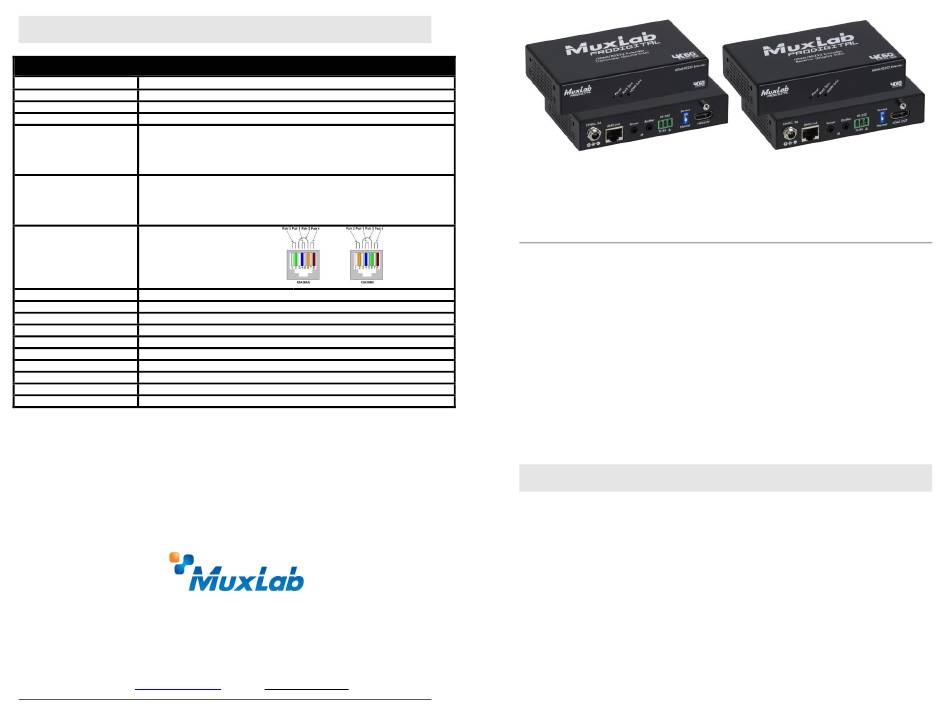

Specifications
Specification Chart
Environment
HDMI 2.0
Devices
DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Transmission
Transparent to the user
Signals
HDMI 2.0 protocol
One (1) HDMI receptacle.
Connectors
One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair.
One (1) 3-Position Terminal Block for RS232.
Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave).
Cables not included
One (1) 2.1mm locking power connector.
Max. Distance*
4K/60 (4:4:4): Cat 5e/6: 230ft (70m)
1080p:
Cat 5e/6: 330ft (100m)
*Based on a maximum length of
When installed in an electrically noisy environment, STP cable must be used. Also, cross-
connection reduces the effective distance depending on the grade of twisted cable used.
6.6 ft (2m) of HDMI cable per end
RJ45
RJ45 Pin Configuration
Use EIA/TIA 568 A or B,
Pin 1 (R)
Pin 2 (T)
straight-through wiring.
Pin 3 (R)
Pin 6 (T)
Pin 4 (R)
Pin 5 (T)
Pin 7 (R)
Pin 8 (T)
Cable
One (1) Category 5e or better twisted pair cables required.
Power Supply
One (1) 110-240V/12VDC @ 2A power supply with interchangeable blades.
Transmitter: 10.44 Watts
Power Consumption
Temperature
Operating: 0º to 40º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
Enclosure
Metal
4.72" x 2.87" x 1.00" (12.0 x 7.3 x 2.5 cm)
Unit Dimensions
Shipping Weight
1.75 lbs (0.79 kg)
Regulatory: FCC, CE, RoHS
Compliance
Warranty
2 years
Order Information
500459-100 HDMI/RS232 100m Extender Kit, HDBT, 4K/60 (UPC: 627699014592)
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail:
info@muxlab.com
© MuxLab Inc.
Receiver: 10.44 Watts
Fax: (514) 905-0589
URL: www.muxlab.com
94-000887-A SE-000887-A

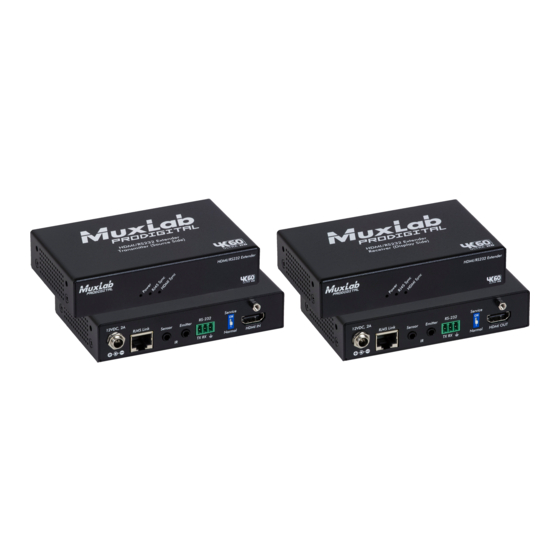

HDMI/RS232 100m Extender Kit, HDBT, 4K/60
500459-100
Quick Installation Guide
Overview
The HDMI/RS232 100m Extender Kit, HDBT, 4K/60 (500459-100) allows HDMI
equipment to be connected up to 230ft (70m) at 4K/60 (4:4:4) resolutions, or 330ft
(100m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a
point-to-point configuration. The unit supports RS232 and bidirectional IR pass through
transmission for end device remote control. This product supports PoC, allowing the
transmitter to power the receiver, or the receiver to power the transmitter. The kit
includes one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor and
one (1) power supply.
Applications
Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels above.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
4.
To install the Receiver:
4a.
Connect the Receiver to the HDMI display equipment with an HDMI
compliant cable.
4b.
Connect one (1) Cat 5e/6 cable, coming from the Transmitter, to the RJ45
