Specifications

Environment
HDMI 1.3a (Supports the 3D feature of HDMI 1.4)
Devices
DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting
HDMI.
Transparent to the user
Transmission
340 MHz
Bandwidth
HDMI 1.3a protocol
Signals
One (1) HDMI receptacle.
Connectors
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter and sensor
One (1) DB9 Connector for RS-232
Note: HDMI cables not included.
Maximum Distance
Cat 5e/6: 230 ft (70 m) up to 1080P Deep Color
115 ft (35 m) for 4K; 3840 X 2160/24,25,30 Hz
Based on a maximum
Note: When installed in an electrically noisy environment, an STP cable
length of 6.6 ft (2 m) of
must be used. Also, cross-connection reduces the effective distance
HDMI cable per end.
depending on the grade of twisted cable used.
RJ45 Pin Configuration
RJ45 Link
Pin 1 (R)
Pin 2 (T)
Reverse Polarity
Pin 3 (R)
Pin 6 (T)
Sensitive. Use EIA/TIA
Pin 4 (R)
Pin 5 (T)
568A or 586B straight-
Pin 7 (R)
Pin 8 (T)
through wiring.
Cable
One (1) Cat 5e/6 or better twisted pair cable required
Power Supply
500454: Two (2) 110-240V/5VDC power supplies with interchangeable
blades
500454-POE: One POE power supply
Transmitter: 1.6 Watt
Power Consumption
Operating: 0° to 40°C
Temperature
Humidity: Up to 95% non-condensing
Metal
Enclosure
4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Dimensions
1.4 lb (0.6 kg)
Weight
Regulatory: FCC, CE, RoHS
Compliance
2 years
Warranty
500454
Order Information
500454-RX
500454-POE
500454-POE-RX HDMI / RS232 Receiver with POE
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 3.2 Watt
Storage: -20° to 85°C
Flammability: 94V0

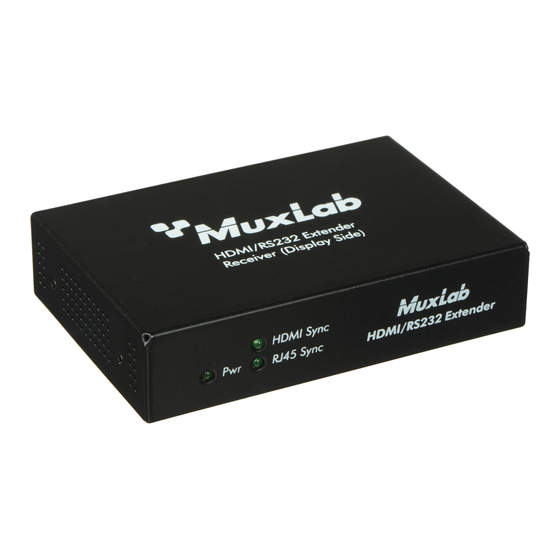

HDMI / RS232 Extender Kit
HDMI / RS232 Receiver
HDMI / RS232 Extender Kit with POE
Fax: (514) 905-0589
URL: www.muxlab.com
94-000747-A SE-000747-A
HDMI / RS232 Extender Kit
500454
, 500454-RX
(Kit)
500454-POE
, 500454-POE-RX
(Kit)
Quick Installation Guide

Overview

The HDMI / RS232 Extender Kit (500454 or 500454-POE) allows HDMI equipment to
be connected up to 230 ft (70 m) @ 1080p via one (1) Cat 5e/6 unshielded twisted pair
cable in a point-to-point configuration. The 500454 includes one (1) Transmitter and
one (1) Receiver as well as an IR Emitter (500998) and IR Sensor (500999) for remote
control applications. The 500454-POE comes with one (1) power supply, as it does not
require a power supply on the receiver side. The 500454-RX or 500454-POE-RX
receivers are used in conjunction with MuxLab's HDMI Matrix Switch. For installation
instructions, please refer to the HDMI Matrix Switch Installation Guide.

Applications

Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1.
Identify the connectors on the Transmitter and Receiver as indicated on the
product end panels.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
(Receiver only)
(Receiver only)
