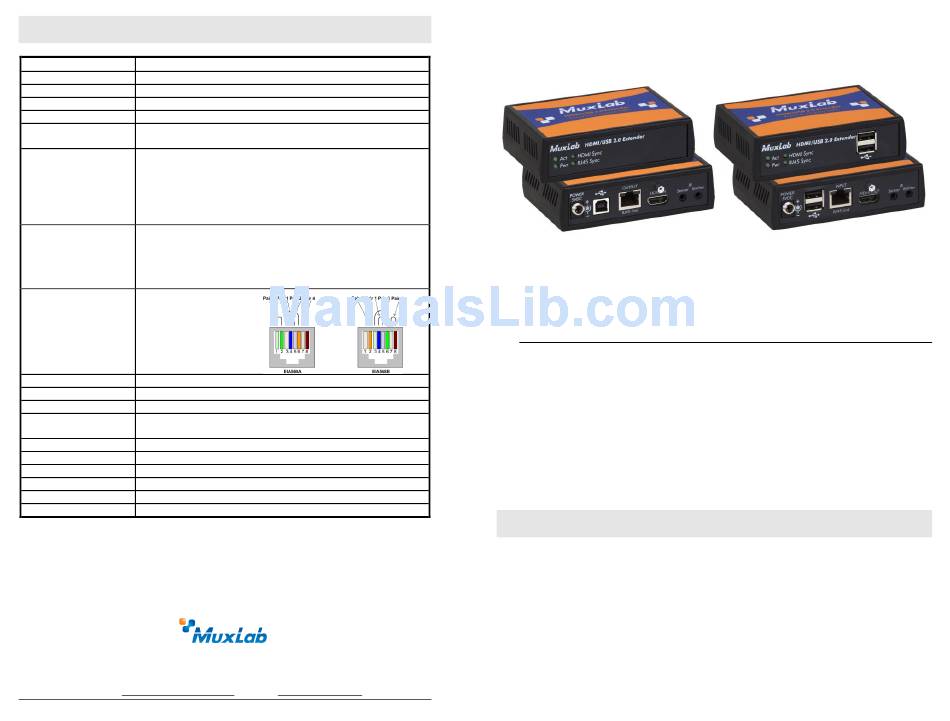

MuxLab 500457 Quick Installation Manual

Specifications

Environment KVM, HDMI 1.4 & USB 2.0
Devices KVM, Monitors, TV, PC, laptops, mouse, keyboard.
Transmission Transparent to the user.
Bandwidth 340 MHz
Signals HDMI 1.4 protocol and USB 2.0
USB One input on TX side and 4 outputs on RX side.
Bandwidth available: Up to 250 Mb/s.
Connectors One (1) HDMI receptacle per TX & RX unit.
One (1) RJ45 for Cat 5e/6 UTP or STP per TX & RX unit.
On TX: 1 standard USB connector, type B.
On RX: 4 standard USB connectors, type A.
Two (2) 3.5mm jacks for IR sensor & emitter per TX & RX unit.
Note: Cables not included.
Maximum Distance Cat 5e/6: 330ft (100m) up to 1920 X 1200 resolution, up to 60Hz
330ft (100m) for 4K (3840 X 2160) up to 30Hz
Based on a maximum
Note: A minimum CAT5e/6 cable length of 12ft (4m) is required.
length of 6.6ft (2m) of
When installed in an electrically noisy environment, an STP cable
HDMI cable per end.
must be used.
RJ45 Pin RJ45 Link
Pin 1 (R) Pin 2 (T)
Configuration
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cable required.
Power Supply Two (2) 110-240V/5VDC power supplies with interchangeable blades
Power Consumption Transmitter: 3 Watts
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Aluminum casting with plastic side panel.
4.50" x 3.00" x 1.25" (11.4 x 7.6 x 3.2 cm)
Dimensions
Weight 2.6 lb. (1.2 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500457 HDMI/USB 2.0 Extender Kit
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 7 Watts + USB power
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000807-A
HDMI/USB 2.0 Extender Kit
Quick Installation Guide
Overview

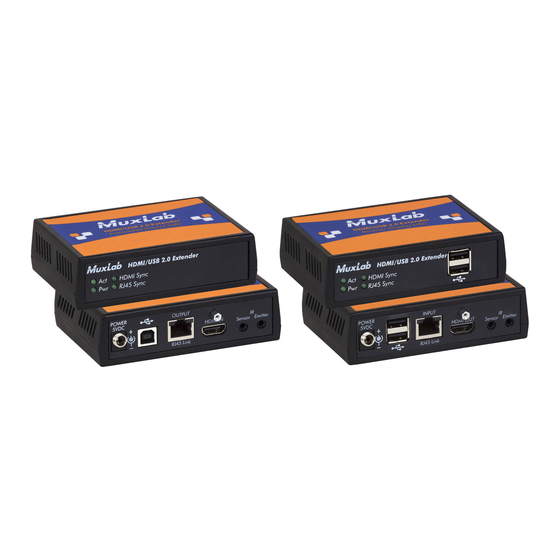

The HDMI/USB 2.0 Extender Kit allows one HDMI 1.4 and one USB 2.0 channel to be
transmitted up to 330ft (100m) at all resolutions up to 1920x1200 @ 60Hz via one (1)
Cat 5e/6 cable in a point-to-point configuration. The receive side includes a 4-port USB
2.0 hub, supporting KVM applications.
Applications
Applications include KMV commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels, see the above front and rear product views for further details.
2. Verify that the distance between the HDMI/USB 2.0 Transmitter and Receiver is
within MuxLab specifications.
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with a HDMI compliant cable.
3b. Connect the Transmitter to the USB signal with a standard USB 2.0 cable.
3c. Connect a Cat 5e/6 (or higher) grade UTP cable of desired length within
specifications to the RJ45 LINK connector on the Transmitter.
500457
