Hdmi/rs232 extender kit with arc, hdbt, uhd-4k

Advertisement

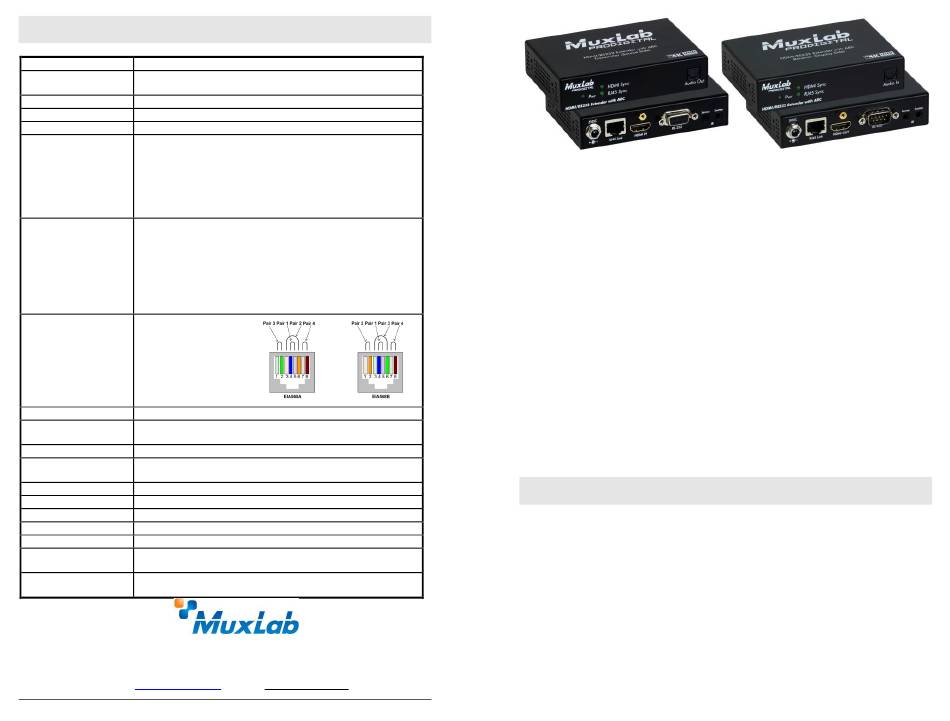

Specifications

Environment
HDMI 2.0b
Devices
DVDs, Blu-ray players, projectors, monitors, TVs, PCs,
laptops, servers supporting HDMI.
Transparent to the user
Transmission
340 MHz
Bandwidth
Signals
HDMI 2.0b protocol
Connectors
One (1) HDMI receptacle.
One (1) RJ45S for Cat5e/6 unshielded or shielded twisted
pair.
Cables not included.
One (1) DB9 connector for RS232.
One (1) TosLink Optical Connector for Audio Return.
Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave).
One (1) 2.1mm locking power connector.
4K/30 (4:4:4):
Maximum Distance
4K/60 (4:2:0):
Based on a maximum
1080p/60:
length of 6.6 ft (2 m)
of HDMI cable per
When installed in an electrically noisy environment, STP
end.
cable must be used. Also, cross-connection reduces the
effective distance depending on the grade of twisted cable
used.
RJ45 Pin
RJ45 Link
Configuration
Pin 1 (R) Pin 2 (T)
Reverse Polarity
Pin 3 (R) Pin 6 (T)
Sensitive. Use
Pin 4 (R) Pin 5 (T)
EIA/TIA 568A or 586B
Pin 7 (R) Pin 8 (T)
straight-through
wiring.
Cable
One (1) Category 5e or better twisted pair cable required.
Two (2) 110-240V/5VDC power supplies with interchangeable
Power Supply
blades
Power Consumption
Transmitter: 1.6 Watt Receiver: 3.2 Watt
Temperature
Operating: 0° to 40°C Storage: -20° to 85°C Humidity: Up to
95% non-condensing
Metal
Enclosure
4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Dimensions
Weight
1.4 lb (0.6 kg)
Compliance
Regulatory: FCC, CE, RoHS
Warranty
2 years
500458-ARC
Order Information
UHD-4K
Accessories
500905
Rackmount Transceiver Chassis 3 Port
500920
Rackmount Transceiver Chassis 16 Port
2321 Cohen St, Saint-Laurent, QC Canada H4R 2N7.
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail:
info@muxlab.com
© MuxLab Inc.
Cat 5e/6: 131ft (40m)
Cat 5e/6: 131ft (40m)
Cat 5e/6: 230ft (70m)
HDMI/RS232 Extender Kit with ARC, HDBT,
Fax: (514) 905-0589
URL: www.muxlab.com
94-000861-A SE-000861-A
HDMI/RS232 Extender Kit with ARC, HDBT,
UHD-4K (500458-ARC)
Quick Installation Guide
______________________________________________________________________

Overview

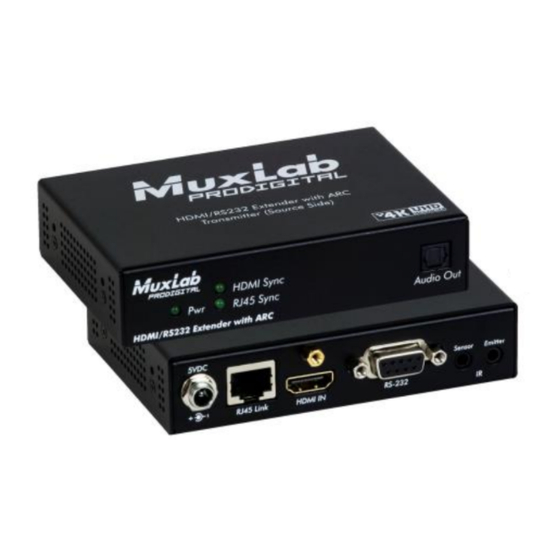

The HDMI/RS232 Extender Kit with ARC, HDBT, UHD-4K (500458-ARC) allows
HDMI equipment to be connected up to 131ft (40m) at 4K/30 (4:4:4) and 4K/60 (4:2:0)
resolution, or 230ft (70m) at resolutions up to 1080p via one (1) Cat 5e/6 unshielded
twisted pair cable in a point-to-point configuration. The kit supports Audio Return
Channel (ARC), allowing the Receiver to return audio from a sink device such as a
smart TV back to the Transmitter and on to an audio system. The originating ARC
signal may be received via the HDMI (ARC) or TosLink-in port of the 500458-ARC-
RX and transmitted via the TosLink-out port of the 500458-ARC-TX. The kit includes
one (1) transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor, and two (2)
power supplies.

Applications

Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1.
Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels.
2.
Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3.
To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect the Transmitter Audio Out to the audio equipment using a compliant
optical audio cable.
3c. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
