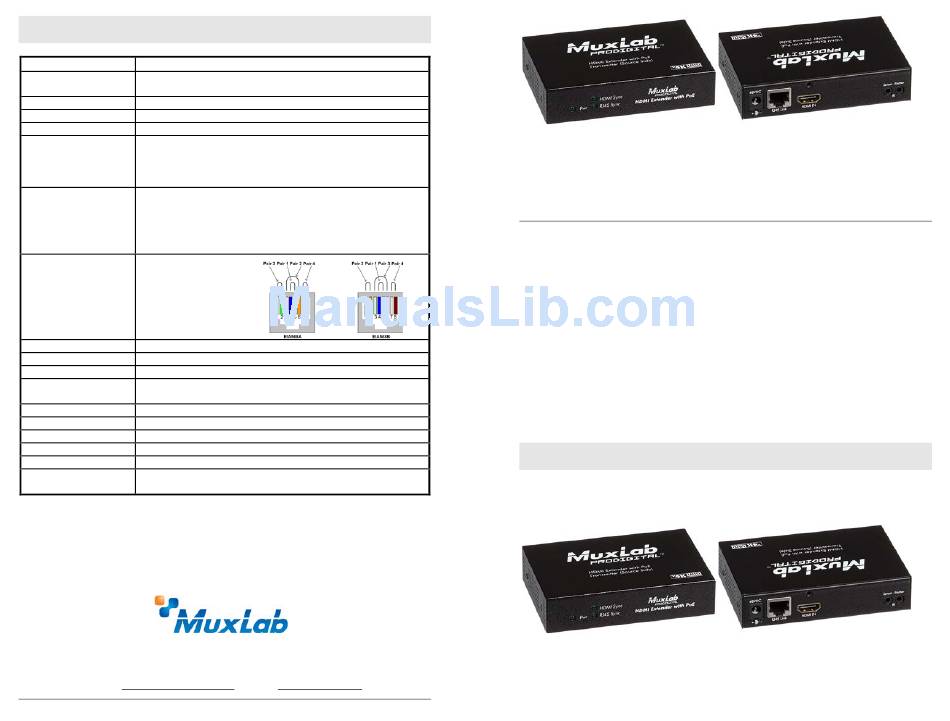

MuxLab 500451-POE Quick Installation Manual

Specifications

Environment HDMI 1.3a (Supports the 3D feature of HDMI 1.4)
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission Transparent to the user
Bandwidth 340 MHz
Signals HDMI 1.3a protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter and sensor
Note: HDMI cables not included.
Maximum Distance Cat 5e/6: 230 ft (70 m) up to 1080P Deep Color
115 ft (35 m) for 4K; 3840 X 2160/24,25,30 Hz
Based on a maximum
Note: When installed in an electrically noisy environment, an STP
length of 6.6 ft (2 m) of
cable must be used. Also, cross-connection reduces the effective
HDMI cable per end.
distance depending on the grade of twisted cable used.
RJ45 Pin RJ45 Link
Configuration Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Power Supply One (1) 110-240V/48VDC 0.5A power supply
Power Consumption Transmitter: 1.6 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Metal
Enclosure
4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Dimensions
1.4 lb (0.6 kg)
Weight
Regulatory: FCC, CE, RoHS
Compliance
2 years
Warranty
500451-POE
Order Information
500451-POE-RX HDMI Extender Receiver, PoE, HDBT, UHD-4K
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 3.2 Watt
Storage: -20° to 85°C
Flammability: 94V0
HDMI Extender Kit, PoE, HDBT, UHD-4K
Fax: (514) 905-0589
URL: www.muxlab.com
94-000804-A SE-000804-A

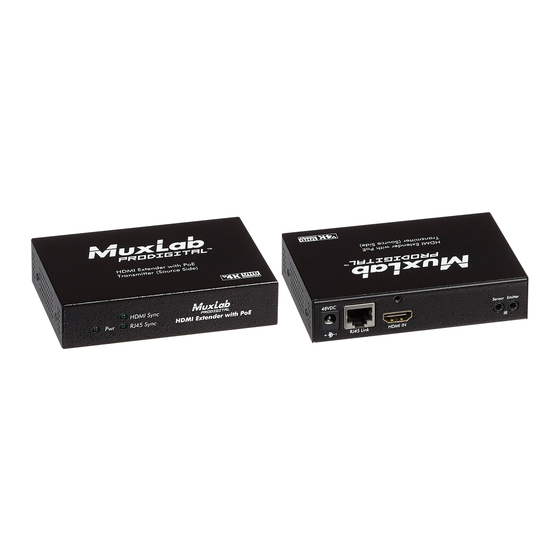

HDMI Extender Kit with PoE
,
500451-POE 500451-POE-RX
(Kit)
Quick Installation Guide

Overview

The HDMI Extender Kit with PoE (500451-POE) allows HDMI equipment to be
connected up to 230 ft (70 m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded
twisted pair cables in a point-to-point configuration. The kit comes with one (1)
Transmitter and one (1) Receiver as well as an IR Emitter (500998) and IR Sensor
(500999) for remote control applications. The 500451-POE-RX is the receiver portion
of the kit and is used in conjunction with MuxLab's Multimedia Matrix Switch. For
installation instructions, please refer to the Multimedia Matrix Switch Installation
Guide.

Applications

Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
(Receiver only)
