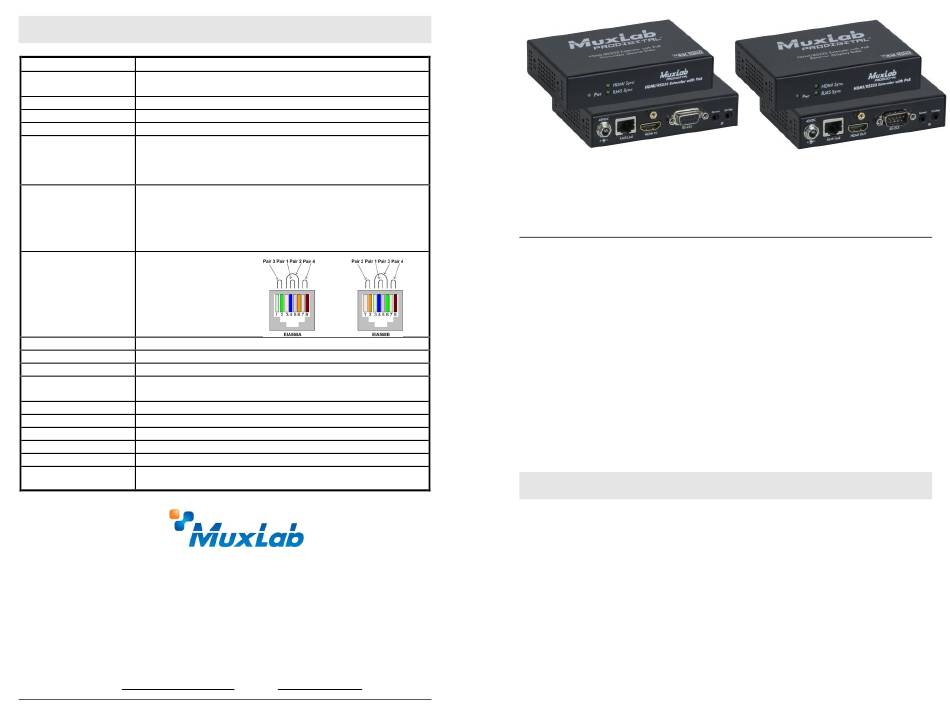

MuxLab 500454-POE Quick Installation Manual

Specifications

Environment HDMI 1.3a (Supports the 3D feature of HDMI 1.4).
Devices DVD, plasma, projectors, monitors, TV, PC, laptops, servers
supporting HDMI.
Transmission Transparent to the user.
Bandwidth 340 MHz.
Signals HDMI 1.3a protocol.
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Cables not included. Two (2) 3.5mm jacks for IR emitter and sensor.
One (1) DB9 Connector for RS-232.
Cat 5e/6: 230 ft (70 m) up to 1080P Deep Color
Maximum Distance
115 ft (35 m) for 4K; 3840 X 2160/24,25,30 Hz
Based on a maximum
Note: When installed in an electrically noisy environment, an STP
length of 6.6 ft (2 m) of
cable must be used. Also, cross-connection reduces the effective
HDMI cable per end.
distance depending on the grade of twisted cable used.
RJ45 Pin RJ45 Link
Configuration Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cable required
Power Supply One (1) 110-240V/48VDC power supply with interchangeable blades.
Power Consumption Transmitter: 1.6 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Dimensions
Weight 1.4 lb (0.6 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500454-POE
500454-POE-RX HDMI/RS232 Receiver, PoE, HDBT, UHD-4K
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Receiver: 3.2 Watt
Storage: -20° to 85°C
Flammability: 94V0
HDMI/RS232 Extender Kit, POE, HDBT, UHD-4K
Fax: (514) 905-0589
URL: www.muxlab.com
94-000858-A SE-000858-A
HDMI/RS232 Extender Kit, PoE, HDBT, UHD-4K
,
500454-POE
(Kit)
Quick Installation Guide

Overview

The HDMI/RS232 Extender Kit, PoE, HDBT, UHD-4K (500454-POE) allows HDMI
equipment to be connected up to 230 ft (70 m) @ 1080p via one (1) Cat 5e/6 unshielded
twisted pair cable in a point-to-point configuration. The 500454-PoE includes one (1)
Transmitter and one (1) Receiver as well as an IR Emitter (500998) and IR Sensor
(500999) for remote control applications. The unit comes with one (1) power supply, as
it only require power on the Transmitter or Receiver side and provides PoE/PoC power
to the opposite end extender.
conjunction with MuxLab's HDMI Matrix Switch. For installation instructions, please
refer to the HDMI Matrix Switch Installation Guide.

Applications

Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI compliant
cable.

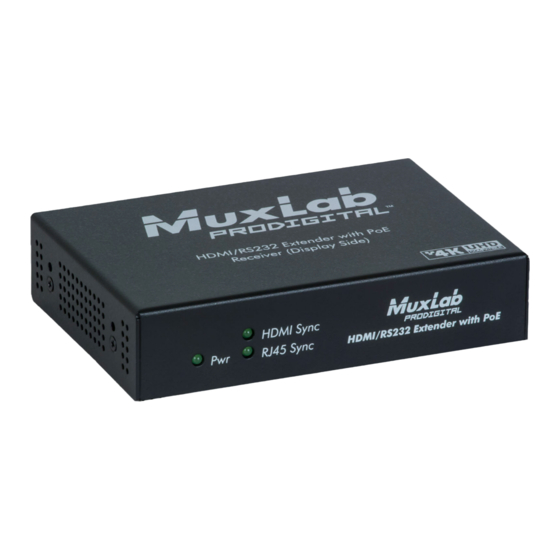

500454-POE-RX
(Receiver only)
The 500454-POE-RX receivers may be used in
