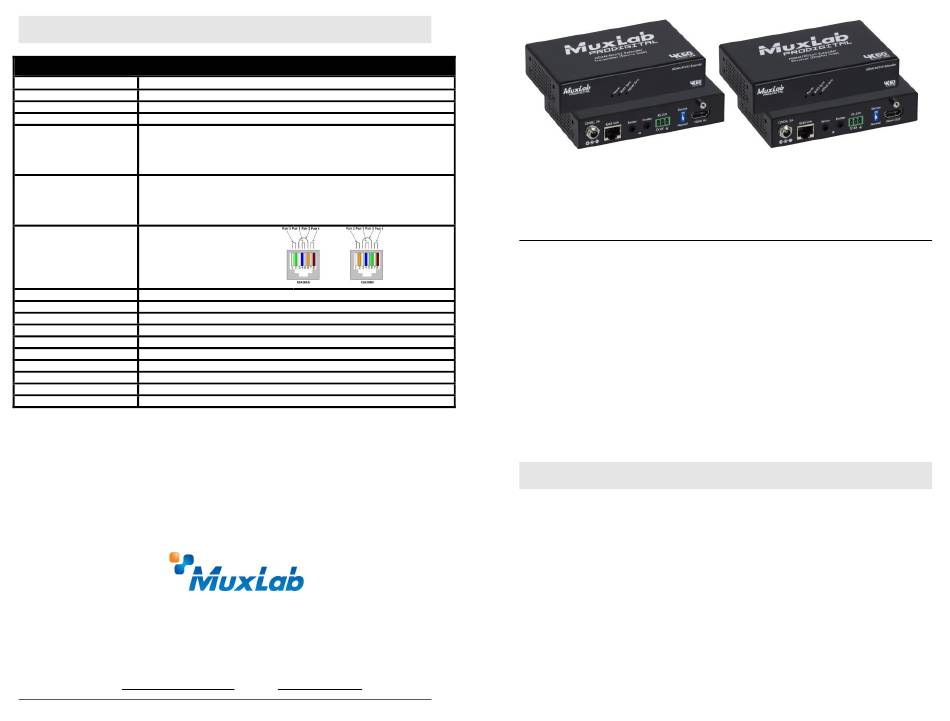

MuxLab 500459 Quick Installation Manual

Specifications
Specification Chart
Environment HDMI 2.0
Devices DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops, servers supporting HDMI.
Transmission Transparent to the user
Signals HDMI 2.0 protocol
One (1) HDMI receptacle.
Connectors
One (1) RJ45S for Cat5e/6 unshielded or shielded twisted pair.
One (1) 3-Position Terminal Block for RS232.
Two (2) 3.5mm sockets for IR Sensor & Emitter (carrier-wave).
Cables not included
One (1) 2.1mm locking power connector.
Max. Distance* 4K/60 (4:4:4):
1080p:
*Based on a maximum length of When installed in an electrically noisy environment, STP cable must be used. Also, cross-
connection reduces the effective distance depending on the grade of twisted cable used.
6.6 ft (2m) of HDMI cable per end
RJ45
RJ45 Pin Configuration
Use EIA/TIA 568 A or B, Pin 1 (R) Pin 2 (T)
straight-through wiring. Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T)
Cable One (1) Category 5e or better twisted pair cables required.
Power Supply One (1) 110-240V/12VDC @ 2A power supply with interchangeable blades.
Transmitter: 10.44 Watts
Power Consumption
Temperature Operating: 0º to 40º C. Storage:-20º to 85º C. Humidity: up to 95% non-condensing.
Enclosure Metal
4.72" x 2.87" x 1.00" (12.0 x 7.3 x 2.5 cm)
Unit Dimensions
Shipping Weight 1.75 lbs (0.79 kg)
Regulatory: FCC, CE, RoHS
Compliance
Warranty 2 years
Order Information 500459 HDMI/RS232 Extender Kit, HDBT, 4K/60 (UPC: 627699004593)
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Cat 5e/6: 131ft (40m)
Cat 5e/6: 230ft (70m)
Receiver: 10.44 Watts
Fax: (514) 905-0589
URL: www.muxlab.com
94-000863-A SE-000863-A
HDMI/RS232 Extender Kit, HDBT, 4K/60
500459
Quick Installation Guide
Overview

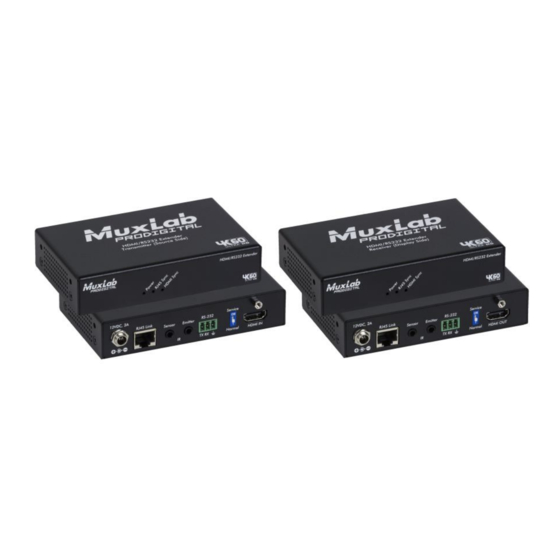

The HDMI/RS232 Extender Kit, HDBT, 4K/60 (500459) allows HDMI equipment to be
connected up to 131ft (40m) at 4K/60 (4:4:4) resolutions, or 230ft (70m) at resolutions
up to 1080p via one (1) Cat 5e/6 unshielded twisted pair cable in a point-to-point
configuration. The unit supports RS232 and bidirectional IR pass through transmission
for end device remote control. This product supports PoC, allowing the transmitter to
power the receiver, or the receiver to power the transmitter. The kit includes one (1)
transmitter, one (1) receiver, one (1) IR Emitter, one (1) IR sensor and one (1) power
supply.
Applications
Applications include digital signage, commercial and residential AV systems, classroom
projector systems, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
end panels above.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) length of Cat 5e/6 (or higher) grade UTP cable to the
RJ45 LINK connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI
compliant cable.
4b. Connect one (1) Cat 5e/6 cable, coming from the Transmitter, to the RJ45
