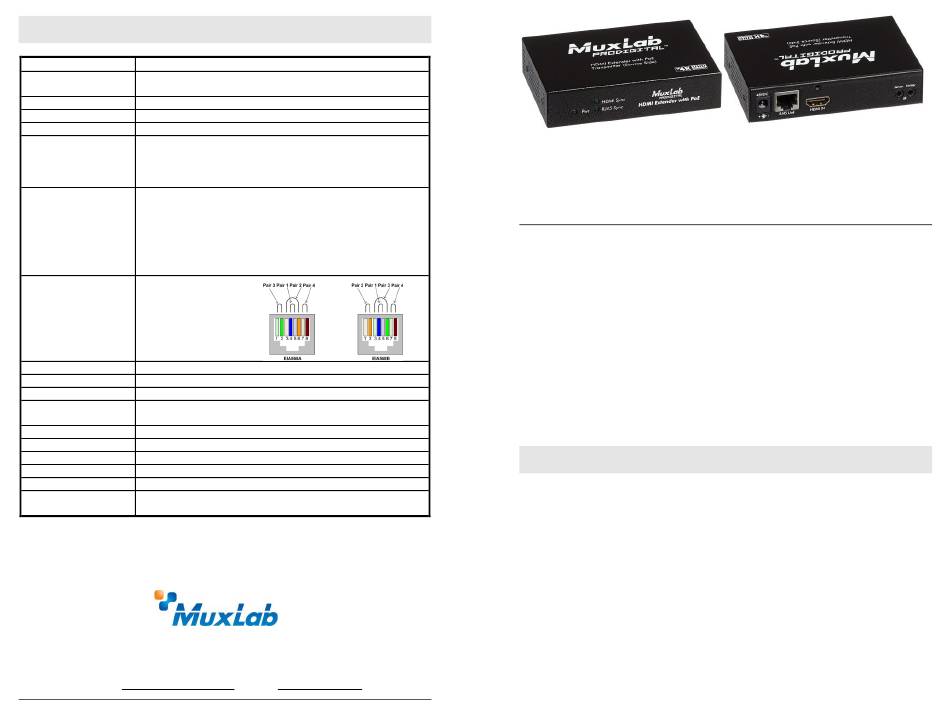

MuxLab 500451-PoE Quick Installation Manual

Specifications

Environment HDMI 1.4a
Devices DVDs, Blu-ray players, projectors, monitors, TVs, PCs, laptops,
servers supporting HDMI.
Transmission Transparent to the user
Bandwidth 340 MHz
Signals HDMI 1.4a protocol
Connectors One (1) HDMI receptacle.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
Two (2) 3.5mm jacks for IR emitter and sensor
Note: HDMI cables not included.
Maximum Distance 4K/30 (4:4:4):
4K/60 (4:2:0):
Based on a maximum
1080p:
length of 6.6 ft (2 m) of
1080p Deep Color:
HDMI cable per end.
Note: When installed in an electrically noisy environment, an STP
cable must be used. Also, cross-connection reduces the effective
distance depending on the grade of twisted cable used.
RJ45 Pin RJ45 Link
Pin 1 (R) Pin 2 (T)
Configuration
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
Cable One (1) Cat 5e/6 or better twisted pair cables required
Power Supply One (1) 110-240V/48VDC 0.5A power supply
Power Consumption Transmitter: 1.6 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
4.40" x 3.00" x 1.00" (11.2 x 7.6 x 2.5 cm)
Dimensions
Weight 1.4 lbs (0.6 kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 2 years
Order Information 500451-POE
500451-POE-RX HDMI Extender Receiver, PoE, HDBT, UHD-4K
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Cat 5e/6: 131ft (40m)
Cat 5e/6: 131ft (40m)
Cat 5e/6: 230ft (70m)
Cat 5e/6: 230ft (70m)
Receiver: 3.2 Watt
Storage: -20° to 85°C
Flammability: 94V0
HDMI Extender Kit, PoE, HDBT, UHD-4K
Fax: (514) 905-0589
URL: www.muxlab.com
94-000804-B SE-000804-B
HDMI Extender Kit, PoE, HDBT, UHD-4K
,
500451-PoE 500451-PoE-RX
(Kit)
Quick Installation Guide
Overview

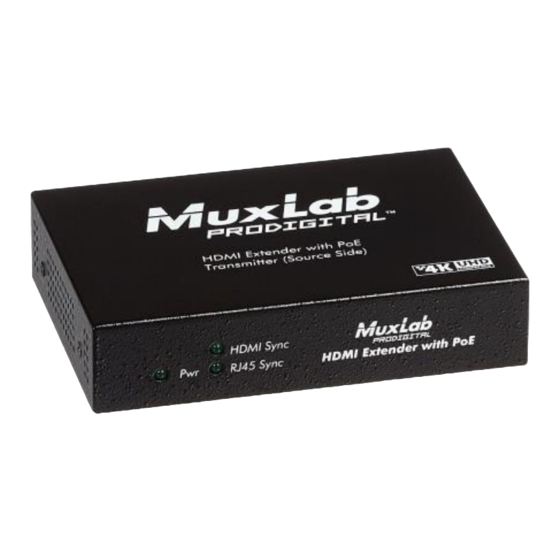

The HDMI Extender Kit, PoE, HDBT, UHD-4K (500451-PoE) allows HDMI
equipment to be connected up to 131ft (40m) @ 4K/30 (4:4:4) or 4K/60 (4:2:0)
resolution, or up to 230ft (70m) @ 1080p Deep Color via one (1) Cat 5e/6 unshielded
twisted pair cables in a point-to-point configuration. The kit comes with one (1)
Transmitter and one (1) Receiver as well as an IR Emitter and IR Sensor for remote
control applications. The 500451-PoE-RX is the receiver portion of the kit and is used
in conjunction with MuxLab's HDBaseT Matrix Switches. For installation instructions,
please refer to the Matrix Switch Installation Guide.
Applications
Applications include commercial and residential AV systems, classroom projector
systems, digital signage, boardroom systems, collaborative PC systems, and medical
information systems.
Installation
1. Identify the connectors on the Transmitter and Receiver as indicated on the product
labels.
2. Verify that the distance between the HDMI Transmitter and Receiver is within
MuxLab specifications (see Specifications table).
3. To install the Transmitter:
3a. Connect the Transmitter to the HDMI video source with an HDMI compliant
cable.
3b. Connect one (1) Cat 5e/6 (or higher) grade UTP cable to the RJ45 LINK
connector on the Transmitter.
4. To install the Receiver:
4a. Connect the Receiver to the HDMI display equipment with an HDMI
compliant cable.
Note: When used with MuxLab's HDBaseT Matrix Switches, please consult the
Matrix Switch Installation Guide.
(Receiver only)
