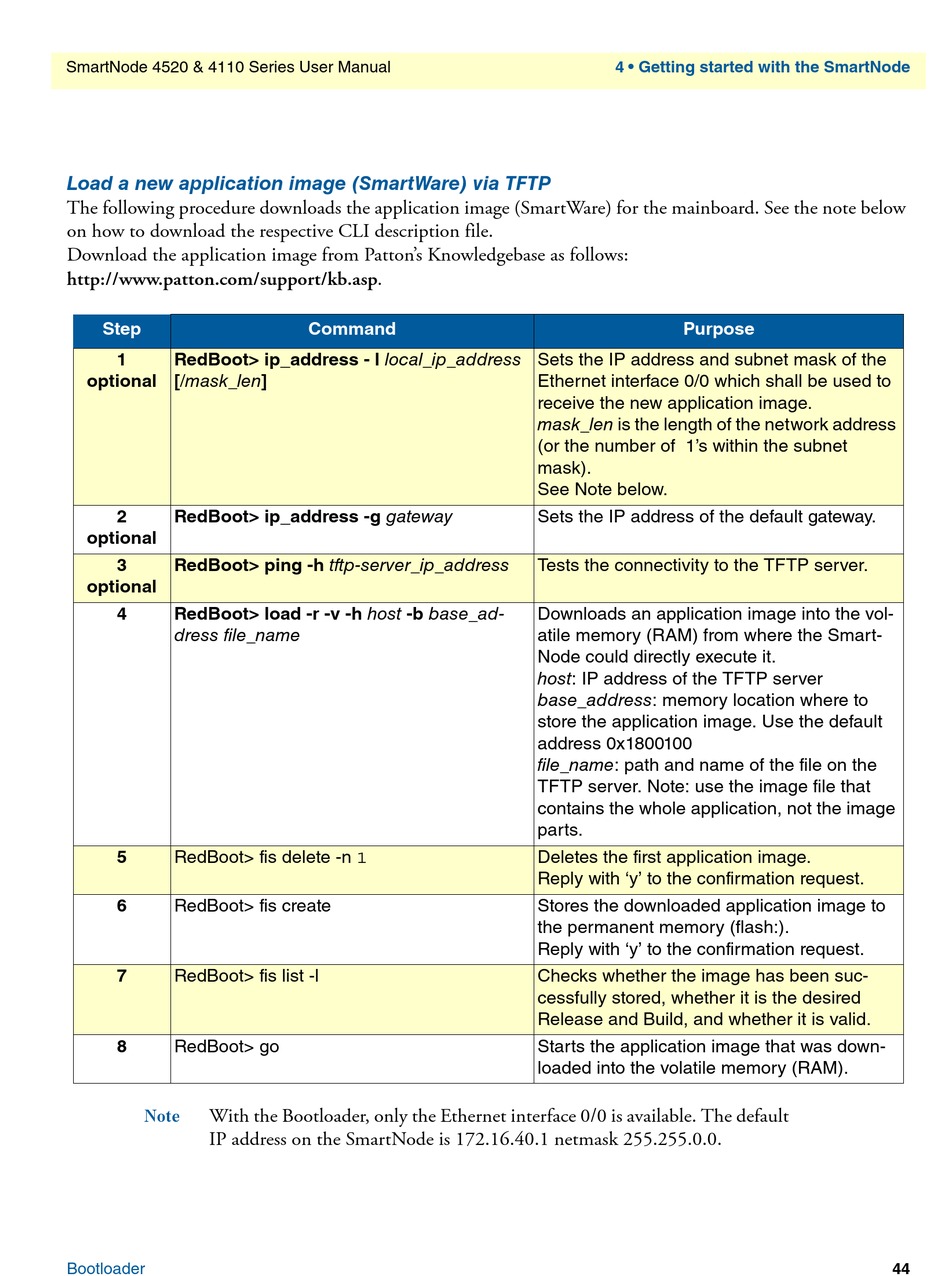

Load a new application image (SmartWare) via TFTP

The following procedure downloads the application image (SmartWare) for the mainboard. See the note below
on how to download the respective CLI description file. 
Download the application image from Patton's Knowledgebase as follows:
http://www.patton.com/support/kb.asp.
Step
1 RedBoot> ip_address - l local_ip_address
optional [/mask_len]
2 RedBoot> ip_address -g gateway
optional
3 RedBoot> ping -h tftp-server_ip_address
optional
4 RedBoot> load -r -v -h host -b base_ad-
dress file_name
5 RedBoot> fis delete -n 1
6 RedBoot> fis create
7 RedBoot> fis list -l
8 RedBoot> go
Note
With the Bootloader, only the Ethernet interface 0/0 is available. The default
IP address on the SmartNode is 172.16.40.1 netmask 255.255.0.0.
Bootloader
Command
4 • Getting started with the SmartNode

Purpose
Sets the IP address and subnet mask of the
Ethernet interface 0/0 which shall be used to
receive the new application image.
mask_len is the length of the network address
(or the number of 1's within the subnet
mask).
See Note below.
Sets the IP address of the default gateway.
Tests the connectivity to the TFTP server.
Downloads an application image into the vol-
atile memory (RAM) from where the Smart-
Node could directly execute it.
host: IP address of the TFTP server
base_address: memory location where to
store the application image. Use the default
address 0x1800100
file_name: path and name of the file on the
TFTP server. Note: use the image file that
contains the whole application, not the image
parts.
Deletes the first application image.
Reply with 'y' to the confirmation request.
Stores the downloaded application image to
the permanent memory (flash:).
Reply with 'y' to the confirmation request.
Checks whether the image has been suc-
cessfully stored, whether it is the desired
Release and Build, and whether it is valid.
Starts the application image that was down-
loaded into the volatile memory (RAM).
