SmartNode 4110 Series router

The SmartNode 4110 Series are compact VoIP Gateways that support two to eight VoIP calls and various com-
binations of FXS and FXO ports (see
The following base models (each equipped with one 10/100Base-T Ethernet port) are available:
•
SmartNode 4112 (2 VoIP calls)
•
SmartNode 4114 (4 VoIP calls)
•
SmartNode 4116 (6 VoIP calls)
•
SmartNode 4118 (8 VoIP calls)
SmartNode Series VoIP routers overview
figure 5).
V o
ic e
P o
r ts
0 /3
0 /2
0 /1
F X
S
0 /0

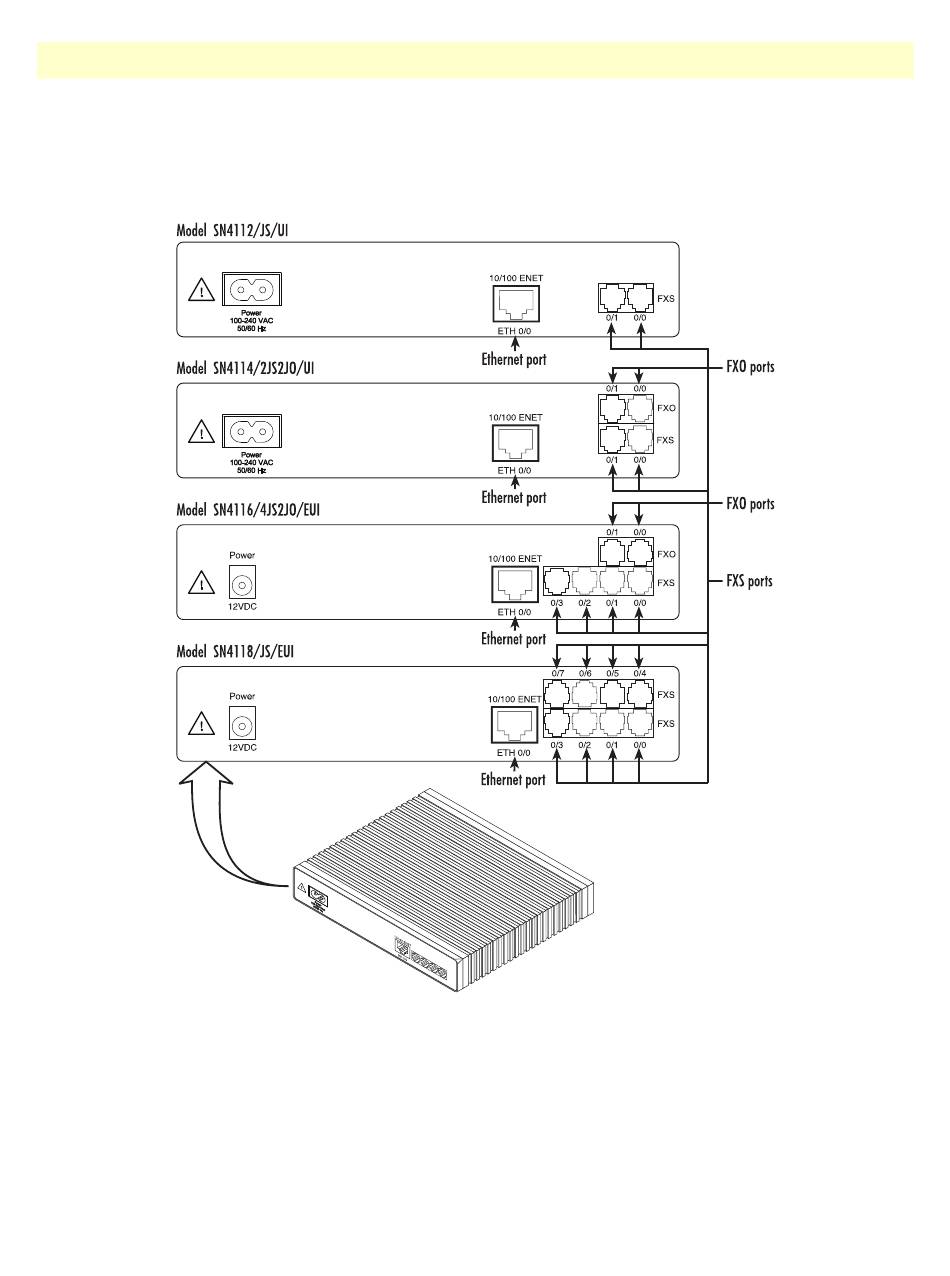

Figure 5. Examples of SN4110 Series rear panels
1 • General information
16
