SmartNode Series VoIP routers overview

The SmartNode 4520 and 4110 Series VoIP Gateway Routers (see
rity, and Quality of Service for up to 8 transparent voice and FAX calls over any IP or PSTN network. Leverage
low-cost IP services with packet-voice for complete branch office voice and data connectivity.
The SmartNode 4520 Series Gateway Routers, equipped with two 10/100Base-T Ethernet ports provide;
voice over IP (VoIP) and Internet telephony plus Internet access routing, VPN and firewall functions, and
extensive Quality of Service (QoS) functions.
The SmartNode 4110 Series Media Gateways, equipped with a single 10/100Base-T Ethernet port that provide
VoIP and Internet telephony.
The SmartNode VoIP Gateways and Gateway-Routers perform the following major functions:
•
Voice over IP and local switching via a combination of 2 to 8 analog phone ports (FXS) and 2 to 4 analog
line ports (FXO).
•
Standard compliant VoIP conversion in accordance with SIP and H.323 protocols.
•
Internet access and IP Routing (4520 Series only) with IP Quality of Service (QoS) support for mixed voice
and data traffic.
Section "SmartNode 4520 Series router"
Series. Section "SmartNode 4110 Series router"

SmartNode Series VoIP routers overview

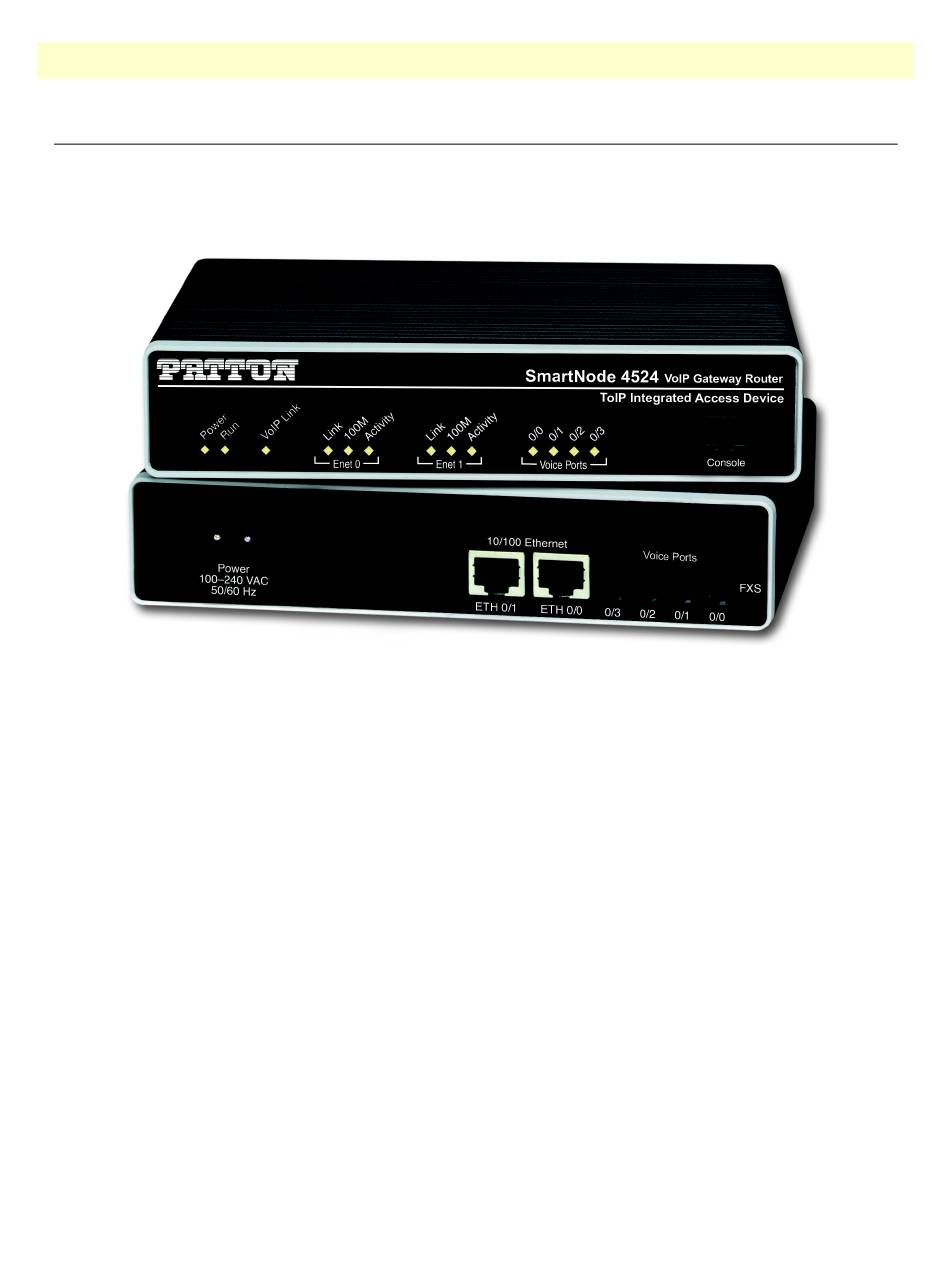

Figure 1. SmartNode Router (SmartNode 4524 shown)
on page 12 provides more information on the SmartNode 4520
on page 16 describes the SmartNode 4110 Series.
1 • General information
figure 1) combine IP routing, VPN/Secu-
