Dahua Technology ITC1652 Construction Manual page 4

All-in-one enforcement camera

Table of Contents

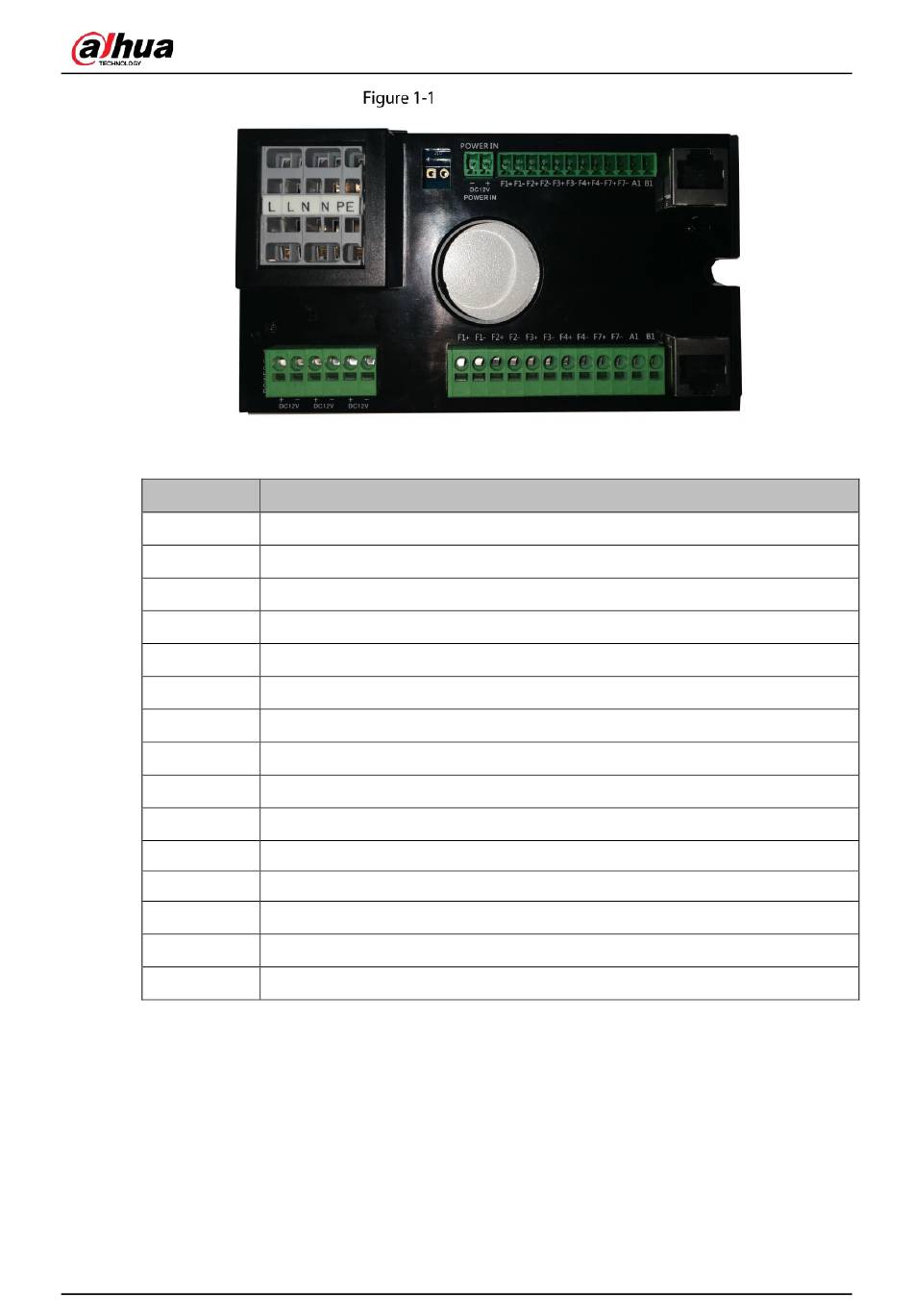

Table 1-2 Interfaces of the terminal block

Pin No.

Description

F1+

Flashing light 1 triggers output F1+

Flashing light 1 triggers output F1-

F1–

Flashing light 2 triggers output F2+

F2+

Flashing light 2 triggers output F2-

F2–

Flashing light 3 triggers output F3+

F3+

Flashing light 3 triggers output F3-

F3–

Flashing light 4 triggers output F4+

F4+

Flashing light 4 triggers output F4-

F4–

Strobe light synchronous output F7+

F7+

Strobe light synchronous output F7–

F7–

RS-485-A1

RS-485-B1

Live wire, 220 VAC

Neutral wire, 220 VAC

Grounding wire, 220VAC

Terminal blocks
