11. Dimensions with motor
unit
30 | 180R9264 | AQ115586503043en-000903
Installation, Operation and Maintenance APP 11-13

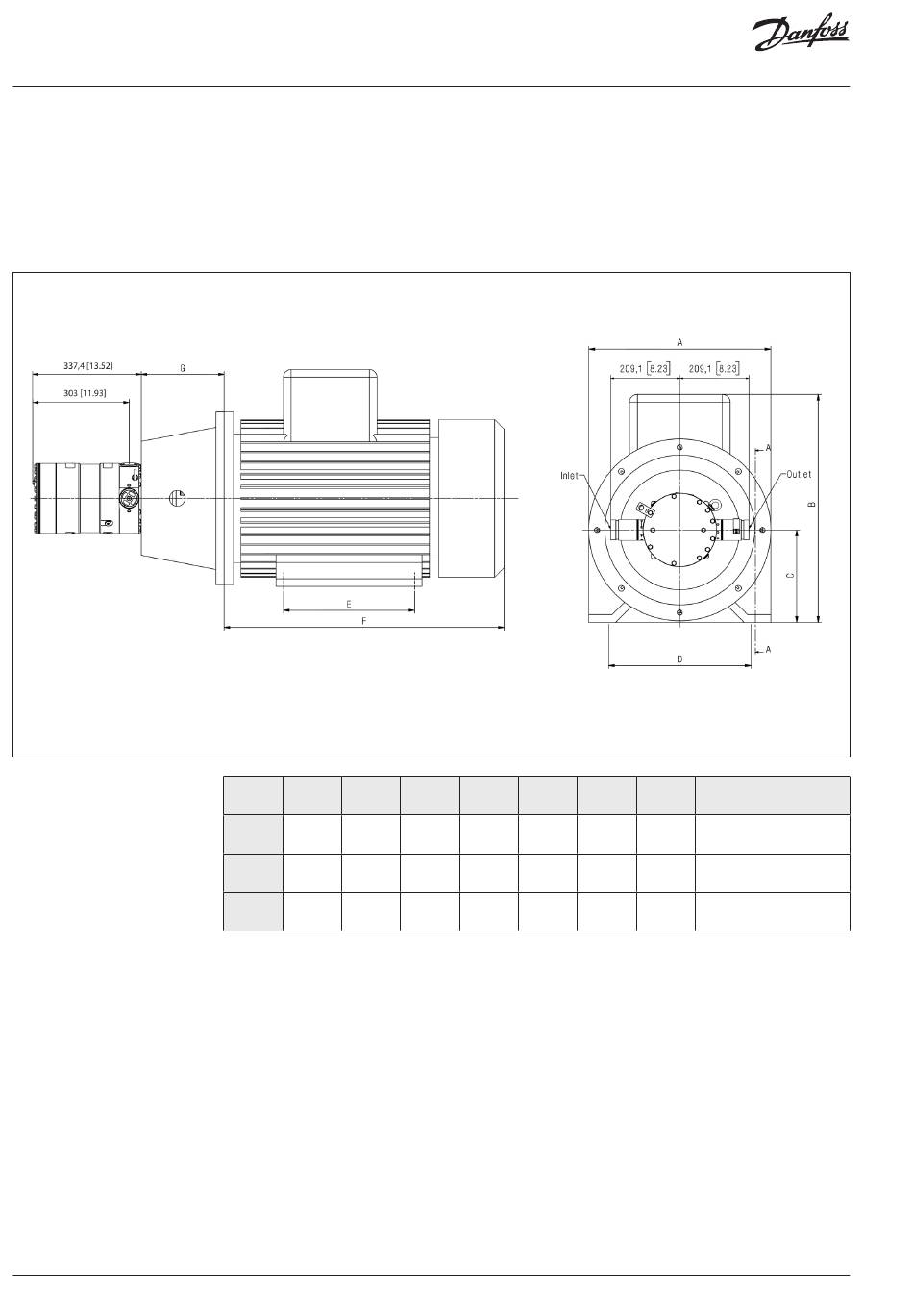

11.3 APP 11.0-13.0

The examples of assemblies with motor are only
for IEC motors and couplings. Please make sure
to check required motor power and dimensions
when selecting size of pump and motor. For ad-
vice and calculation tool, please contact Danfoss.
A mm B mm
Pump
(inch) (inch)
350 473
APP 11
(13.78) (18.62)
400 513
APP 11
(15.75) (20.20)
450 561
APP 13
(17.72) (22.09)
C mm D mm E mm
(inch) (inch) (inch)
180 279 241
(7.09) (10.98) (9.49)
200 318 305
(7.87) (12.52) (12.01)
225 356 286
(8.86) (14.02) (11.26)
F mm G mm
IEC Electric motor
(inch) (inch)
578 204
22 kW, IEC 180L-4
(22.76) (8.03)
659 204
30 kW, IEC 200L-4
(25.94) (8.03)
667 234
37 kW, IEC 225S-4
(26.26) (9.21)
