13. Installing the LED Luminaire Module (Optional)

WARNING: Before starting installation, disconnect the power by turn-
ing off the circuit breaker or removing the fuse at fuse box.
NOTE: If you do not plan to install the luminaire module with your fan
at this time, skip to Step 4.
1. Remove 1 of the 3 screws from the outer perimeter of the adapter
plate and keep it for future use. Loosen the other 2 screws (Do not
remove).
2. Raise and hold the LED luminaire module close to the adapter plate
and proceed to secure the wire connections. Connect the white wire
connector from the luminaire module to the white wire of the fan.
Follow the same procedure with the black wire connectors (Fig. 21).
3. Tuck connections neatly into adapter plate. Place the luminaire
module key holes over the 2 screws previously loosened from the
adapter plate. Turn luminaire module until it locks in place at the
narrow section of the key holes. Secure by tightening the 2 screws
previously loosened and the one previously removed (Fig. 23).
4. Raise glass shade up against the luminaire module, and secure it to
fan by turning glass shade clockwise until snug. Do not overtighten.
FR - W 1 8 1 2 ; FR -W 1 8 1 3

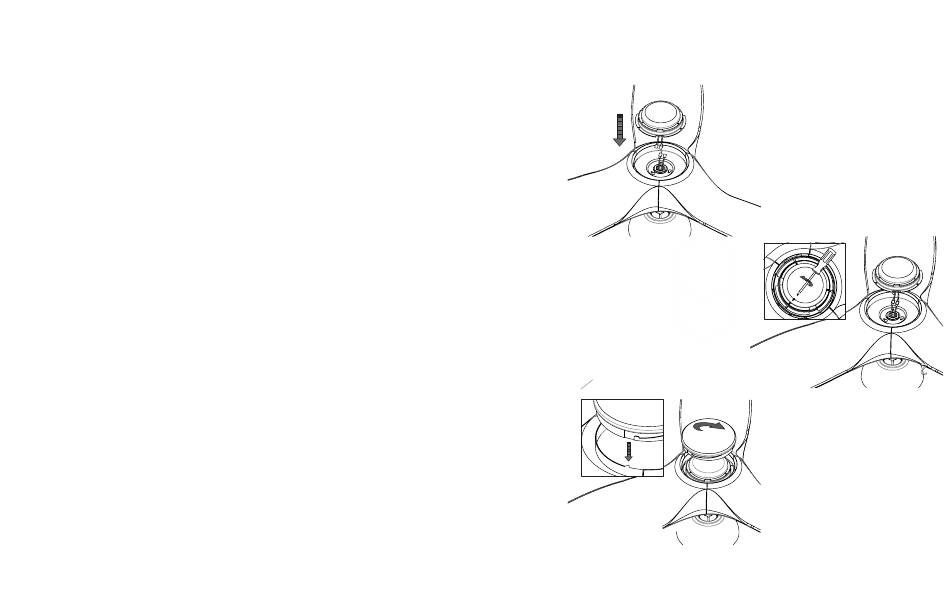

FIGURE 21
