6. Hanging the Fan (cont.)
1. Take out the set screw located in the hanger ball, lower the
hanger ball and remove the cross pin. Remove the hanger ball
from the hanger ball/downrod assembly (FIG. 13).
2. Remove the clevis pin and cotter pin, and loosen the two collar
screws from the motor collar (FIG. 13).
3. Carefully feed the motor wires and safety cable up through the
downrod. Thread the downrod into the collar.
4. Align the holes of downrod and collar and insert the cotter pin
and clevis pin. Tighten the two collar screws (FIG. 13).
WARNING: Failure to properly install the cotter pin and/or tighten
the screws could result in the fan loosening and possibly falling.
12
8
Cotter Pin

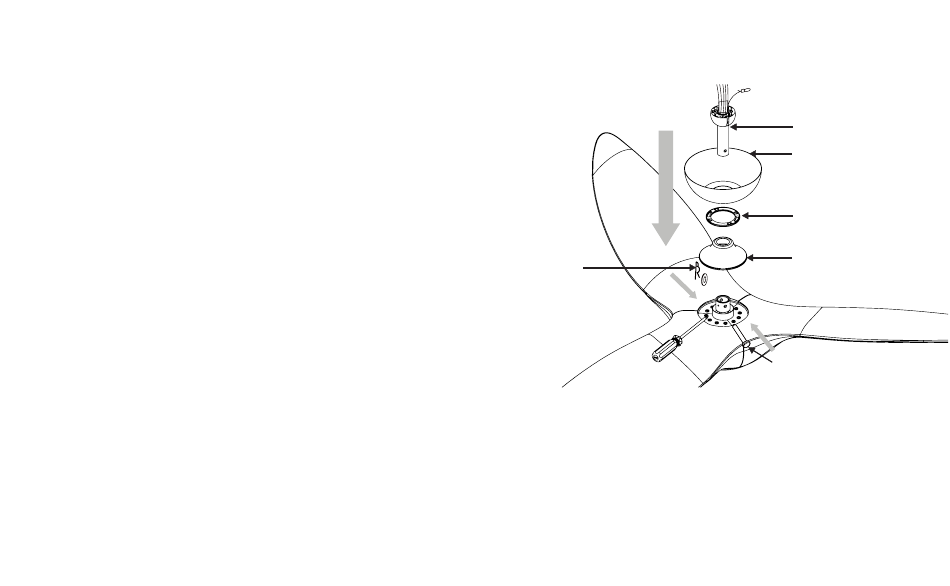

FIGURE 13
Downrod Assembly
Canopy
Canopy Ring
Coupling Cover
Clevis Pin
